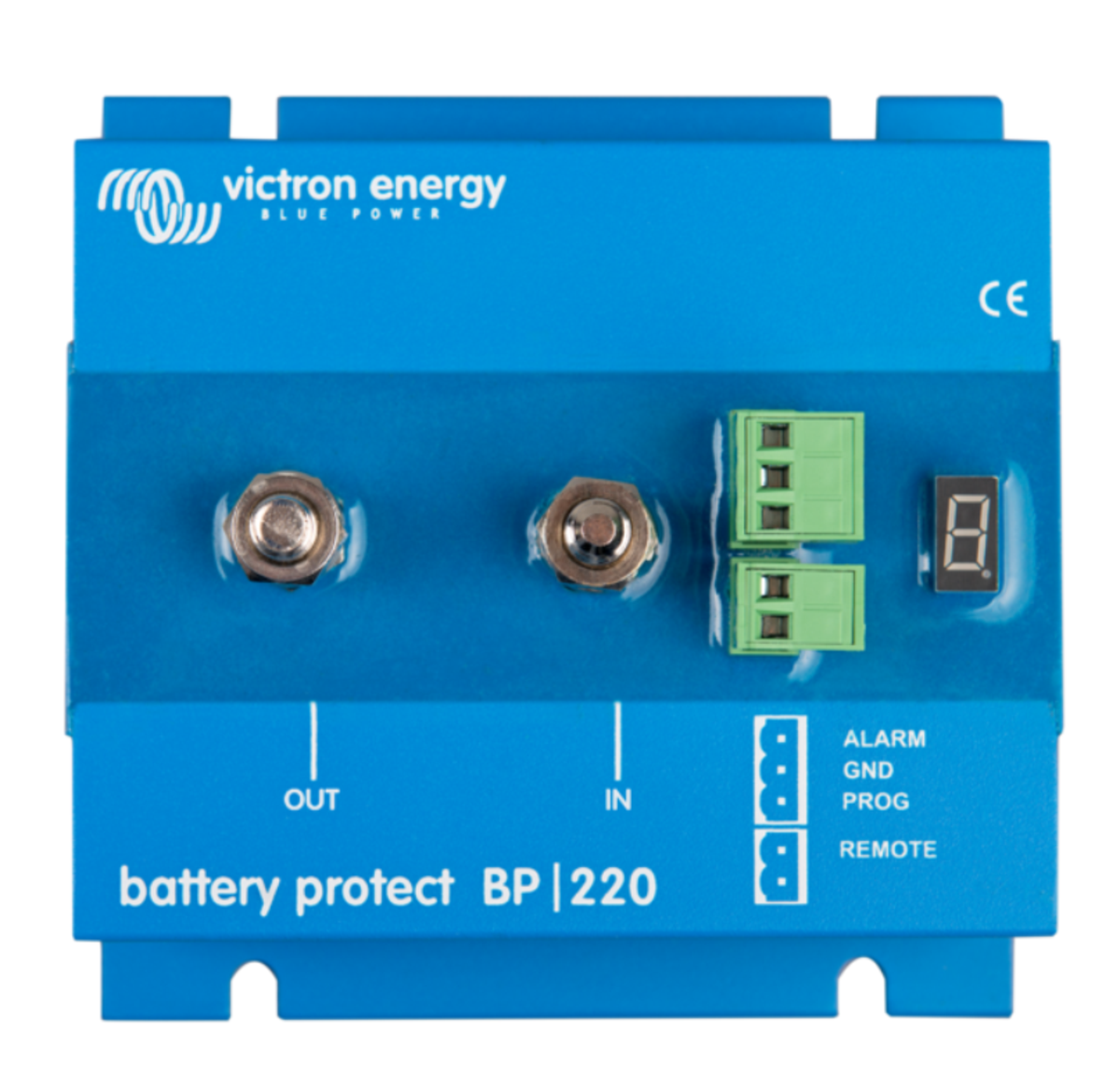

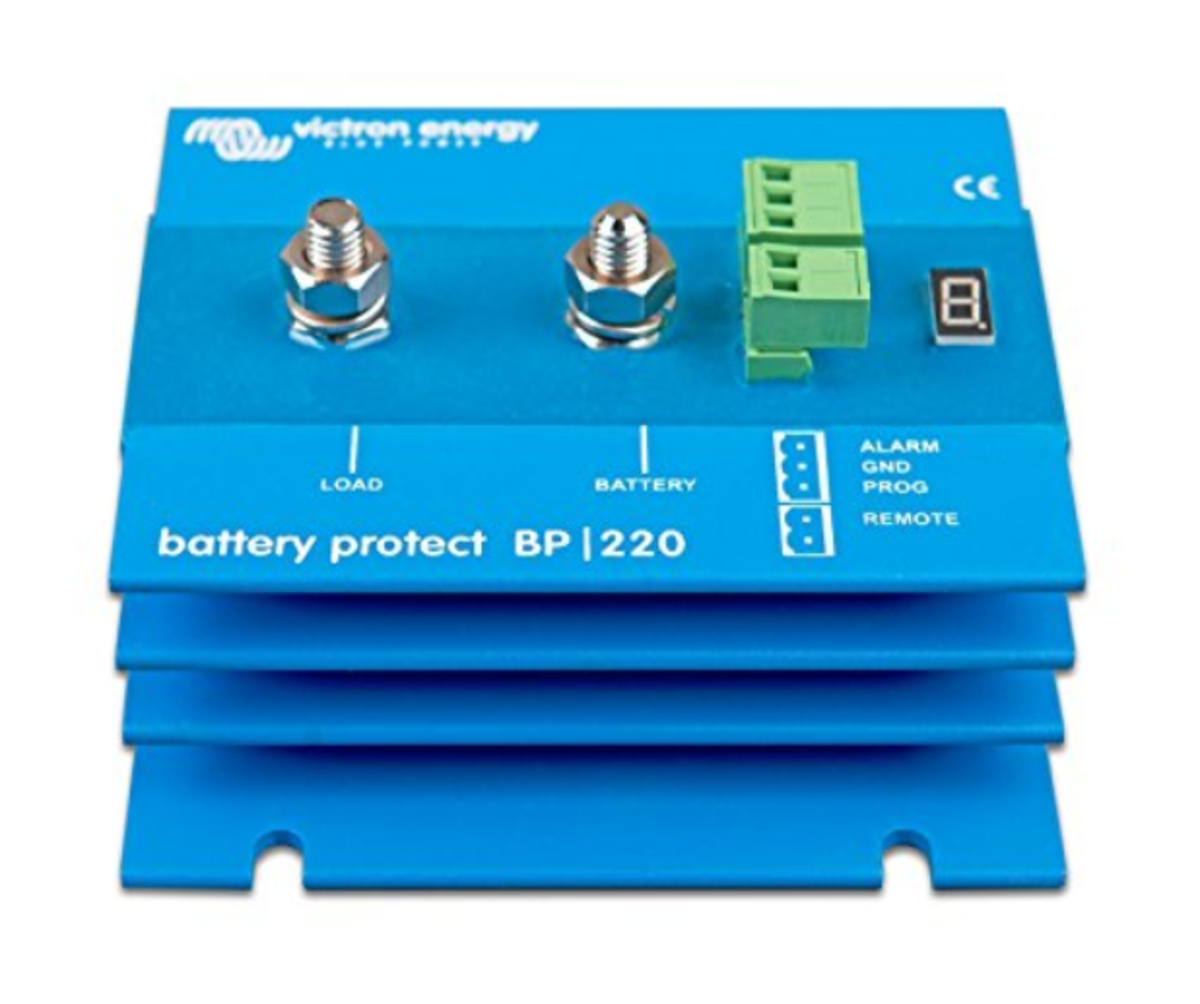

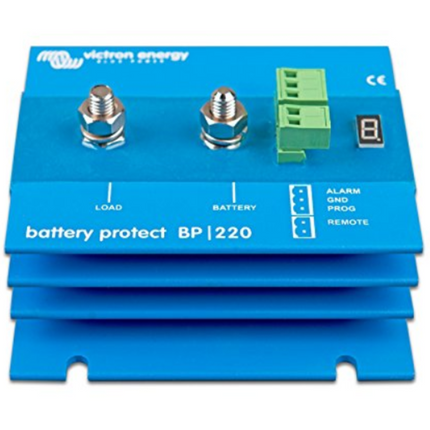

The Victron Battery Protect; 12/24V 220A is a versatile device that safeguards batteries by disconnecting non-essential loads before damage or power depletion, with features like auto-ranging, easy programming, and support for Li-ion batteries.

Product Features:

• Victron Battery Protect disconnects non-essential loads before battery damage occurs or when there is insufficient power to crank the engine.
• The system automatically detects whether the voltage is 12V or 24V.
• It can be programmed to engage or disengage at different voltages using a seven-segment display.
• When controlled by a VE.Bus BMS, it supports Li-ion batteries and can function as a charge interrupter.
• It disconnects the load when the DC voltage exceeds 16V or 32V.
• It uses MOSFET switches to eliminate sparks, making the unit ignition proof.
• The alarm is activated 12 seconds after a drop in battery voltage, avoiding false alarms during engine startup.

Application Areas:

• Battery Management Systems
• High-Voltage Power Systems
• Off-Grid Energy Systems
• Vehicle Power Solutions
• Marine Power Systems
• Electric Vehicle Applications
• Energy Storage Systems
• Industrial Energy Systems

In the Box:

• 1x Victron BPR000220400 Battery Protect

Documents:

Victron Battery Protect - Datasheet

Videos:

Introduction to the Victron Energy Battery Protect How to program the Battery Protect
