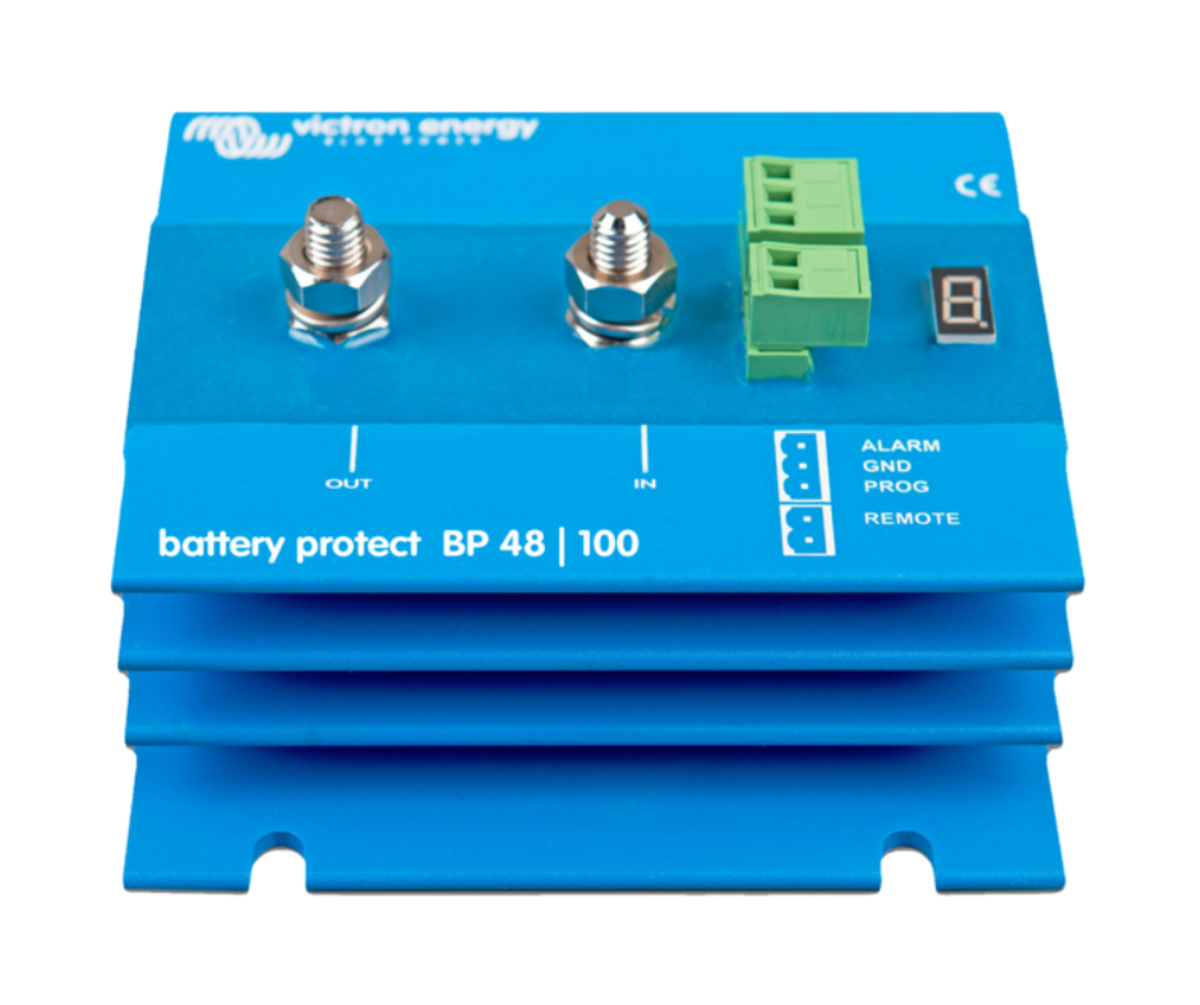

The Victron Battery Protect; 48V 100A is a smart device that disconnects the battery from non-essential loads before it is fully discharged, preventing damage to the battery. It also disconnects the battery before it has insufficient power left to crank the engine, ensuring the vehicle can still start.

Product Features:

• To safeguard sensitive loads, the Battery Protect disconnects the load whenever the DC voltage exceeds 64 V.
• Victron Battery Protect disconnects non-essential loads before battery damage occurs or when there is insufficient power to crank the engine.
• It can be programmed to engage or disengage at different voltages using a seven-segment display.
• When controlled by a VE.Bus BMS, it supports Li-ion batteries and can function as a charge interrupter.
• It disconnects the load when the DC voltage exceeds 16V or 32V.
• It uses MOSFET switches to eliminate sparks, making the unit ignition proof.
• The alarm is activated 12 seconds after a drop in battery voltage, avoiding false alarms during engine startup.

Application Areas:

• Battery Management Systems
• High-Voltage Power Systems
• Off-Grid Energy Systems
• Vehicle Power Solutions
• Marine Power Systems
• Electric Vehicle Applications
• Energy Storage Systems
• Industrial Energy Systems

In the Box:

• 1x Victron BPR048100400 Battery Protect

Documents:

Victron Battery Protect - Datasheet

Videos:

Introduction to the Victron Energy Battery Protect How to program the Battery Protect
