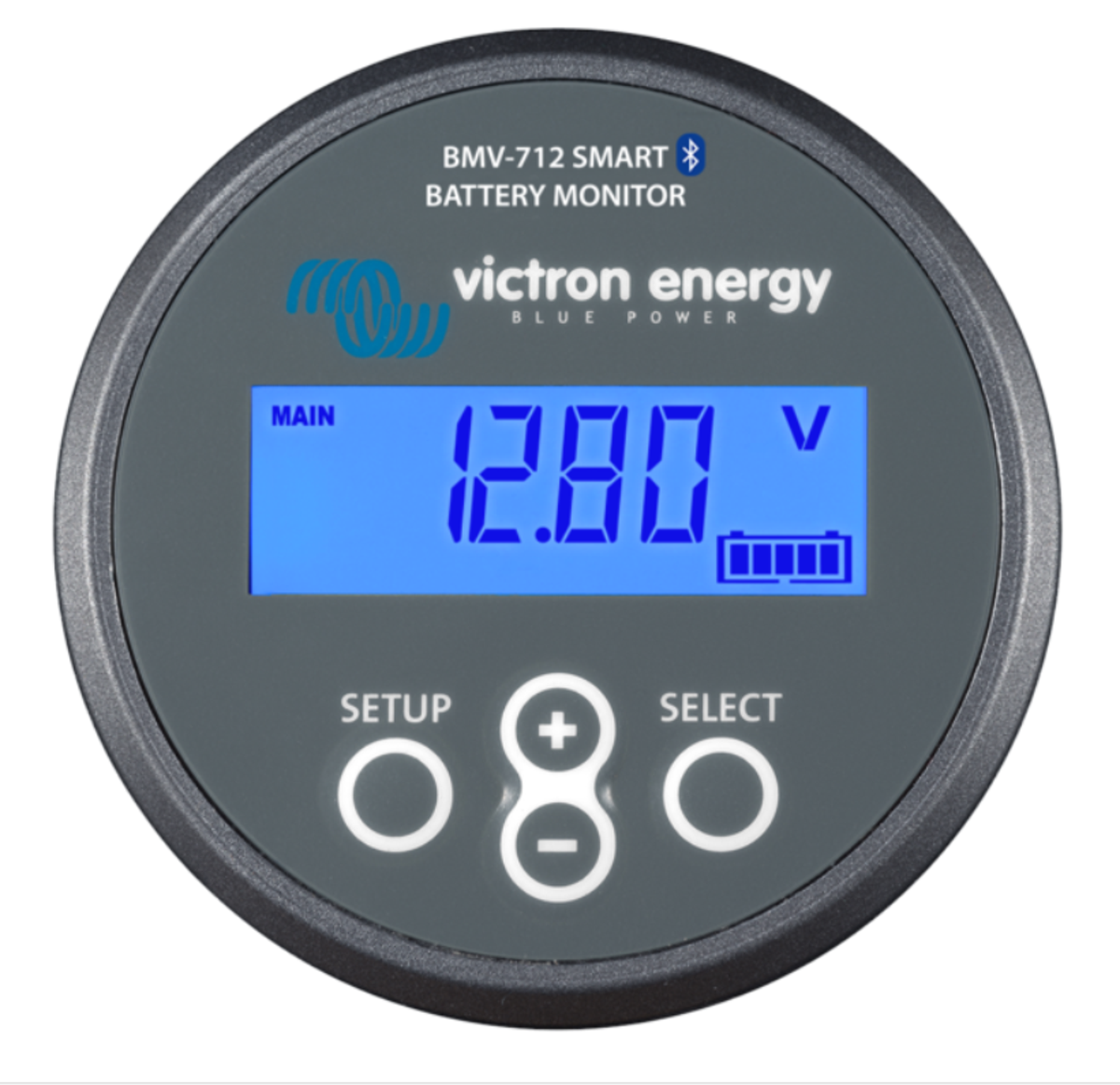

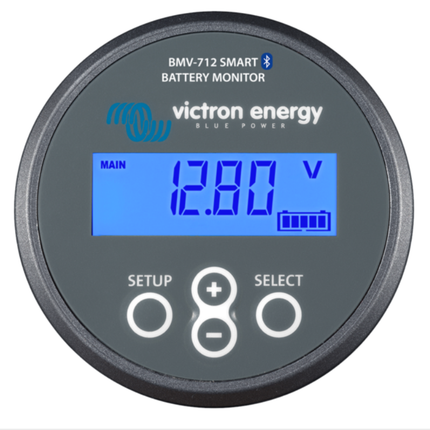

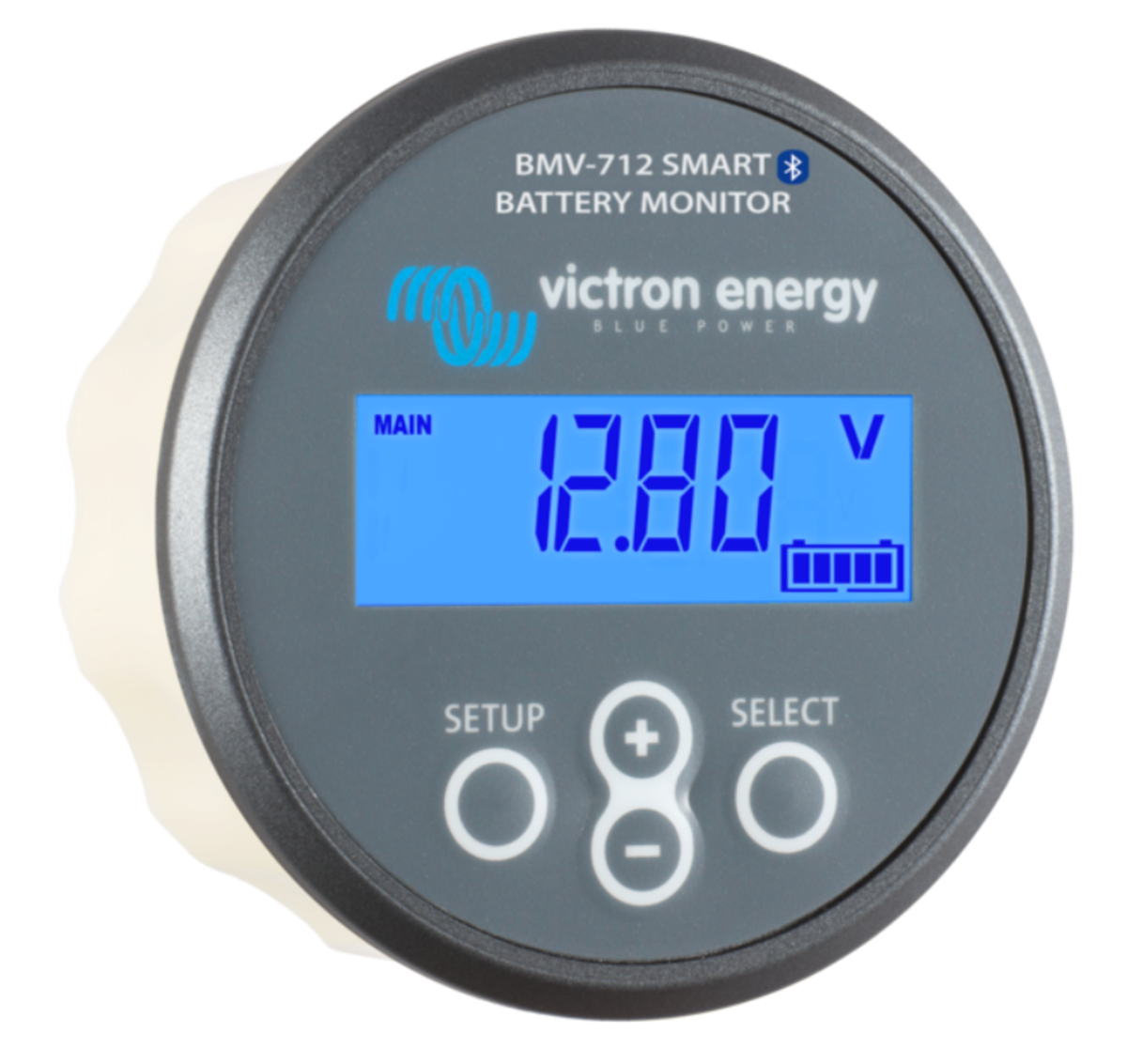

Victron BMV Smart Battery Monitor; Dual Sensor; Bluetooth, helps to monitor battery voltage, current, power, ampere-hours consumed and state of charge.
Seamless Bluetooth Integration
- Equipped with built-in Bluetooth technology, the BMV Smart aligns with the IoT era, fostering wireless communication among Victron Energy products for simplified system installation and optimized performance.
- Access the Victron Bluetooth app on compatible devices to:
- Personalize settings
- Monitor critical data on a single screen
- Review historical data
- Easily update software for the latest features
Effortless Installation

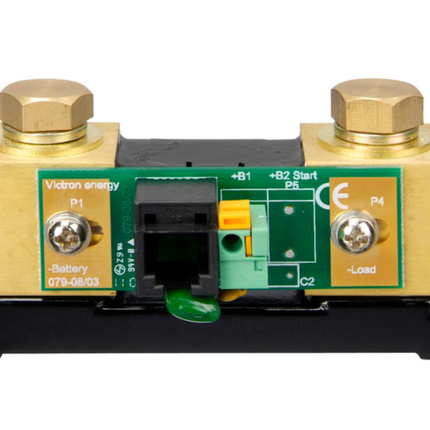

- All electrical connections are streamlined through the quick connect PCB on the current shunt.
- Includes essential components like an RJ12 cable (10m) and battery cable with fuse (2m) for straightforward setup.
- Complete package comprises a separate front bezel for square or round display appearance, a securing ring for rear mounting, and necessary screws for front mounting.
Midpoint Voltage Monitoring
- Protects battery banks from potential damage by detecting issues such as a bad cell or battery within series connections through precise midpoint voltage measurements.
- Consider Battery Balancer (BMS012201000) for optimizing service life in series-connected lead-acid batteries.
Ultra-Low Battery Draw
- Remarkably low current consumption: 0.7Ah per month (1mA) @ 12V and 0.6Ah per month (0.8mA) @ 24V.
- Particularly crucial for Li-ion batteries to prevent damage due to low voltage shutdown and subsequent capacity loss.
- Safeguards against increased current draw during alarm situations, ensuring battery safety.
Additional Features
- Monitors battery voltage, current, power, ampere-hours consumed, and state of charge.
- Estimates remaining time at the current discharge rate.
- Customizable visual and audible alarms.
- Programmable relay for managing non-critical loads or activating a generator as needed.

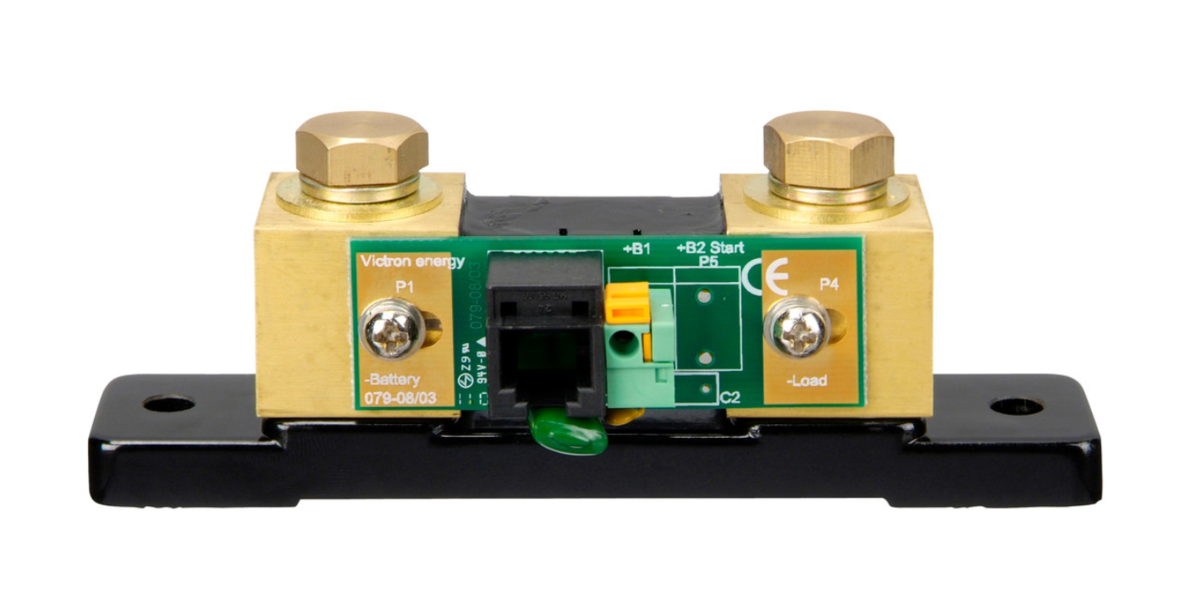

- Includes a 500 Amp quick connect shunt and connection kit.
- Supports shunt selection capability up to 10,000 Amps.
- Features a VE.Direct communication port.
- Stores a comprehensive range of historical events for evaluating usage patterns and battery health.
- Wide input voltage range: 9.5 - 95V.
- High current measurement resolution: 10 mA (0.01A).
- Provides an additional input for measuring voltage (of a second battery), temperature, or midpoint voltage, with corresponding alarm and relay settings.
