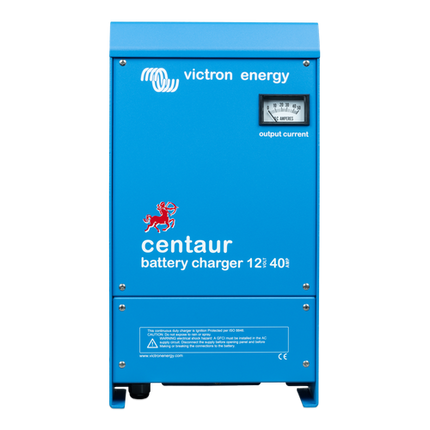

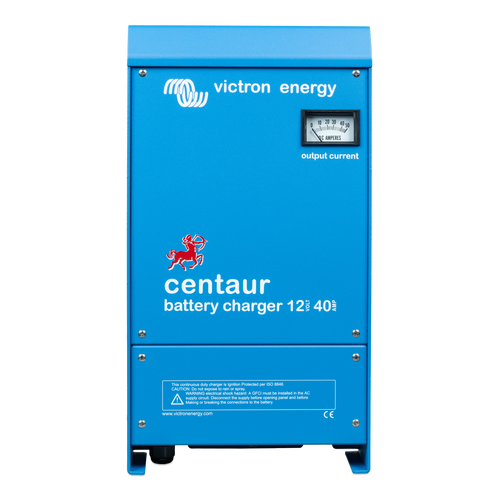

The Victron Centaur Charger; 12V 40 Amp - 3 Outlets delivers uncompromising quality, designed for durability in adverse environments, featuring an aluminium epoxy powder-coated case with stainless steel fixings and a drip shield. They span 12V and 24V models, varying from 16A to 100A, catering to a wide spectrum of applications. Key features include:
Rugged Build:
- Aluminium epoxy powder-coated cases with drip shield and stainless steel fixings ensure resilience against heat, humidity, and salt air.
- Circuit boards are acrylic-coated for maximum corrosion resistance, guaranteeing longevity in adverse conditions.
Temperature Regulation:
- Temperature sensors ensure power components operate within specified limits by automatically reducing output current in extreme environmental conditions.
- An internal temperature sensor is used to compensate the charge voltage with - 2 mV/ºC (- 1 mV/ºF) per cell.
Universal Input:
- Operates seamlessly across a wide 90-265V AC 50/60Hz input voltage range, suitable for both AC-DC and DC-DC operations.
- Accepts input from 90-400V DC supply, ensuring adaptability in diverse power scenarios.
Triple Output:
- Three isolated outputs capable of supplying full output current to simultaneously charge 3 battery banks.
- Utilizes a three-stage charging process with temperature compensation for Flooded Lead-acid, Gel, or AGM batteries.
Worldwide Compatibility:
- Designed to meet CE and UL standards, offering auto-ranging input and maintaining full output power within the specified range globally.
- Suitable for boats worldwide, catering to various market needs without compromise on performance or cost.
The Victron Centaur Charger represents a pinnacle in battery charging technology, offering reliability, adaptability, and comprehensive compatibility for various installations and environments globally.
Documents:
Victron Centaur Charger - Datasheet
