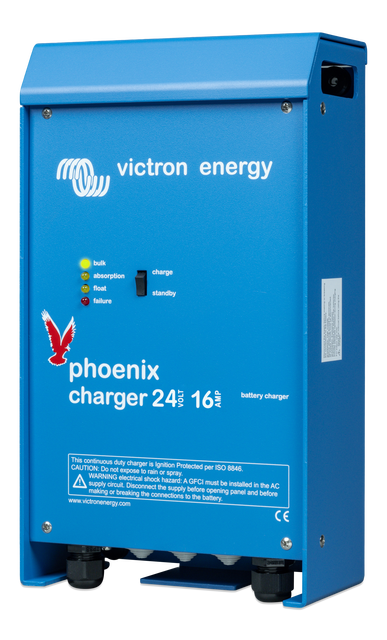

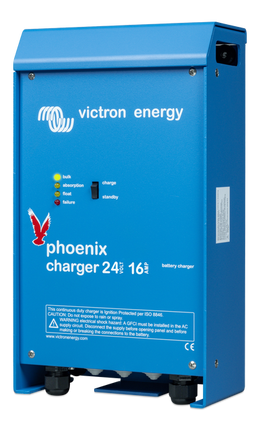

Victron Phoenix Charger, 24V, 16A (2+1) - PCH024016001 is designed for efficient and versatile use, featuring a controlled adaptive battery management system and temperature compensation.

Product Features:

• The adaptive 4-stage charging includes bulk, absorption, float, and storage stages for efficient charging.
• This Victron Phoenix Charger offers dual full-rated outputs plus one 4 Amp output for versatile applications.
• It features an adaptive battery management system that is customizable for different battery types, optimizing charging based on usage.
• The variable absorption time adjusts based on discharges, preventing battery overcharging.
• The BatterySafe mode limits voltage increase to prevent excessive gassing and damage.
• The storage mode reduces float voltage to 2.2 V/cell (13.2 V for 12 V battery) to minimize gassing and corrosion of the positive plates.
• Once a week, the voltage is raised back to the absorption level to 'equalize' the battery, preventing stratification of the electrolyte and sulphation, a major cause of early battery failure.
• The temperature compensation adjusts charge voltage according to battery temperature fluctuations.
• The voltage sense feature compensates for cable resistance, ensuring accurate charge voltage.
• It has a universal input range, accepting 90-265V AC or 90-400V DC supply for versatile operation.
• The computer interface communicates with a computer for customizable parameters via the RS-485 data port. Together with VEConfigure software and the data link MK2-USB, all parameters of the chargers can be customized.

Application Areas:

• This charger is perfect for use in automotive wiring and installations, providing reliable performance.
• It is suitable for various electrical applications, ensuring consistent and dependable connectivity.
• This charger is ideal for industrial environments where durable and robust equipment is required.
• It is versatile enough for general use in any project requiring a high-quality charger.

In the Box:

• 1x Victron Phoenix Charger, 24V 16 Amp (2+1)

Documents:

Victron Phoenix Battery Charger - Specifications Victron Phoenix Charger - User Manual

Videos:

VE Configure 3 basic
