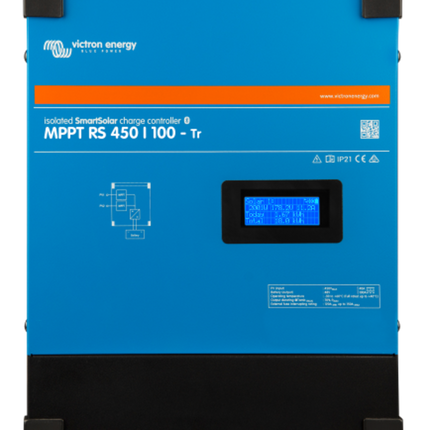

Victron SmartSolar MPPT RS Solar Regulator; 100A 48V / 450V specifically designed for charging 48V DC battery banks using large series-connected PV arrays. Ideal for both large off-grid and grid-connected battery systems.

Features:

Models Available:

• Available in 5.76 kW and 11.52 kW models, supporting a wide 80-450 VDC operating solar voltage input.
• Features 2 or 4 independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters, and active cooling.
• The new metal case design and fully covered electrical connections improve the safety and modernise the presentation of the machines.

MPPT Technology:

• Efficiently charges a 48V battery bank at up to 100A or 200A by connecting to a PV array of 80-450V (Open Circuit Voltage).
• Customizable charge settings cater to various battery chemistries like lead-acid, lithium, and more.

VictronConnect Integration:

• Allows remote control and configuration via Bluetooth through the VictronConnect App.
• Enables setup, management, and real-time monitoring of battery and PV voltage, current, historical data, and trends.

Daisy-Chaining Capability:

• Supports VE.Can bus ports for communication with additional SmartSolar RS & VE.Can MPPT units.
• Linked units synchronize charging behavior and can send monitoring data to a GX device over an RJ45 cable.

Remote Monitoring:

• Access information from the SmartSolar RS regulators anytime, anywhere via the Victron Remote Management Portal (VRM) when connected to the internet.
• For remote setups without internet, monitoring may be possible using a GlobalLink 520.

SmartSolar Display:

• User-friendly front panel display provides battery volts, charge current, individual solar array voltages, instantaneous & total figures, unit status, and error codes.

I/O Connections:

• Equipped with programmable relay and options for remote temperature and voltage sensing.
• Accepts various BMS types for charge signals, including the Victron smallBMS.
