Product Description

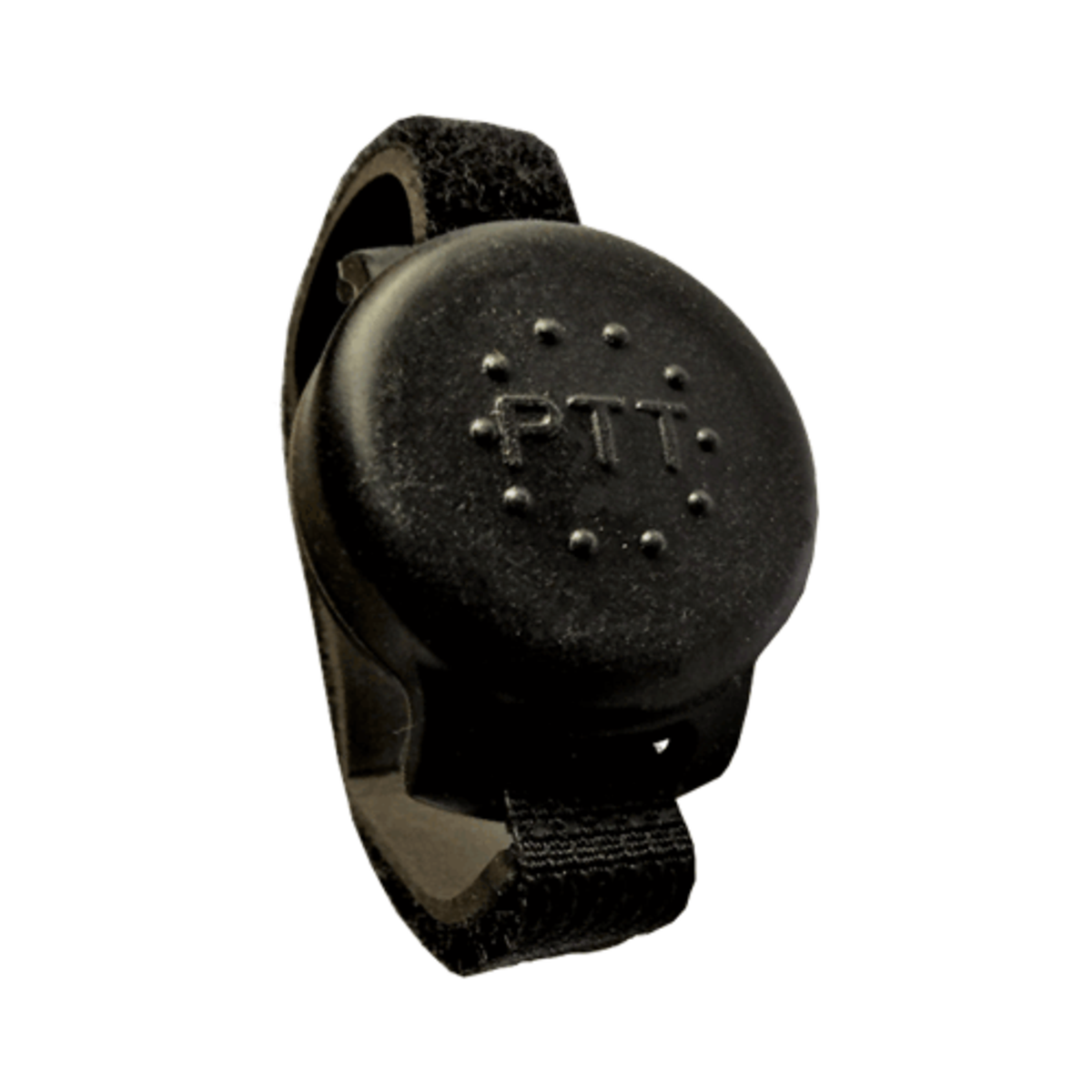

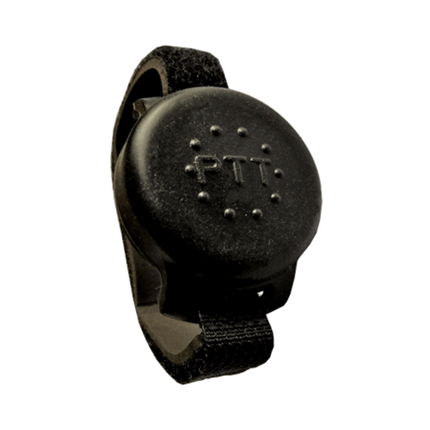

X10DR Wireless PTT Button (POA)
Note: Works with both Elite Plus and Pro Plus model X10DR handsets. (Requires pairing) Additionally, the XWPB is also compatible with previous Elite and Pro models when upgraded to the latest Elite/Pro firmware.
Features:
X10DR Wireless PTT Button (POA) has following features:
Operation:
Power On: Short press the PTT button.
Power Off: Fast triple press PTT button.
The PTT button automatically enters into power-saving mode after 60 seconds of inactivity. Press the PTT button once to go back into normal mode operation. Wake up time is very short.
New XWPB Pairing process:
1/ Enable handset pairing by simultaneously pressing the Volume Up & Down and Emergency (orange) buttons for 5 seconds. Pairing ready tones will sound from the handset.
2/ If a new XWPB, next open ring button and carefully insert CR2032 Li-Ion battery. The pairing process will start immediately and confirmation tones will sound in the handset when the process is complete.
Existing XWPB Pairing process:
If the battery is already installed and you wish to pair it with another handset.
Repeat item 1 above on the new handset. Pairing ready tones will sound. First triple Press PTT button to power OFF the XWPB. Next press the PTT button for 5 seconds to enter into pairing mode. A confirmation tone will sound from the handset when the pairing is complete.
Low battery alert:
Battery life is typically 3-4 months depending on usage. A two beep low battery alert will sound through its paired handset whenever a replacement is required. Batteries can be replaced without the need to re-pair following the procedure.
