X10DR XMAK Multi-Polarity Rack Mount Antenna Kit

X10DR XMAK Multi-Polarity Rack Mount Antenna Kit

Low stock

Brand:
Item ID:
168018122
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
XMAK
Send Request for Quote (RFQ) Discount Offers
X10DR XMAK Multi-Polarity N-Type Rack Mount (2 dBi) Antenna Kit; 5.2m SMA(M) RP - stainless steel right angle mounting bracket and 3 mounting screws.
Regular price $151.00
Regular price $0.00 Sale price $151.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The X10DR XMAK Multi-Polarity Antenna Kit is specifically crafted and optimized for use with the X10DR Secure Wireless Microphone series. Designed for 2400–2500 MHz operation, it delivers reliable omni-directional performance in a compact and rugged form.

Product Features:

  • The XMAK antenna kit is designed for multi-polarity operation, supporting vertical, horizontal, and deflected signal planes.
  • It provides an optimal omni-directional 360-degree radiation pattern for consistent signal coverage.
  • The antenna operates in the 2400–2500 MHz frequency range, ideal for X10DR systems.
  • It includes 5.2 meters of ultra low-loss LMR200 (or equivalent) coaxial cable to minimize signal loss.
  • The cable is terminated with an SMA(M) RP connector for secure and compatible connections.
  • The antenna is ground independent, allowing flexible installation without reliance on a ground plane.

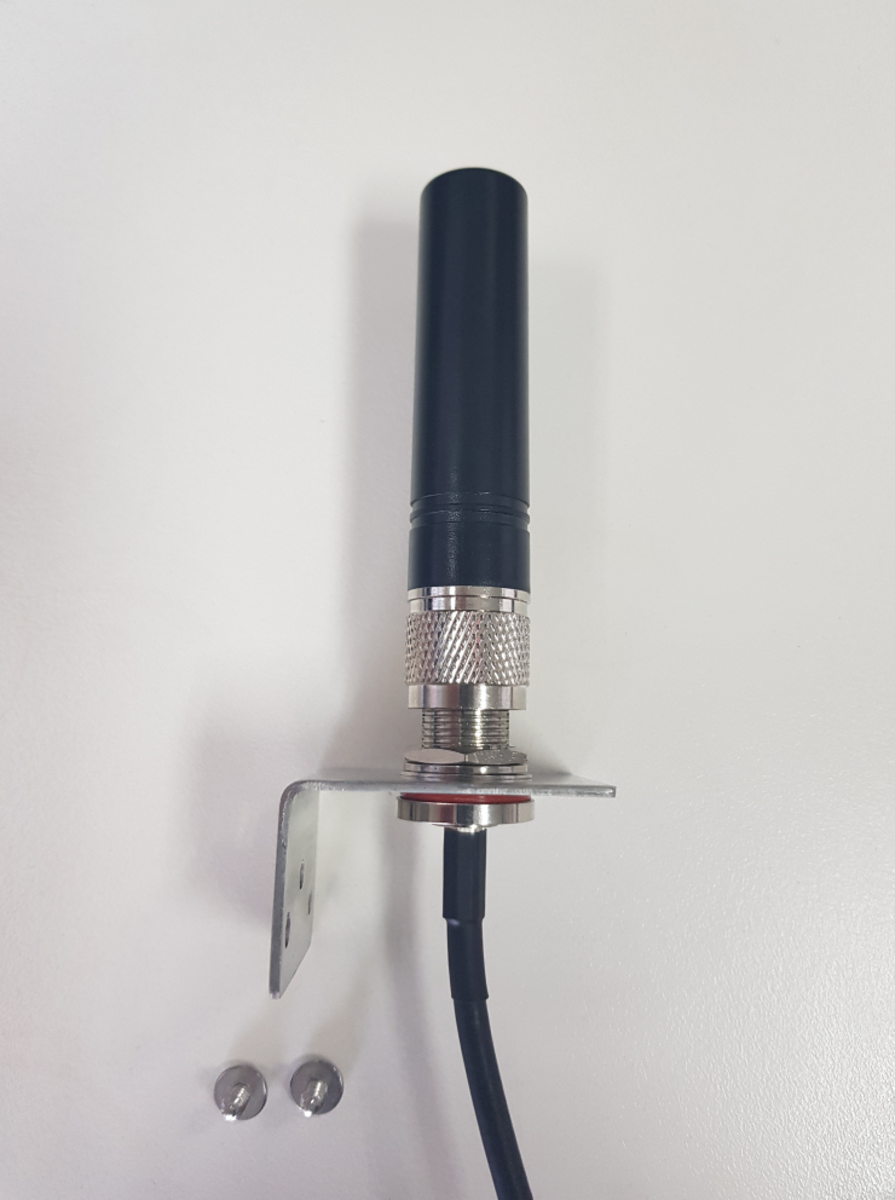

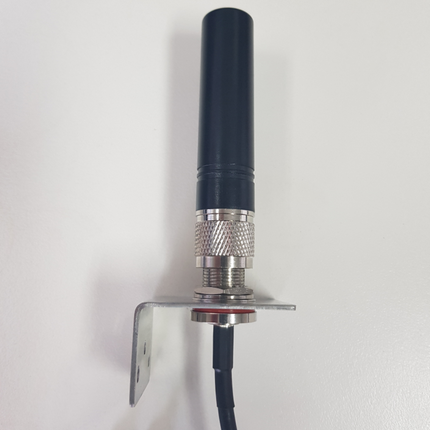

  • It uses an N-Type mount for secure attachment to the included stainless steel right-angle bracket.
  • The kit includes a stainless steel mounting bracket and three mounting screws for easy installation.
  • The compact design allows mounting on roof racks, gutter mounts, or other suitable surfaces.
  • The antenna is built to deliver reliable performance in both commercial and field environments.

Application Areas:

  • The antenna is ideal for enhancing wireless performance in X10DR Secure Wireless Microphone systems.
  • It is suitable for installations requiring remote or elevated antenna mounting.
  • This kit is perfect for use in mobile or fixed setups where omni-directional coverage is needed.
  • It is useful in environments where multi-path signal reflection is common and multi-polarity performance is beneficial.

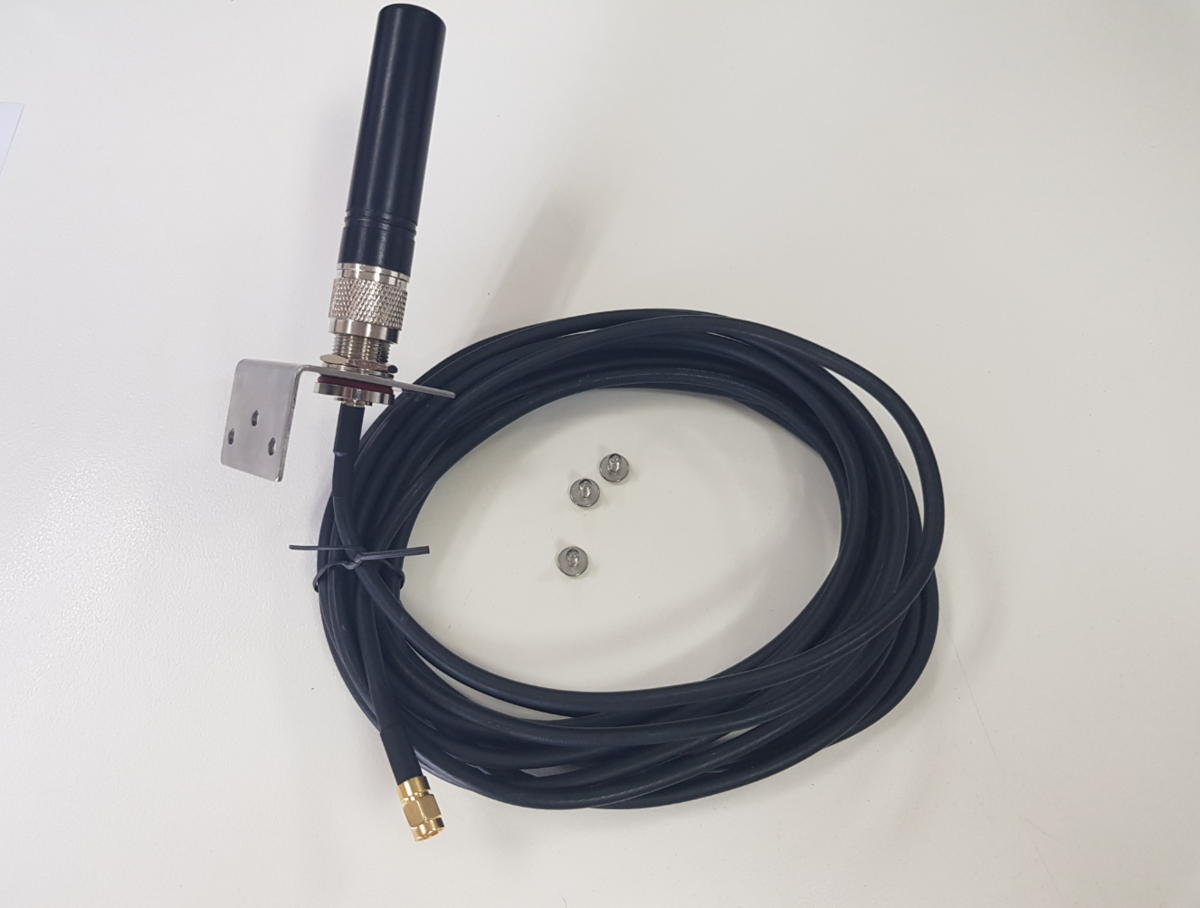

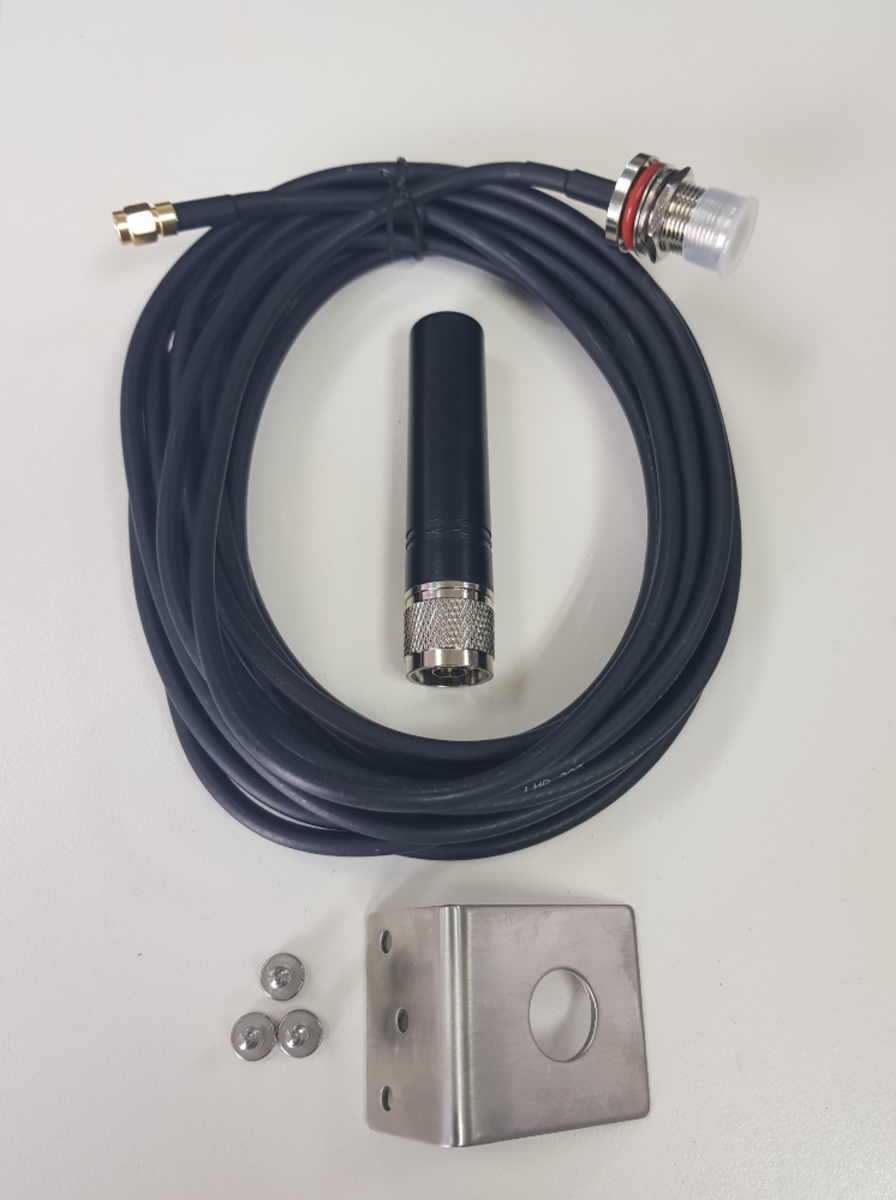

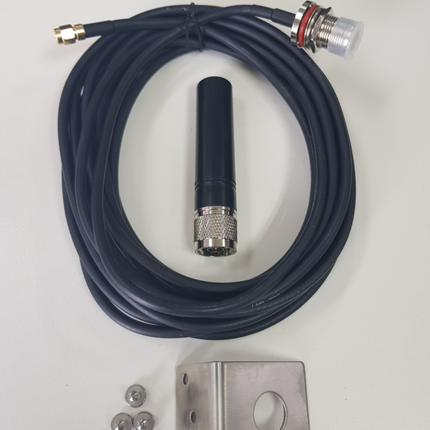

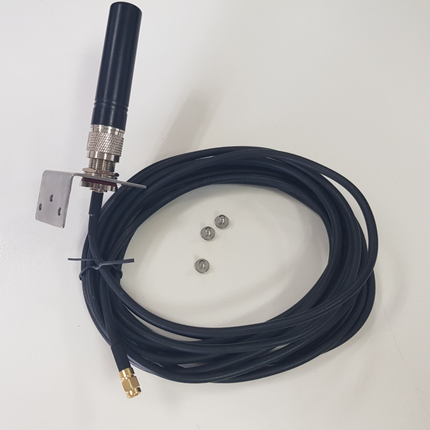

In the Box:

  • 1x X10DR Multi-Polarity N-Type Antenna (2 dBi)
  • 1x 5.2m LMR200 Coax Cable with SMA(M) RP Connector
  • 1x Stainless Steel Right-Angle Mounting Bracket
  • 3x Mounting Screws

Documents:

X10DR XMAK Multi-Polarity N-Type Rack Mount Antenna - Application Note X10DR XMAK Multi-Polarity N-Type Rack Mount Antenna - User Manual

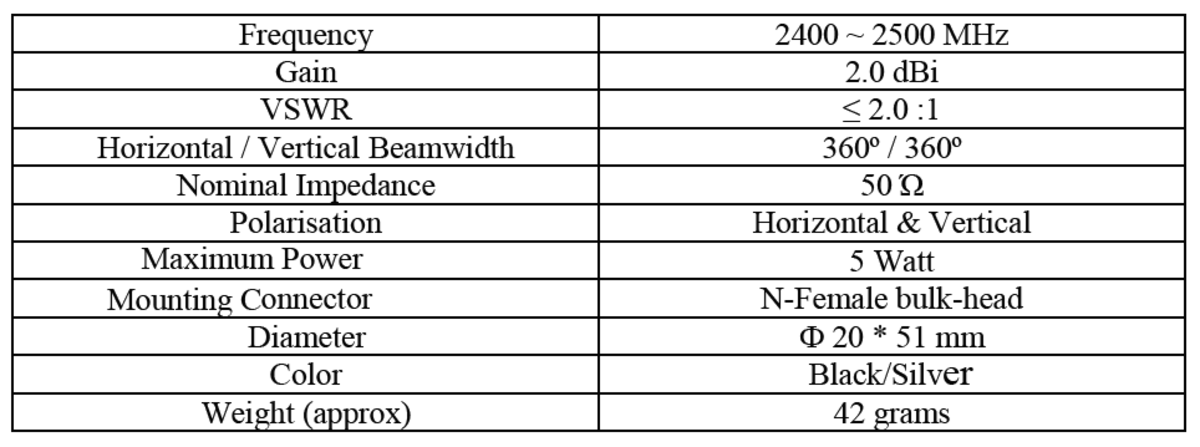

Product Specifications

MPN XMAK
Brands X10DR
Compatible battery types 1200mA Lithium Ion
Height 10
Length 30
Temperature range -10?C to +45?C (extreme -20?C to +60?C)
Width 20
