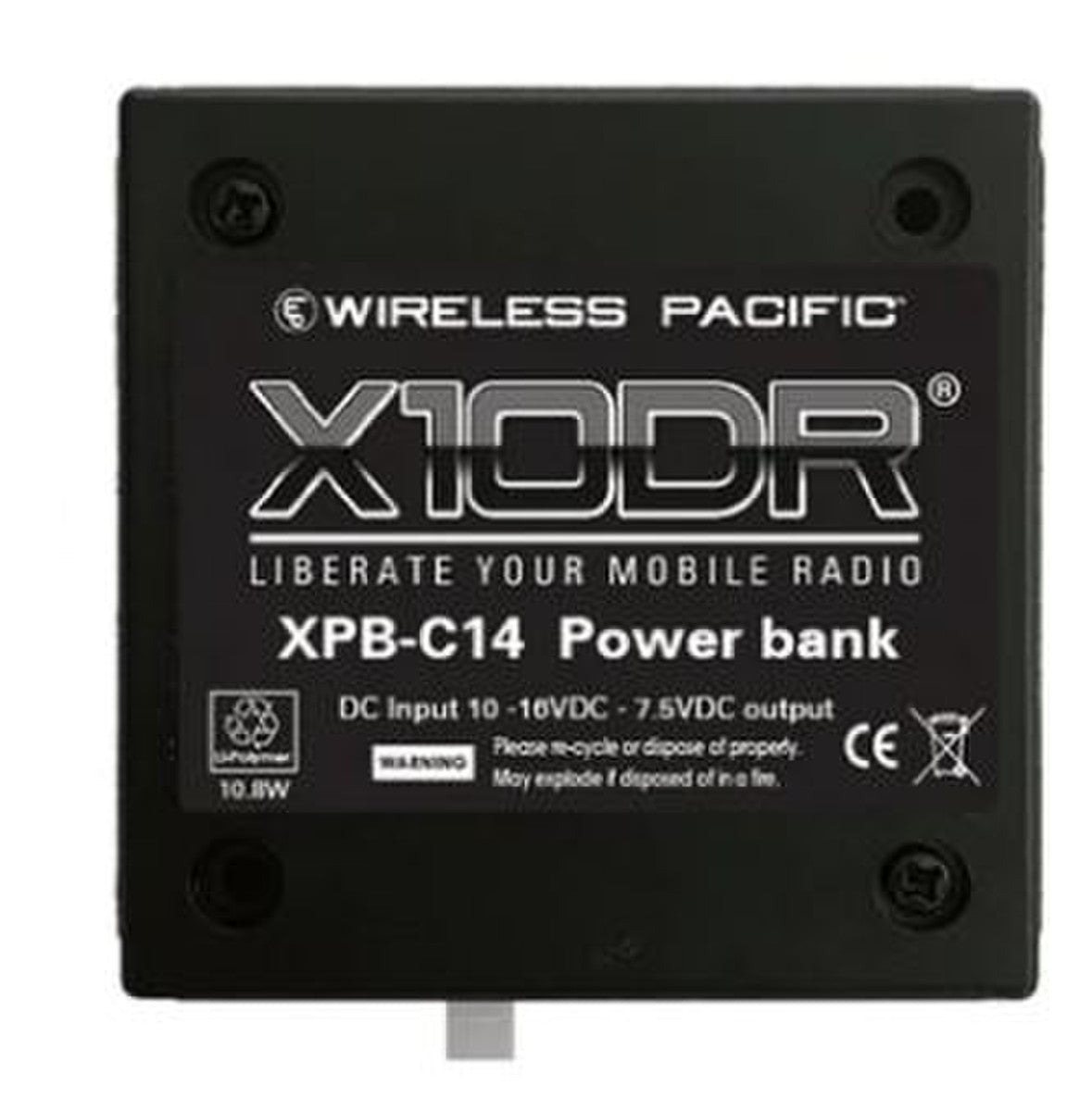

The X10DR XPB-C14 “After Hours" Power Bank is designed to provide reliable charging for X10DR handsets in vehicles where the battery is completely isolated when the vehicle is not operational. It ensures handsets remain charged and ready for deployment, even when the vehicle is off.

Product Features:

• The XPB-C14 power bank delivers 1450 mA capacity for“after hours"charging of X10DR handsets.
• It is installed in-line with the standard XIC interface cable that connects the X10DR gateway cradle to the host mobile radio.
• The unit includes two ports, allowing connection of either two gateways or a gateway and a mobile charger.
• It plugs in series with the existing XIC interface cable using an XIC-0.5 short cable (ordered separately).
• When the vehicle is operational, the XPB-C14 internal batteries recharge while also powering connected X10DR devices.
• When the vehicle is off, the power bank supplies stored power to recharge handsets placed in gateway cradles or XMVC mobile chargers.
• One XPB-C14 can typically recharge two 80% depleted handsets.
• For greater capacity, one XPB-C14 can be connected to each X10DR gateway or mobile charger in the vehicle.
• The unit includes an XIC-0.15 cable for integration into the system.

Application Areas:

• The power bank is ideal for vehicle installations where the battery is isolated when the vehicle is off.
• It is suitable for ensuring X10DR handsets remain charged and ready for use after hours.
• This device is perfect for multi-handset setups requiring independent charging support.

In the Box:

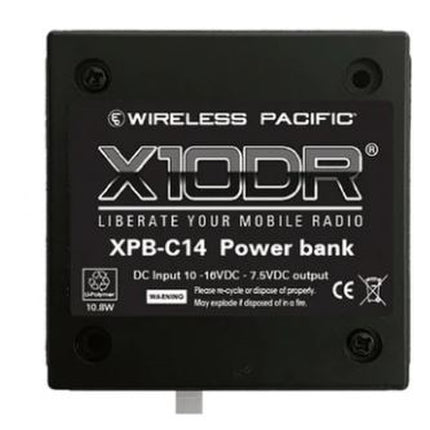

• 1x X10DR XPB-C14 Power Bank - 1450 mA
• 1x XIC-0.15 Cable

Documents:

X10DR XPB-C14 Power Bank - Application Note
