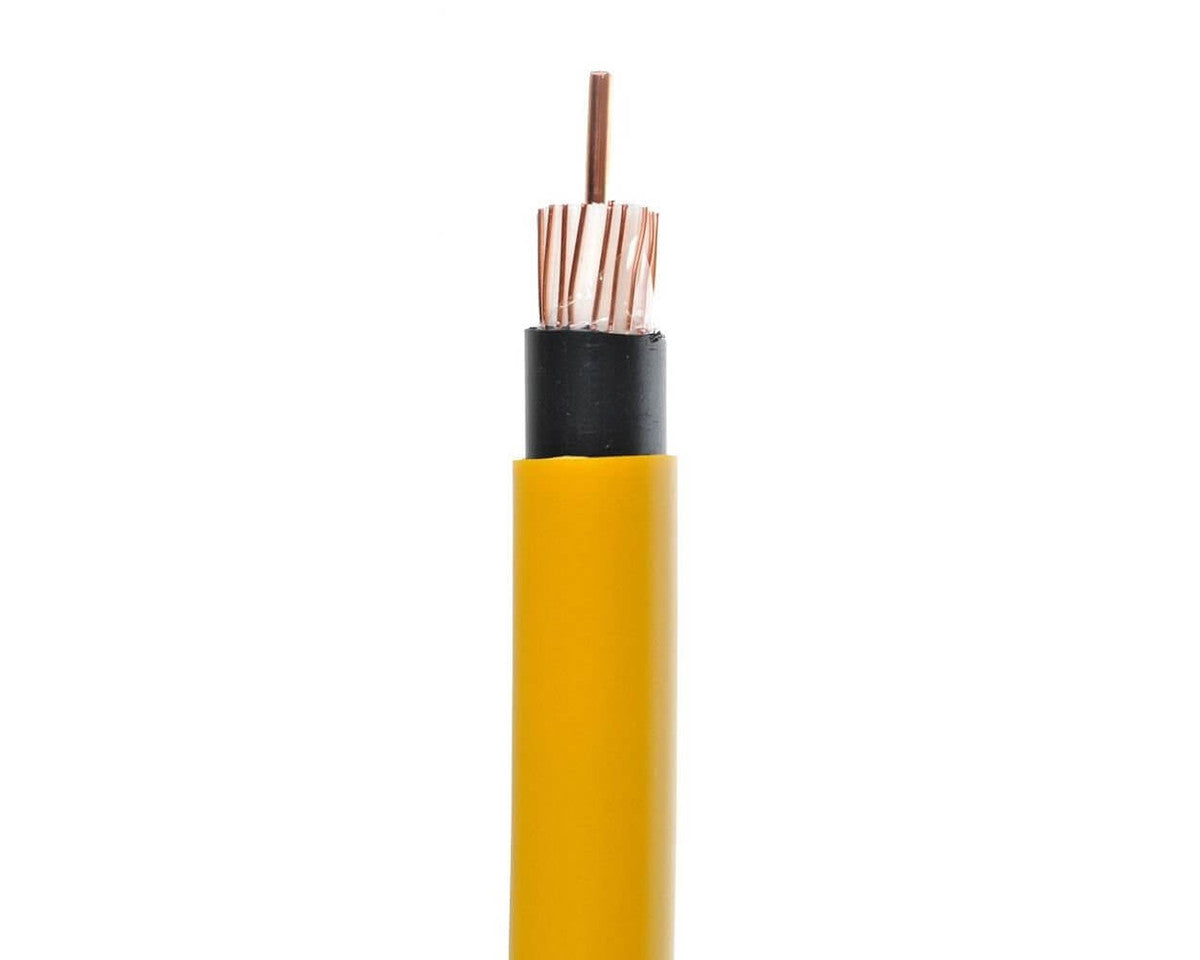

Digital Drift DD-LFC-350 Coaxial Leaky Feeder, 1/2 Inch, 350m
Digital Drift DD-LFC-350 Coaxial Leaky Feeder, 1/2 Inch, 350m
Digital Drift DD-LFC is a 75-ohm leaky feeder or radiating coaxial cable with a Low Smoke Zero Halogen (LSZH) jacket with frequency support to 300 MHz.
- Brand
- Digital Drift
- Export
- Restrictedwhat this means
- Item ID
- 167028788
- MPN
- DD-LFC-350
- Shipping
- Please contact us for lead time
Standard Warranty
Global Insurance Except USA & Canada
$2,439.64
Export restricted item. Export orders may incur additional charges — ask us for a quote.
- Taxes included. Shipping rate calculated at checkout.
- Purchase Order & instructions box available at Cart page
-
Pay securely! All major cards accepted.
Product Description
Digital Drift DD-LFC is a 75-ohm leaky feeder or radiating coaxial cable with a Low Smoke Zero Halogen (LSZH) jacket with frequency support to 300 MHz. Typically this cable is used in 150 MHz VHF radio wireless systems in mines and tunnels.
Options:
The cable is available in two length options.
- 350m drum - DD-LFC-350
- 500m drum - DD-LFC-500
Product Features:Installation simplicity (any UG trade can do it - no IT or fibre skills req'd)
- Low voltage power availability is scarce in working areas - so send it down the cable
- One cable for Voice Radio and High-Speed Networking
Attenuation @ 20 Degrees Celsius
| Frequency (MHz) | Attenuation (dB/100m) |
| 30 | 1.8 |
| 85 | 3.1 |
| 150 | 4.15 |
| 160 | 4.30 |
