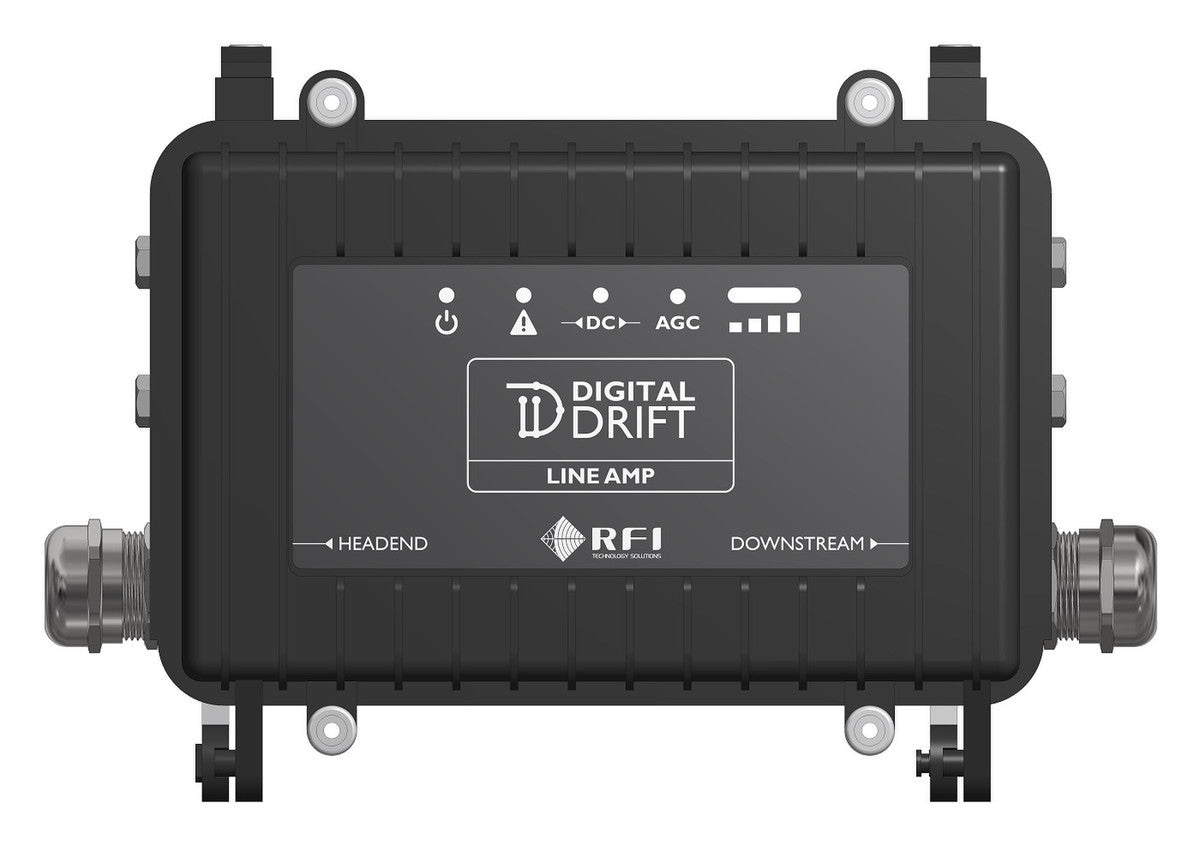

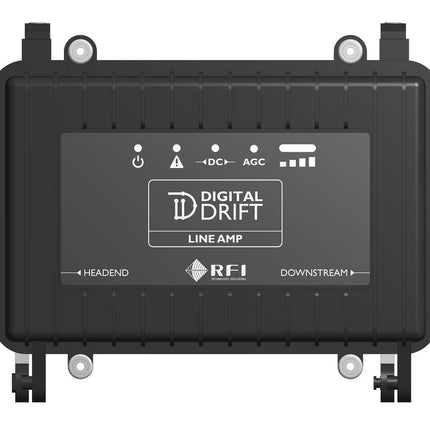

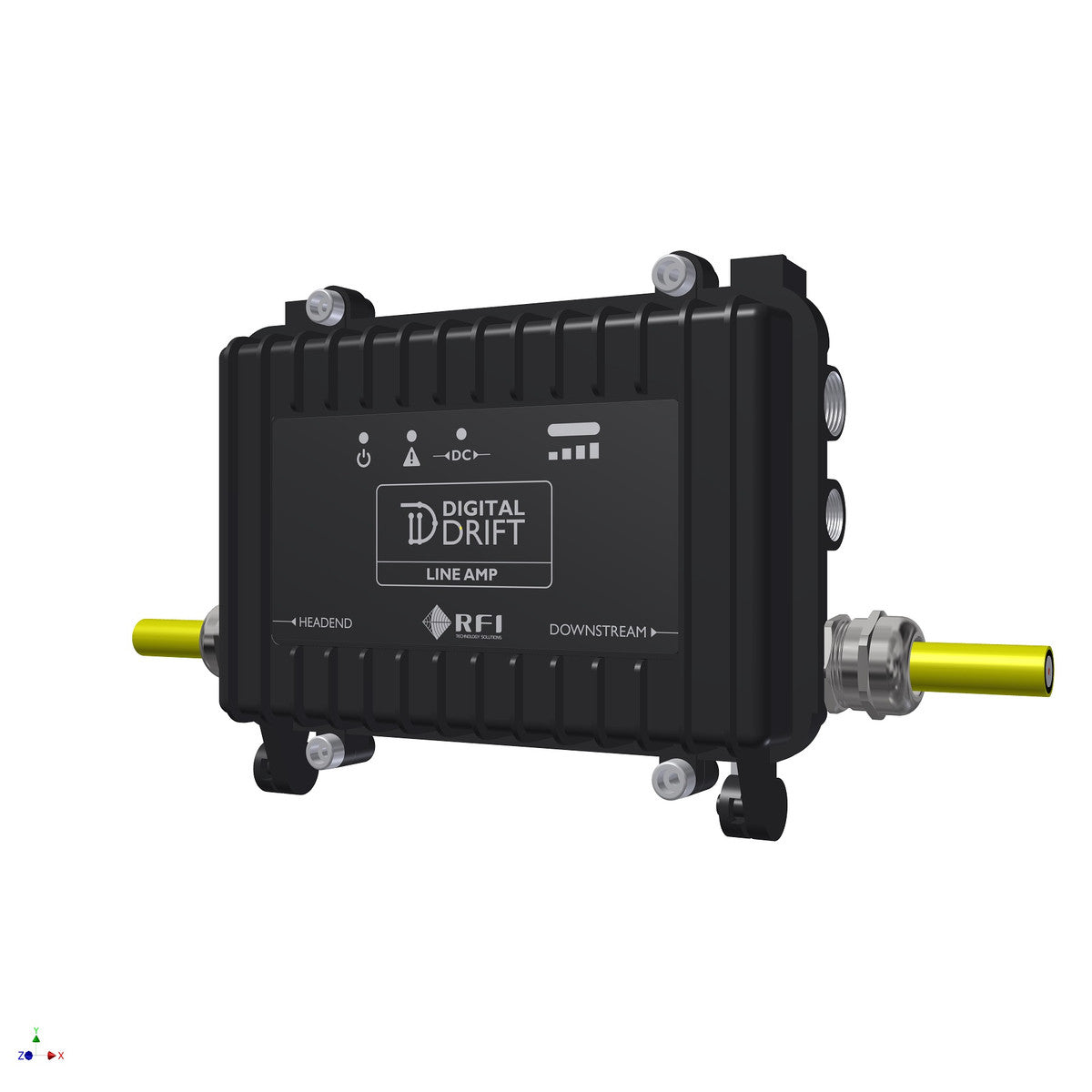

Digital Drift Leaky Feeder System Line Amp - VHF; 75 Ohm
The LineAmp is a component of RFI's Digital Drift Leaky Feeder System, which delivers reliable underground voice radio communications and high-speed data connectivity over leaky feeder cabling.
The LineAmp passes the broadband data signal through with minimal loss, while providing bidirectional amplification of VHF radio signals using one of three selectable gain control modes (manual, auto or remote).
Features:
- Rugged industrial housing designed for outdoor installation
- Inter-operability with existing amplifiers and cabling
- Low noise figure operation
- Quieter, highly linear amplifier
- Gain of up to 25 dB, enabling 500m spacing
- Wide and flat passband
- High RF power output (OP1 dB > +17 dBm)
- Consistent output power per channel, regardless of the number of simultaneous channels in use
- Self-adjusting gain management algorithm
- In-built self-diagnostics processor
- Simple cable terminations
- Easy installation and maintenance by site electricians
In the box:
Documents:
Digital Drift Leaky Feeder System Line Amplifier - Datasheet
