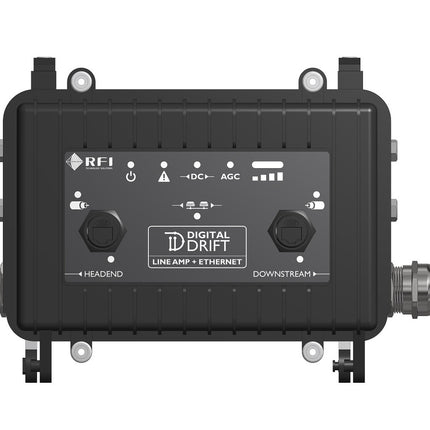

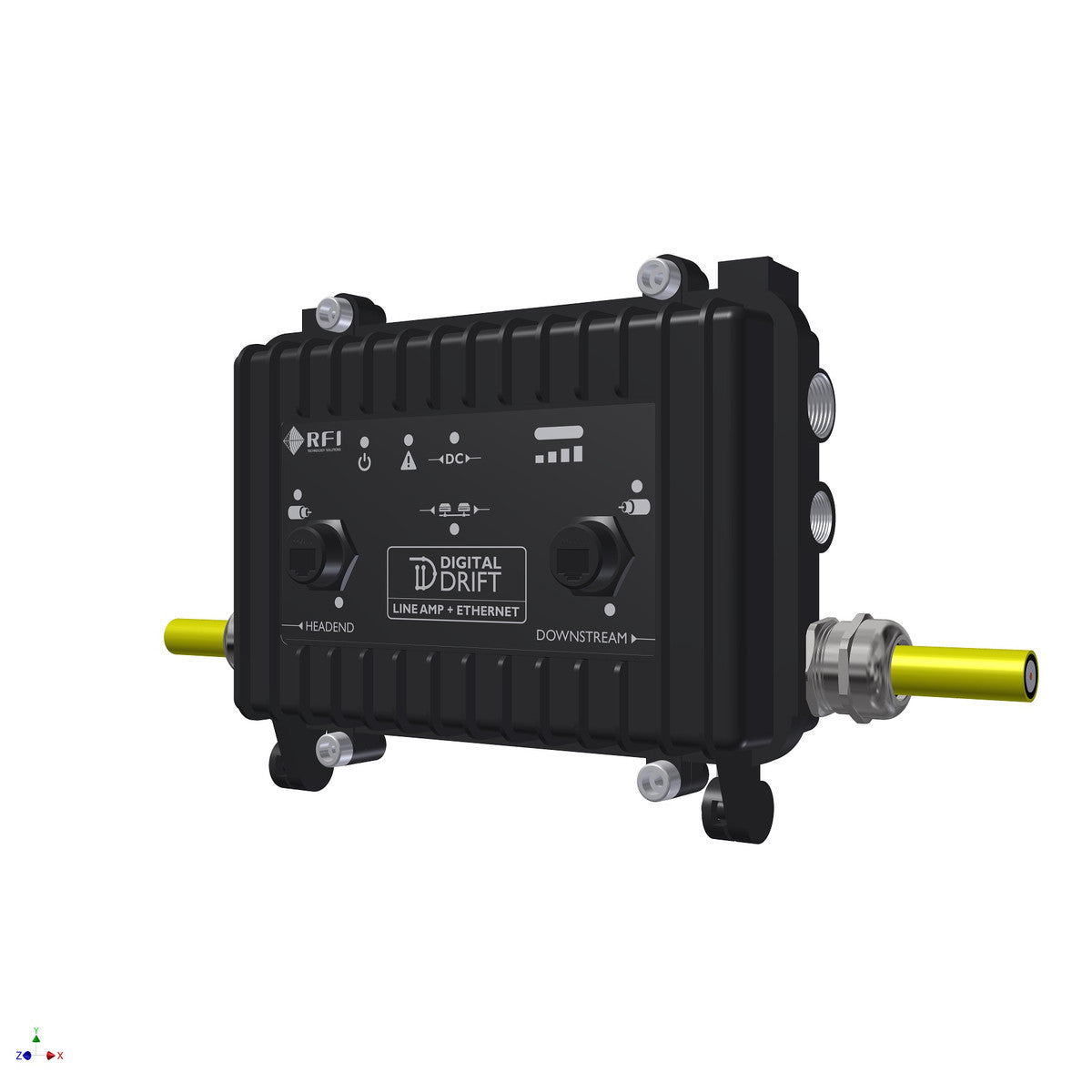

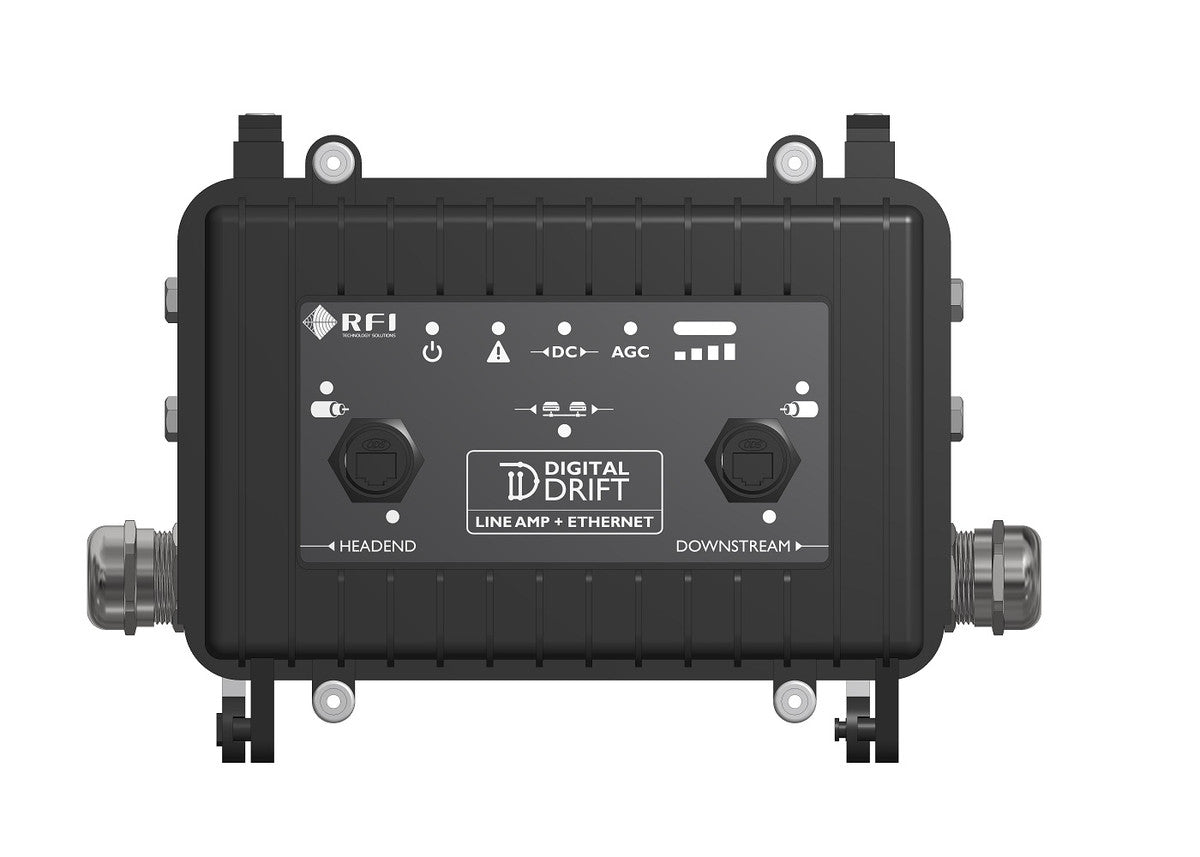

The Line Amp with Ethernet is a component of RFI's Digital Drift Leaky Feeder System, which delivers reliable underground voice radio communications and high-speed data connectivity over leaky feeder cabling.The LineAmp with Ethernet has all of the LineAmp features, plus a built-in Digital Drift Repeater. This enables data to be bridged onto and off the leaky feeder cable through the builtin RJ45 ports, while also providing digital signal regeneration of the broadband data signal between its incoming and outgoing leaky feeder connections.

Features:

• Rugged industrial housing designed for outdoor installation - Inter-operability with existing amplifiers and cabling
• Low noise figure operation
• Quieter, highly linear amplifier
• Gain of up to 25 dB, enabling 500m spacing
• Wide and flat passband
• High RF power output (OP1 dB > +17 dBm)
• Consistent output power per channel, regardless of the number of simultaneous channels in use
• Inter-operability with existing amplifiers and cabling - Upgrade existing radio networks to carry high-speed data
• Start small and expands as results are delivered
• Native Ethernet support
• Proven high-speed data up to 800Mbps
• Integrates with existing underground fibre networks
• Self-adjusting gain management algorithm
• In-built self-diagnostics processor
• Simple cable terminations
• Easy installation and maintenance by site electricians

In the box:

• 1 x (DDLFS-LAE-V75)

Documents:

Digital Drift Leaky Feeder System - Datasheet
