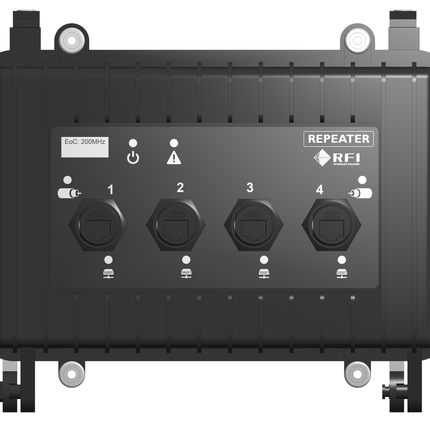

The Repeater 2 digitally re-generates the Ethernet over Coax (EoC) data signal, enabling coaxial segments to be extended indefinitely. At the same time, it breaks out standards-compliant Ethernet ports, supplying data backhaul for any industrial Ethernet device. Power for devices can be supplied via internal screw terminals, accessible via an M20 gland.

Features:

• Can be installed in-line on either Digital Drift non-leaking coax (hardline or flexible) or broadband leaky coax for radiating Wi-Fi / LTE
• Breaks out 4 x GbE ports
• IP66 (Dust tight and protection against powerful water jets)
• 200 MHz Eoc band plan
• Operates from 10 to 60 VDC

Documents:

Digital Drift DD320-RP2-DC Repeater-2 - Datasheet
