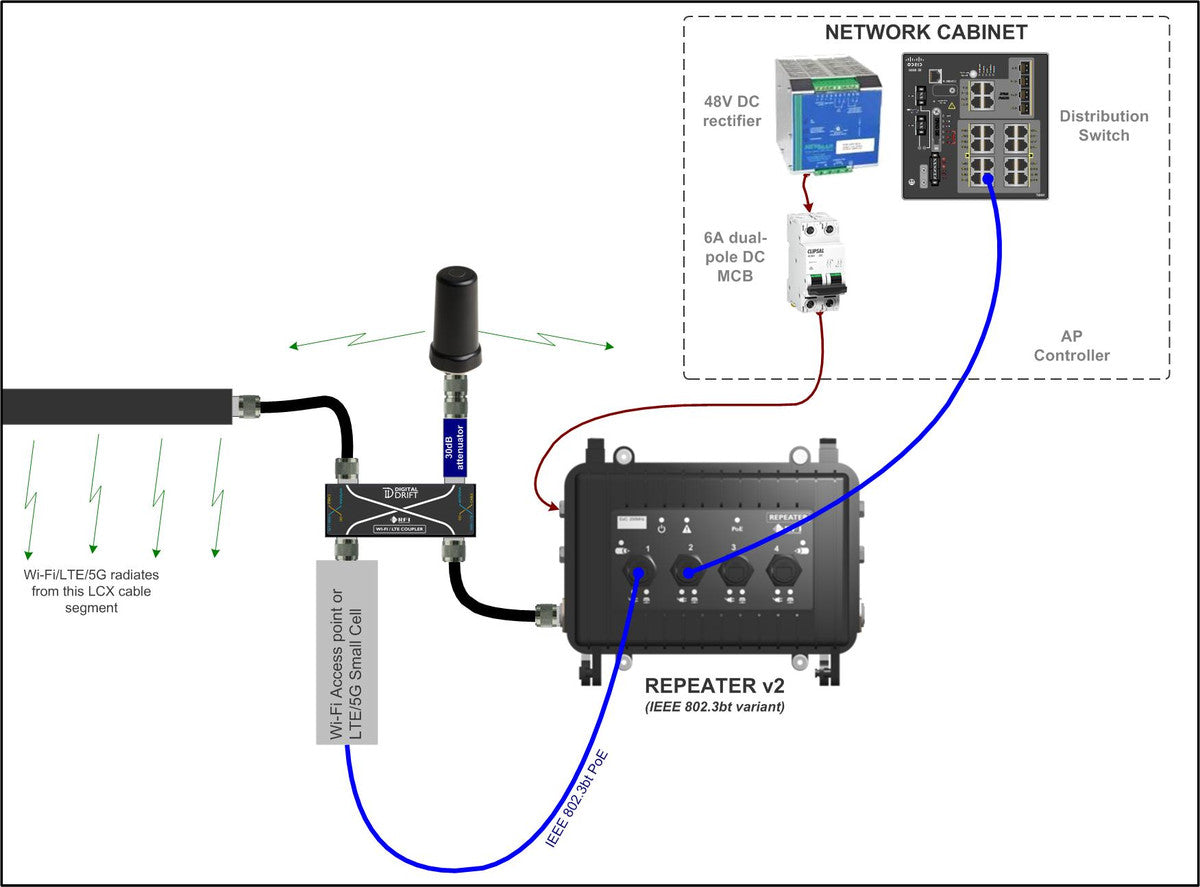

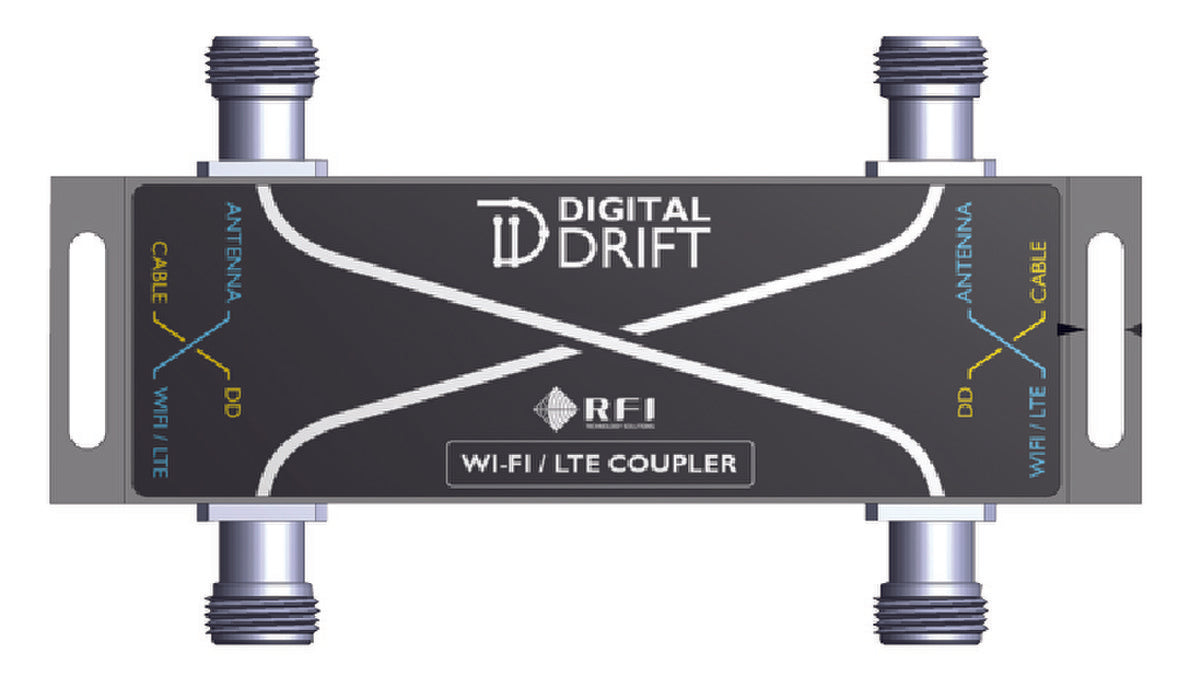

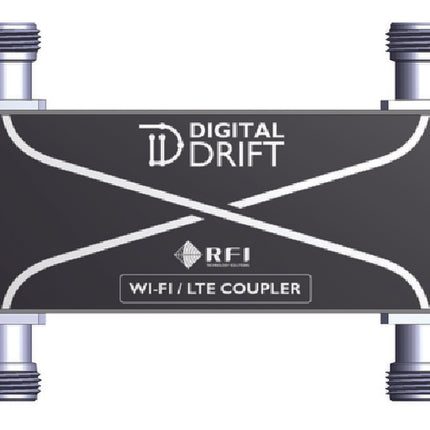

This coupler offer a low cost solution for hybrid's covering cellular bands from 694 to 2700MHz, with low loss Passive Inter-Modulation performance and high isolation. It also allows for the VHF (150MHz to 185MHz) to pass through. Typically used to combine VHF and Wi-Fi/LTE/5G into a radiating cable or antenna.

Features:

• Broadband 698-2700 MHz covering all cellular bands.
• 4 port, 2x2 hybrid coupler
• Low Insertion Loss
• Good isolation (Ports 1 & 2) across full bandwidth >23 dB
• Suitable for use in high power multi-carrier transmission systems
• Manufactured to a low PIM -150 dBc (3rd Order 2x43 dBm carriers) rating
• 100W per port power rating
