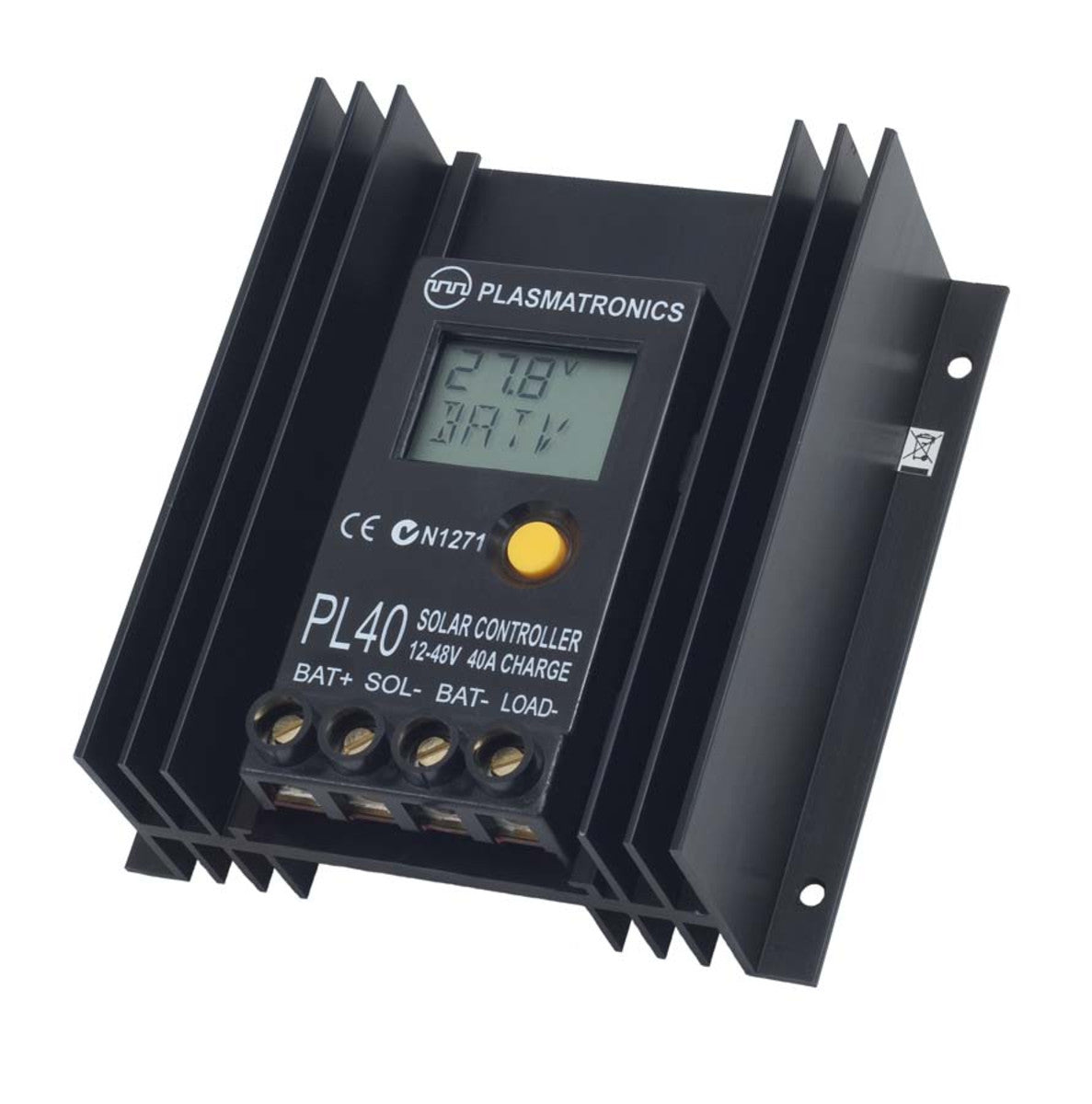

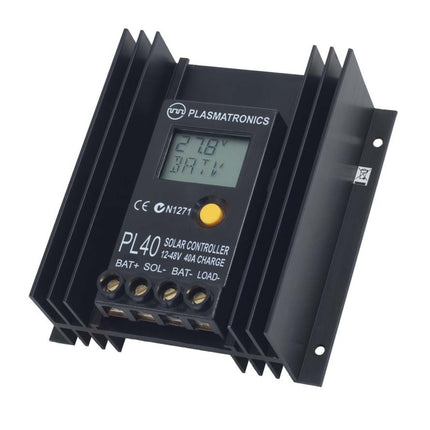

Plasmatronics PL40 PWM Solar Regulator, 40A, 12-48V, LCD

Plasmatronics PL40 PWM Solar Regulator, 40A, 12-48V, LCD

Sold out

Item ID:
168030124
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
PL40
Send Request for Quote (RFQ) Discount Offers
Plasmatronics PL40 PWM Solar Regulator is powerful and programmable charge controller designed to manage solar power systems with precision and flexibility.
Regular price $663.00
Regular price $0.00 Sale price $663.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Plasmatronics PL40 PWM Solar Regulator is a powerful and programmable charge controller designed to manage solar power systems with precision and flexibility. Supporting systems from 12V to 48V and handling up to 40A of current, it offers advanced control features and detailed performance monitoring through its integrated LCD display.

Product Features:

  • This unit supports both Pulse Width Modulation (PWM) and slow-speed switching, offering flexibility in energy regulation methods.
  • It includes a built-in low battery disconnect switch that helps protect batteries from deep discharge, enhancing battery life.
  • The integrated event controller enables automation of tasks such as turning on lights at night or operating a pump based on user-defined conditions.
  • It supports both series and shunt regulation modes, making it adaptable to a wide range of system configurations.
  • This regulator can control a backup generator, adding an extra layer of reliability to off-grid systems.
  • It features the ability to charge a second battery, which is useful in systems requiring dual battery management.
  • The LCD display provides real-time and historical data, helping users monitor and optimize system performance.
  • The PL40 is part of the trusted PL series, known for its user-friendly interface and robust feature set.

Application Areas:

  • This regulator is ideal for off-grid solar systems that require high current handling and programmable control.
  • It is suitable for industrial solar installations where automation and detailed monitoring are essential.
  • This device is well-suited for agricultural systems needing automated control of pumps or lighting.
  • It is a reliable choice for advanced DIY solar projects that demand flexibility and system protection.

In the Box:

  • 1x Plasmatronics PL40 PWM Solar Regulator, 40A, 12–48V

Documents:

Plasmatronics Solar Charge Controller - Datasheet Plasmatronics Solar Charge Controller - User Guide

Product Specifications

MPN PL40
Adjustable charging params Fully Programmable
Battery bank voltage 12, 24, 36, 48, 32
Brands Plasmatronics
Compatible battery types All types
Display interface LCD
Grounding polarity Positive Ground (switches on negative)
Height 5
Ip rating IP22
Length 13
Load control a dc 7
Low voltage disconnect lvd Yes
Mounting Wall
Regulator type PWM Solar Regulator
Remote communications Yes, optional accessory required
Suggested solar capacity w 2400 for 48V Batteries
Temperature compensated Yes - temp sensor sold separately
Temperature range 40
Temperature range c -20?C to +55?C
Width 12.4
