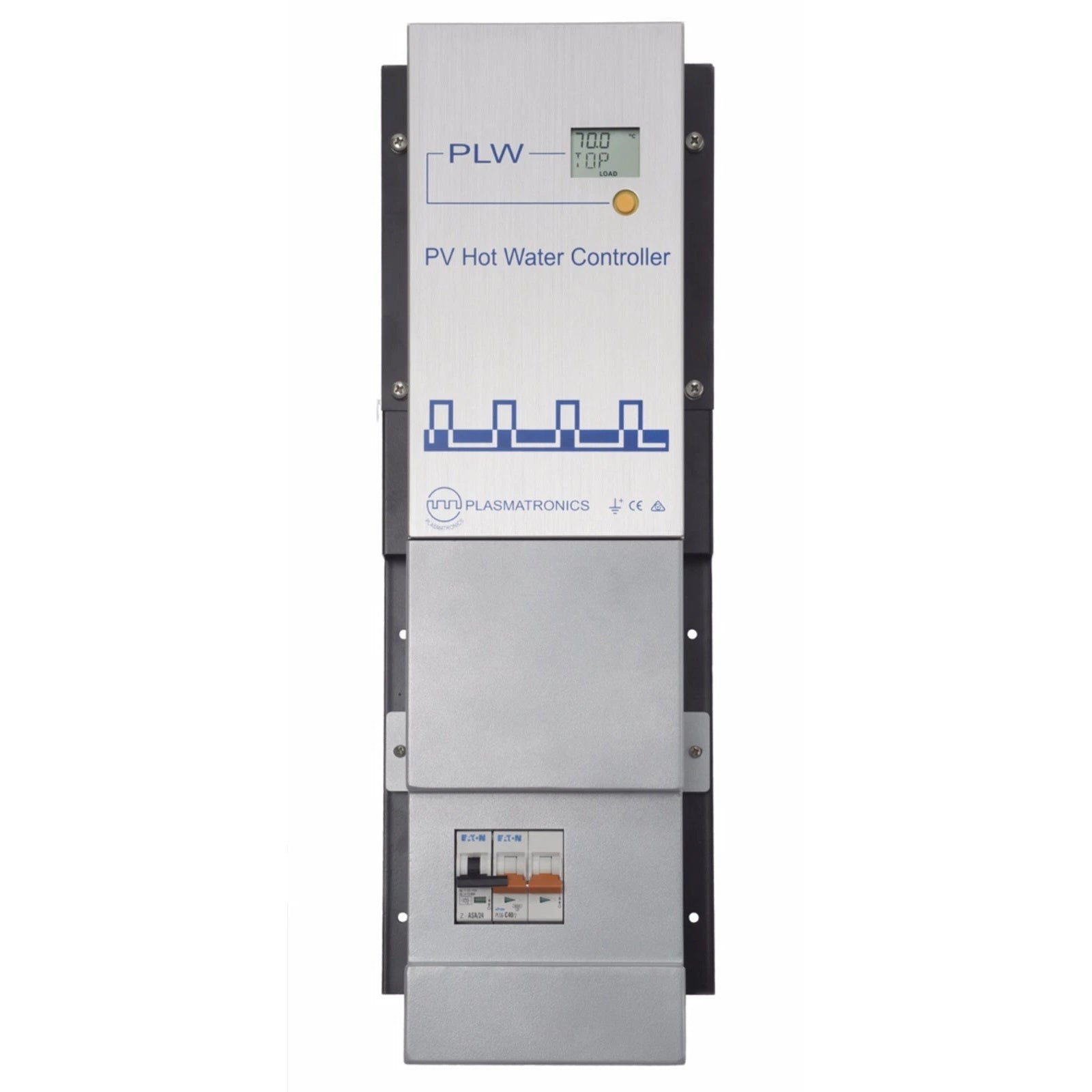

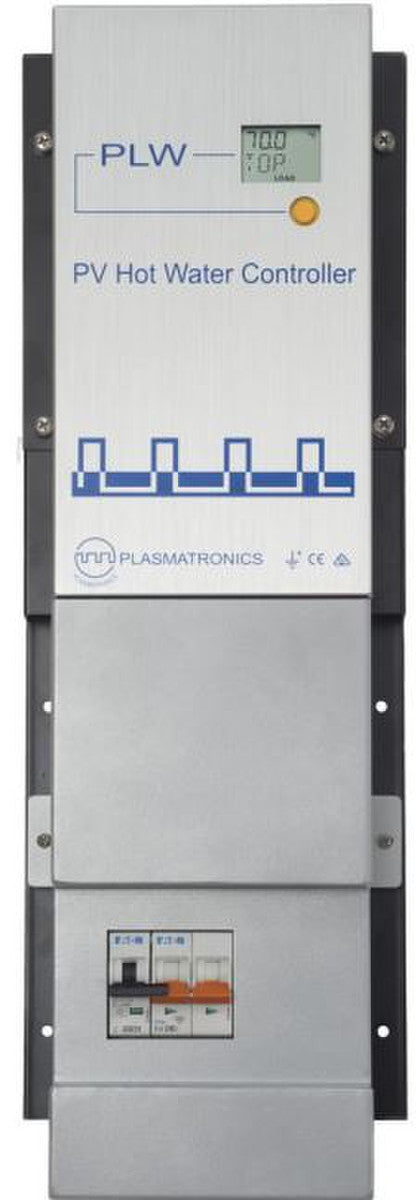

Plasmatronics PLW PV Hot Water Controller

Plasmatronics PLW PV Hot Water Controller

On backorder

Item ID:
168030168
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
PLW
Send Request for Quote (RFQ) Discount Offers
Plasmatronics PLV Solar Hot Water Controller - The Plasmatronics PLW is a PV Solar Hot Water Controller for off-grid and grid boosted PV systems.
Regular price $1,341.00
Regular price $0.00 Sale price $1,341.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

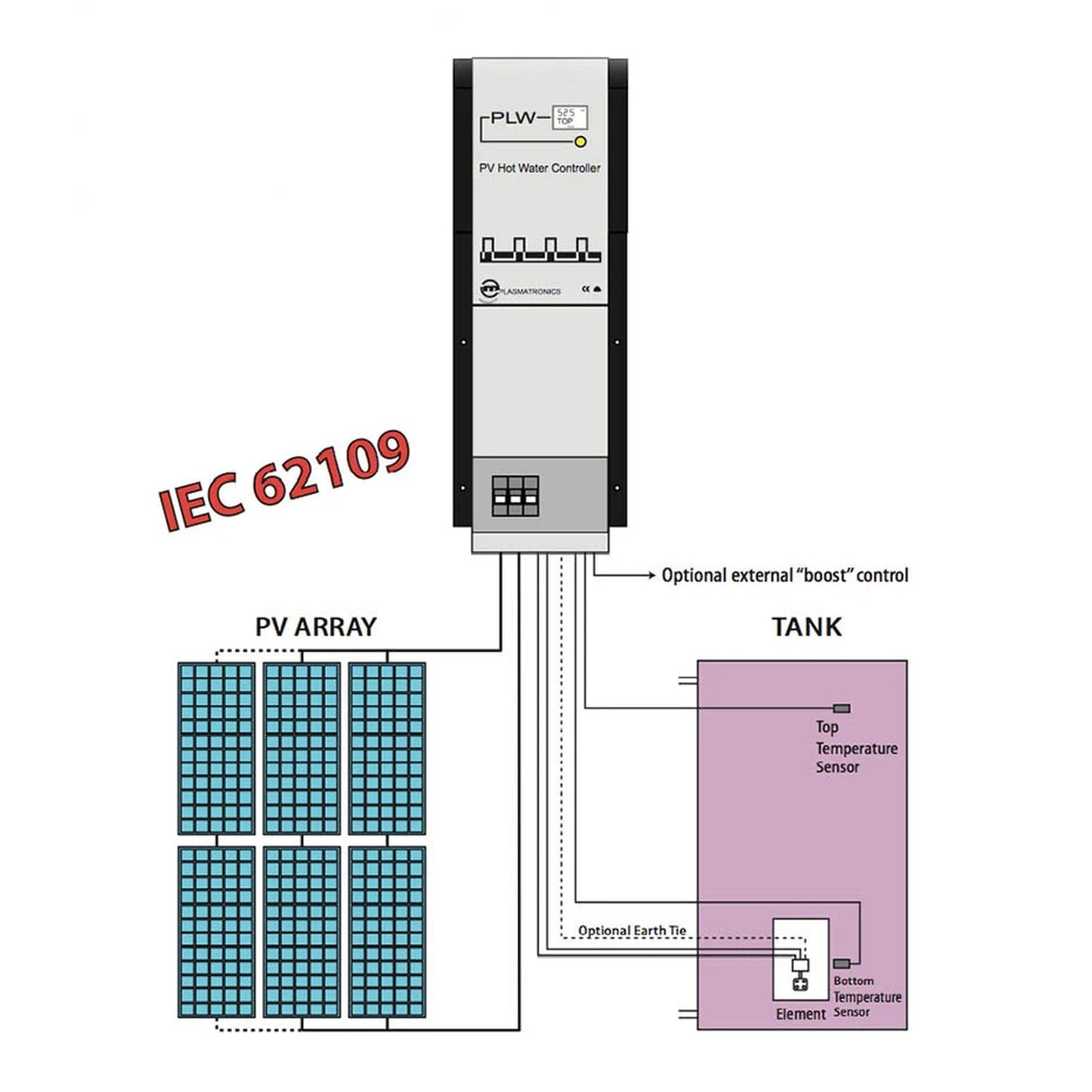

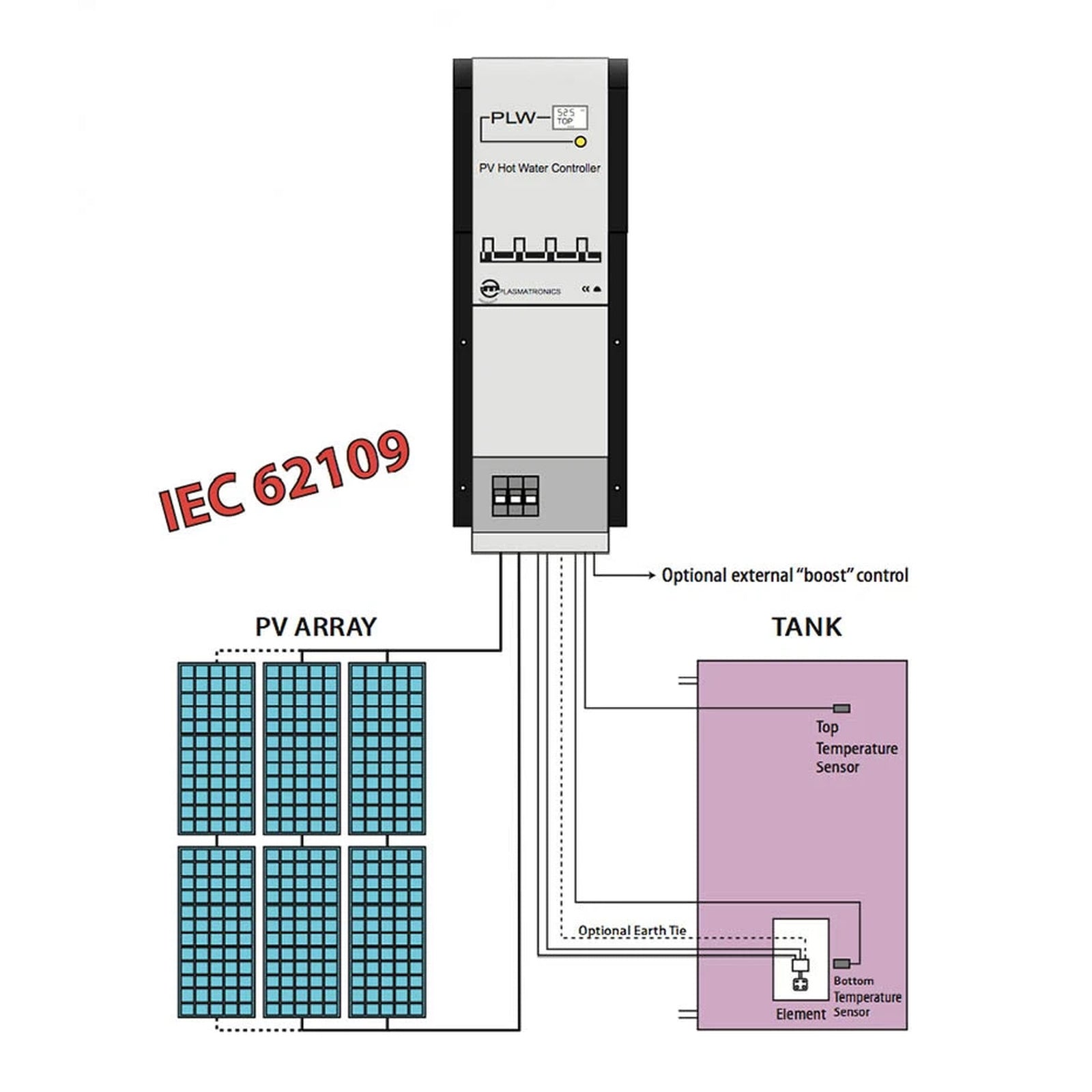

The Plasmatronics PLW is a dedicated PV solar hot water controller designed for both off-grid and grid-boosted systems. It offers a complete and efficient solution for solar water heating without the need for batteries, pumps, or frost protection devices, making it a low-maintenance and reliable choice.

Product Features:

  • The PLW PV Hot Water Controller is designed to work with both 60-cell and 72-cell solar panels, offering flexibility in system design.
  • The system uses data from two temperature sensors to monitor and control the maximum tank temperature, functioning as a thermostat.
  • It eliminates the need for additional energy sources when paired with an adequately sized PV array, reducing reliance on grid power or fuel-based heating.
  • The unit does not require batteries, simplifying installation and reducing long-term maintenance.
  • It operates without pumps or frost protection devices, minimizing the risk of mechanical failure.
  • The system is easy to install and does not require roof reinforcement, making it suitable for a wide range of buildings.
  • It is approved to the IEC62109 safety standard, ensuring compliance with international safety requirements.
  • The controller displays temperature information to the user, providing clear system feedback and control.

Application Areas:

  • This controller is ideal for off-grid homes or cabins requiring a reliable solar hot water solution.
  • It is suitable for grid-connected systems looking to reduce energy costs through solar water heating.
  • This device is well-suited for rural or remote installations where simplicity and reliability are essential.
  • It is a practical choice for environmentally conscious users seeking a battery-free, solar-powered water heating system.

In the Box:

  • 1 x Plasmatronics PLW PV Hot Water Controller Kit
  • Solar isolator
  • Low voltage heating element
  • 2 x temperature sensors
  • Pre-wired mechanical safety thermostat

Documents:

Plasmatronics PV Solar Hot Water Controller - Datasheet Plasmatronics PV Solar Hot Water Controller - User Manual

Product Specifications

MPN PLW
Brands Plasmatronics
Cec list category Power Conversion Equipment
Cec list expiry date 21/12/2022
Cec list model number PLW
Height 53.5
Ip rating IP20
Length 19
Max dc input curr a dc 30
Max solar array voc v dc 100
Nominal voltage 48
Width 18.5
