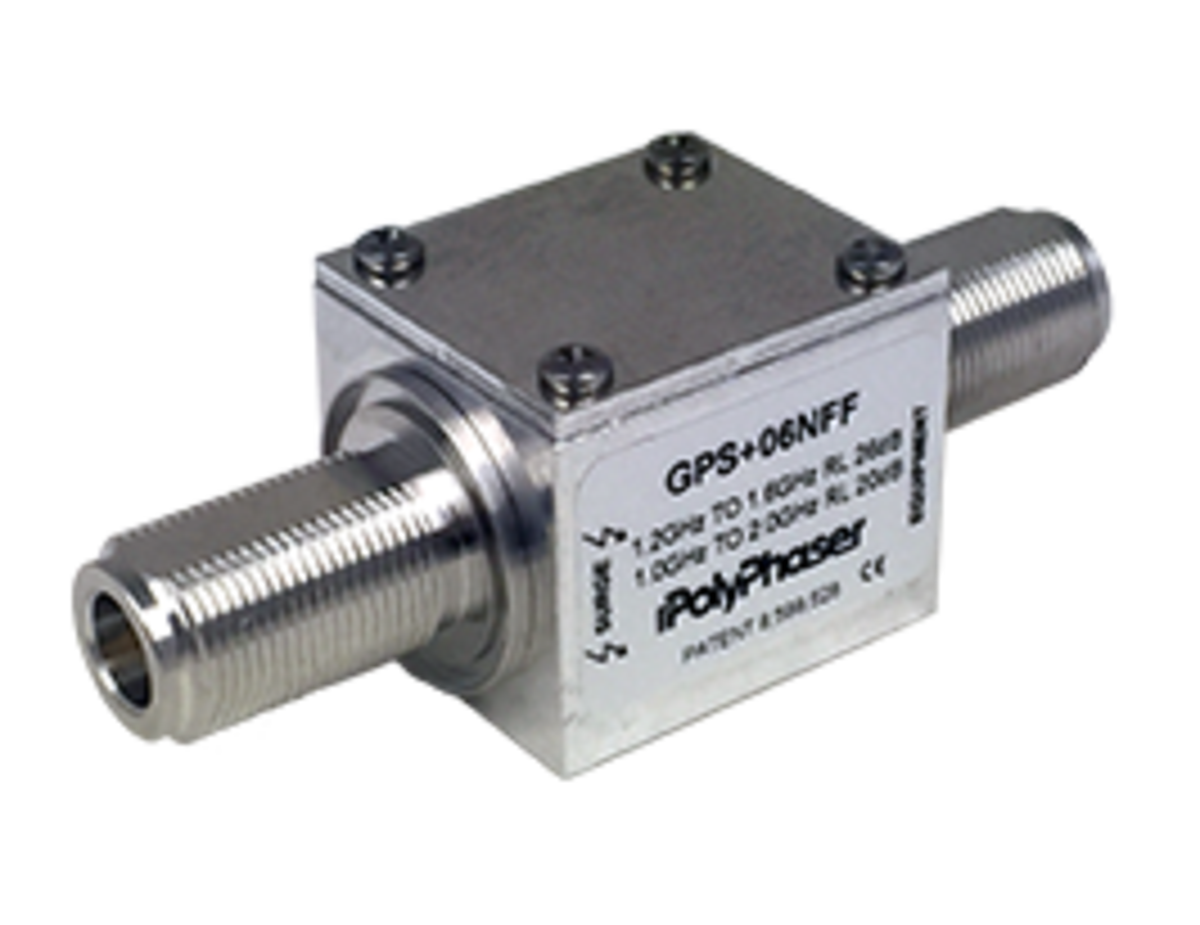

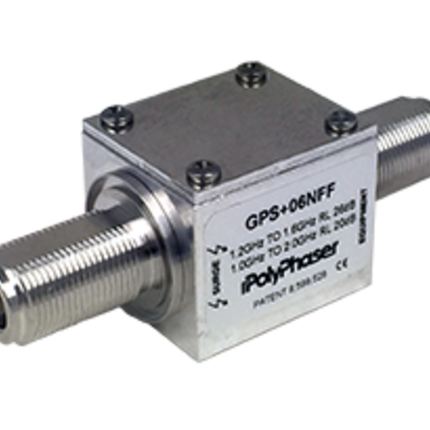

PolyPhaser GPS+06NFF Surge Protector, 1.2-1.6 GHz, N F-F Bulkhead

PolyPhaser GPS+06NFF Surge Protector, 1.2-1.6 GHz, N F-F Bulkhead

Low stock

Item ID:
168029516
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
GPS+06NFF
Send Request for Quote (RFQ)
PolyPhaser Type N F/F Bulkhead Coaxial RF Surge Protector; 1.2 GHz - 1.6 GHz; 10W; IP67; 6 V Max.; 175 μJ; 15 kA; Avalanche Diode
Regular price $378.50
Regular price $0.00 Sale price $378.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The PolyPhaser GPS+06NFF is an RF surge protector (also known as a lightning arrester or surge arrestor) that uses a fast-acting silicon avalanche suppression diode (SASD). This RF surge protector component is manufactured in a coaxial in-line design with a narrow operating frequency range, providing effective protection for critical equipment.

Product Features:

  • The surge protector supports a maximum surge current of 15kA, ensuring robust protection against electrical surges.
  • It has a maximum power rating of 10W, accommodating specific power requirements.
  • This device operates within a frequency range from 1.2 to 1.6 GHz, offering targeted compatibility.
  • It features N-Type Female connectors on both the surge side and the protected side, providing secure and reliable connections.
  • The surge protector is waterproof with an IP67 rating, ensuring durability in harsh environments.
  • It maintains a maximum VSWR of 1.1:1, ensuring minimal signal loss.
  • The device offers a maximum insertion loss of 0.1dB, ensuring efficient signal transmission.

Application Areas:

  • This surge protector is ideal for GPS systems, ensuring reliable protection for navigation equipment.
  • It is suitable for active antenna systems, providing robust performance in communication applications.
  • This device is perfect for cellular communications systems, offering dependable surge protection in critical applications.

In the Box:

  • 1x PolyPhaser GPS+06NFF RF Surge Protecto

Documents:

PolyPhaser GPS+06NFF Surge Protector - Datasheet PolyPhaser GPS Series Surge Protector - Datasheet
