Poynting EPNT-4 Antenna, 4G-5G, Wi-Fi CPE

Poynting EPNT-4 Antenna, 4G-5G, Wi-Fi CPE

On backorder

Brand:
Item ID:
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
Default Title: MPN not available
Poynting EPNT-4 X-Polarised; Omni-Directional; 5G/LTE & WiFi CPE designed to fit a variety of router modules, transforming the antenna enclosure into CPE.
Price on application
Open Request for Quote (RFQ) Form
Number of Antenna Ports
View full details

Product Description

The Poynting EPNT-4 Antenna is a cross-polarised, omni-directional antenna designed for 5G-LTE and Wi-Fi CPE applications. This Antenna Enclosures are designed to fit a variety of router modules, transforming the antenna enclosure into Customer Premises Equipment (CPE) with the addition of an LTE/5G router.

Product Features:

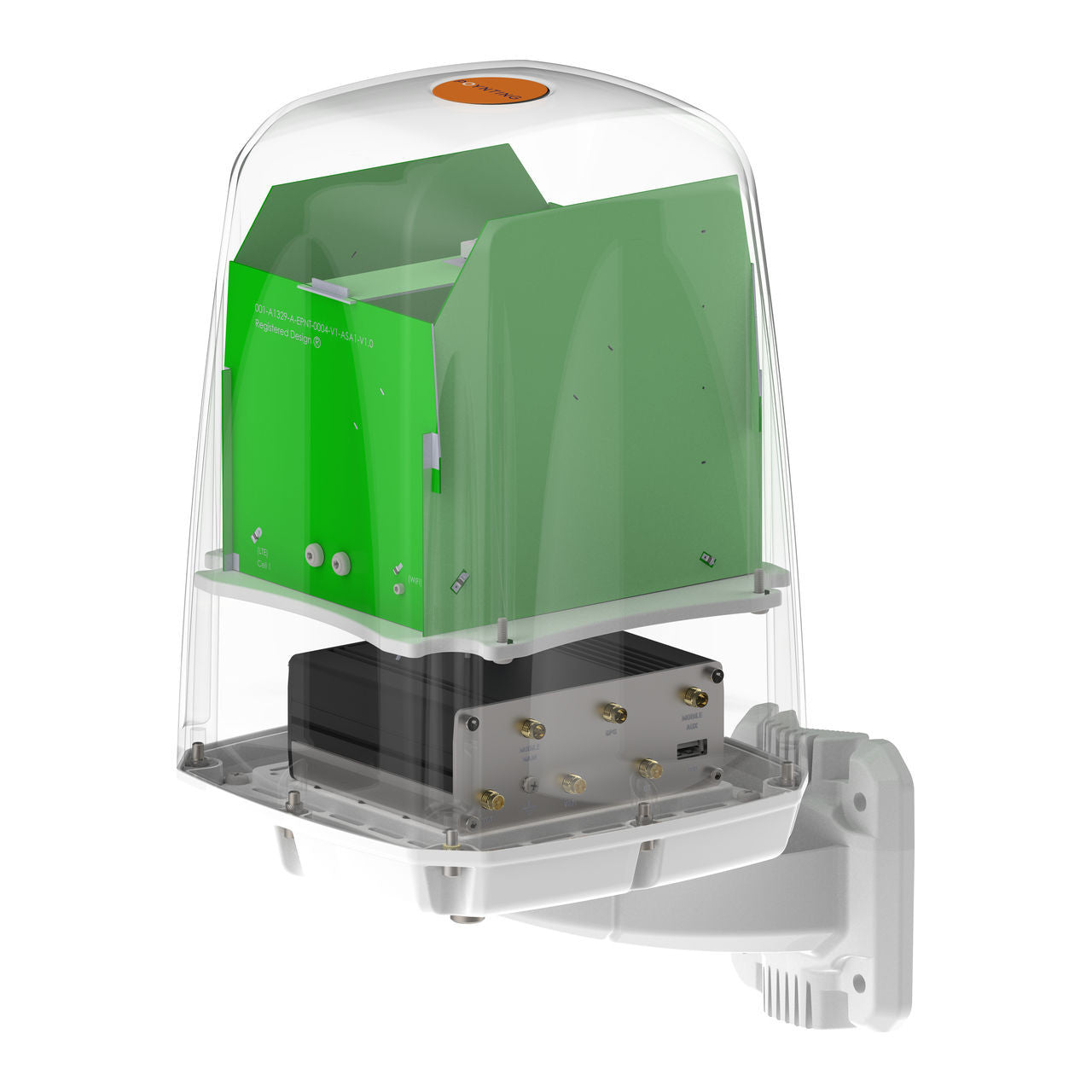

  • This self-contained omni-directional LTE/5G enclosure integrates both the antenna and customer router within an outdoor enclosure.
  • It can accommodate routers up to the size of 120mm x 120mm x 50mm.
  • The antenna offers wideband frequency coverage for LTE/5G from 617 to 4200 MHz.
  • Cellular antennas provide a peak gain of 3 dBi.
  • The cross-polarised design and 4×4 MIMO configuration improve throughput.
  • It works on all cellular networks worldwide, including Band 71 (617 to 698 MHz).
  • The antenna covers the CNRS Band from 3.5 to 4.2 GHz.
  • The antenna can withstand winds up to 160 km/h.

Application Areas:

  • This antenna is perfect for enhancing LTE and 5G connectivity in built-up areas with multiple base stations.
  • It is ideal for environments requiring high stability and throughput.
  • This antenna is suitable for outdoor installations needing robust and weather-resistant equipment.

In the Box:

  • 1x Poynting EPNT-4 Antenna

Documents:

Poynting EPNT-4 Series Antenna - Datasheet

Videos:

Poynting EPNT-4 Series - Unboxing Poynting EPNT-4 Series - Product Overview How to fit a Teltonika RUTX14 into a Poynting EPNT-4 Enclosure?
