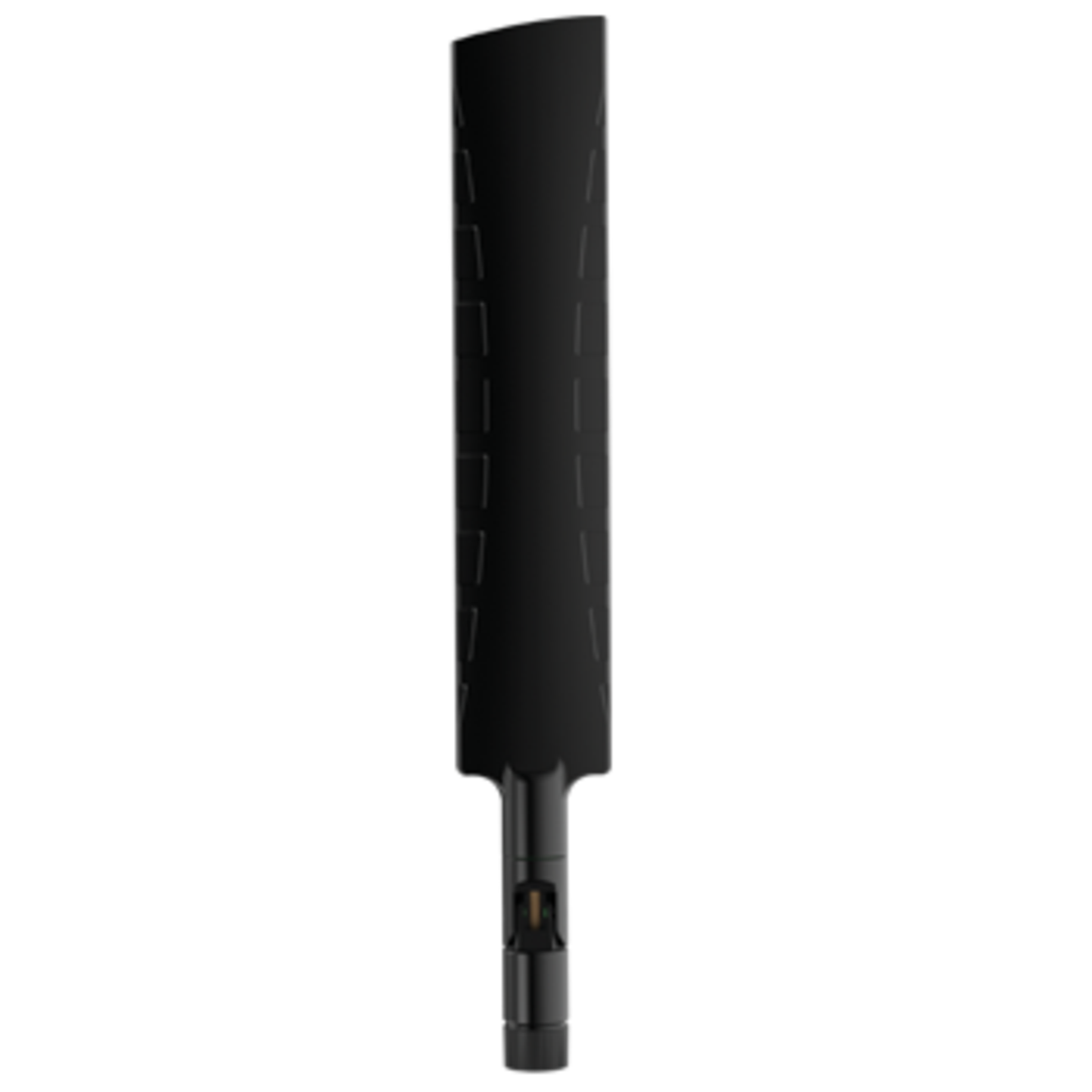

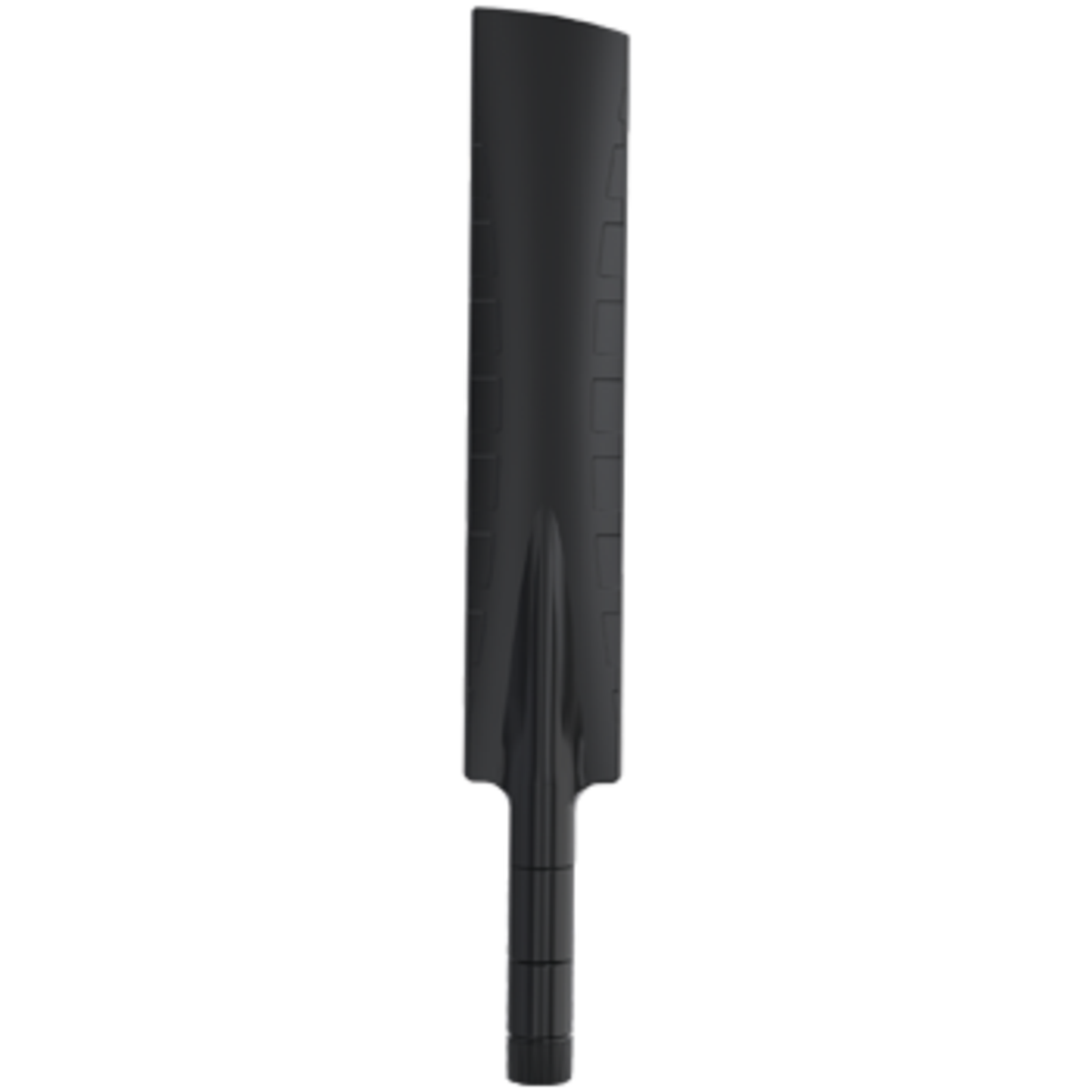

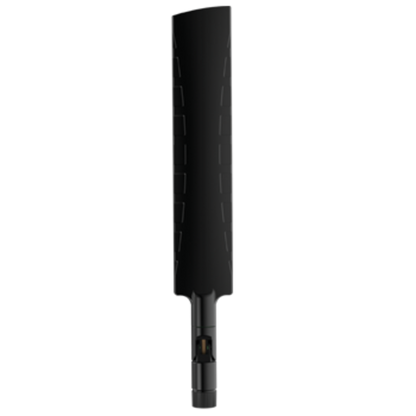

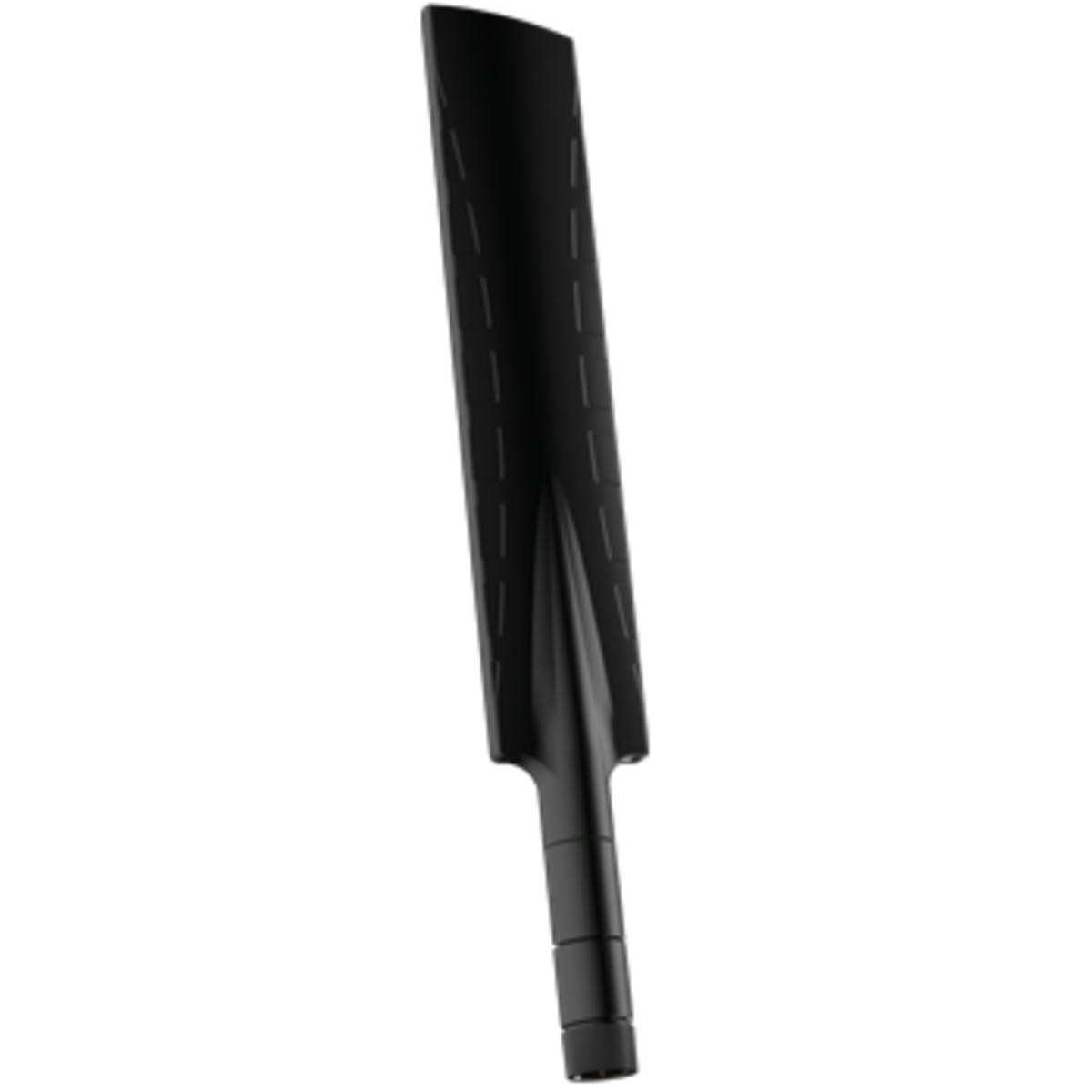

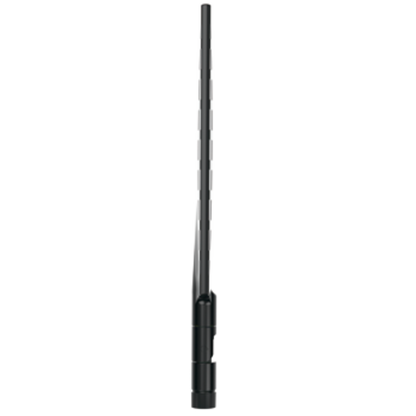

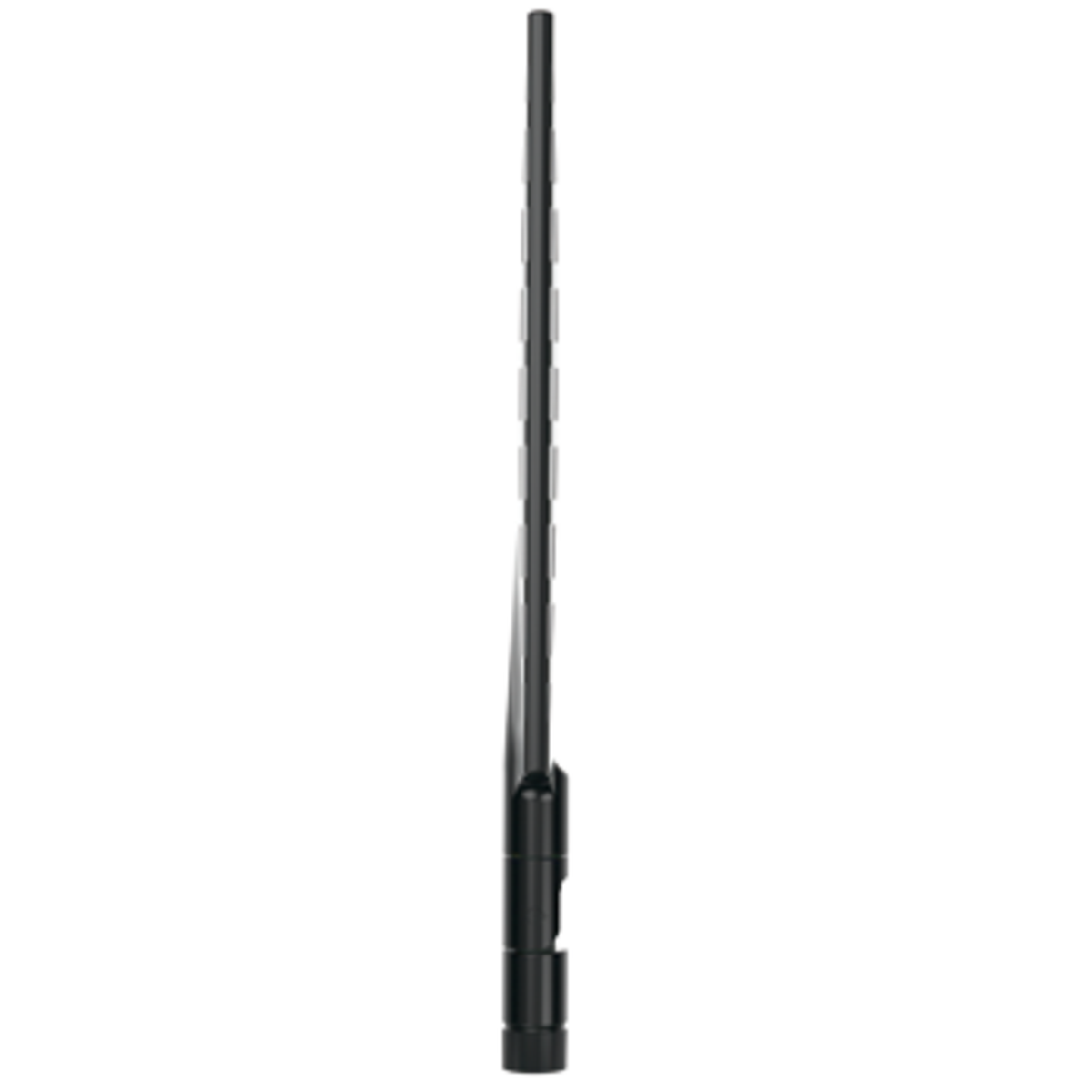

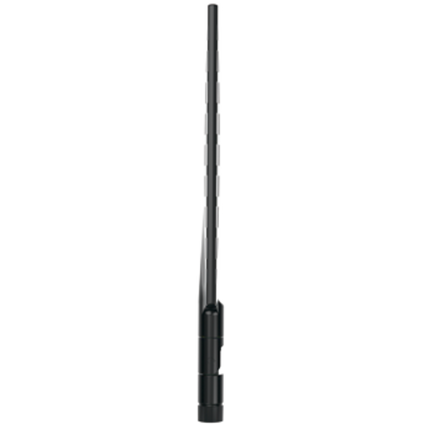

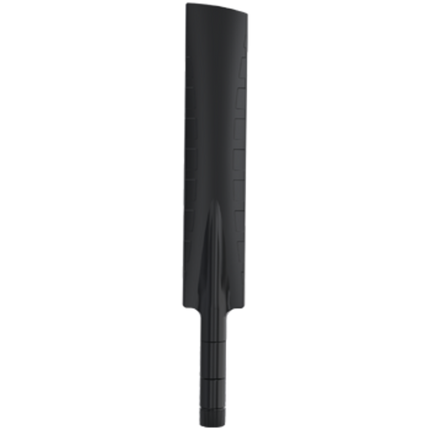

Poynting OMNI-85 5G/LTE Terminal Antenna, 3.5 dBi, SMA-Male

    Poynting OMNI-85 5G/LTE Terminal Antenna, 3.5 dBi, SMA-Male

      Product form
      Brand:
      Item ID:
      168059499
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      A-OMNI-0085-V3-01

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy

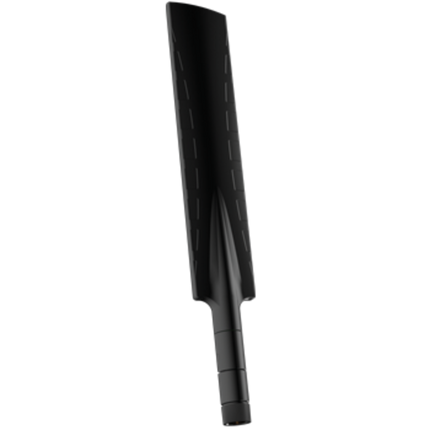

      Poynting OMNI-85 Wideband Router/Equipment Mount 5G/LTE Antenna (617 - 3800 MHz), covers 4G/LTE and future 5G bands with its portable design and versatile deployment angles.

      $30.70

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.
      • Pay securely! All major cards accepted.

        shop pay

      Product Description

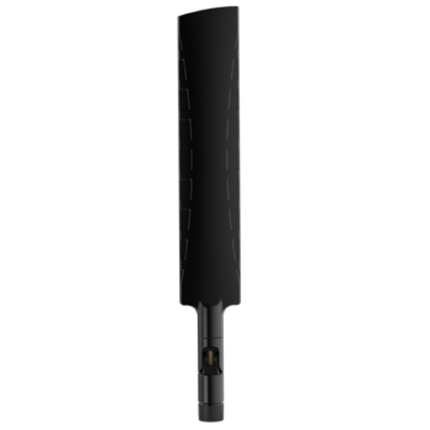

      Poynting OMNI-85 V3, the third generation of their popular router/equipment mount antenna. This Wideband Router/Equipment Mount 5G/LTE Antenna (617 - 3800 MHz) offers unparalleled performance, covering all contemporary 4G/LTE and future 5G frequency bands. Its ground plane independence and SMA female connector compatibility make it versatile and easy to install on any equipment.

      Product Features:

      • It provides 360° coverage, delivering enhanced signal reception.
      • It covers frequencies from 617 MHz to 3800 MHz, ensuring comprehensive connectivity.
      • It can be mounted directly onto equipment without requiring a ground plane.
      • It allows deployment at multiple angles to accommodate various equipment orientations.
      • The design is ideal for on-the-go implementations and rapid deployments.

      Application Areas:

      • It is designed for easy transport and quick setup in any location.
      • It increases overall system reliability by maintaining a stable connection.
      • It is perfect for locations on the edge of 4G/LTE coverage, providing dependable connectivity.
      • Its wideband design eliminates the need for a different antenna with each network operator.

      In the Box:

      • 1x Poynting OMNI-85 5G/LTE Terminal Antenna

      Documents:

      Poynting OMNI-85 Antenna - Datasheet

      Product Specifications

      MPN A-OMNI-0085-V3-01
      Antenna application Terminal Antenna
      Antenna configuration SISO
      Antenna port connectors SMA (M)
      Antenna type Omni
      Brands Poynting
      Connector SMA(M)
      Coverage type Omni-directional
      Frequency band Multi-Band 700 to 3800
      Frequency mhz 617-3800
      Frequency range mhz 1710 - 2170, 2300 - 2700, 3400 - 3800, 1427 - 1517, 617 - 960
      Height 1.6
      Ingress protection ip IP55
      Installation type Device mounting
      Ip rating IP55
      GTIN/EAN 6009710921098
      Length 25
      Low pim No
      Max frequency mhz 3800
      Max gain dbd dbi 3.5
      Mimo support No
      Min frequency mhz 617
      Min gain dbd dbi 0
      Mount supported Screw mount
      Mount supported detailed Screw mount
      Mounting area Screw On
      No of antenna ports 1
      Nominal gain dbi 3.5
      Operating temperature c -40 to +70
      Polarisation Vertical
      Power w 10
      Technologies supported 2G, 3G, 4G, 5G
      Tuned bandwidth Full
      Vswr < 2.5:1
      Width 4.5
      Width mm 13
