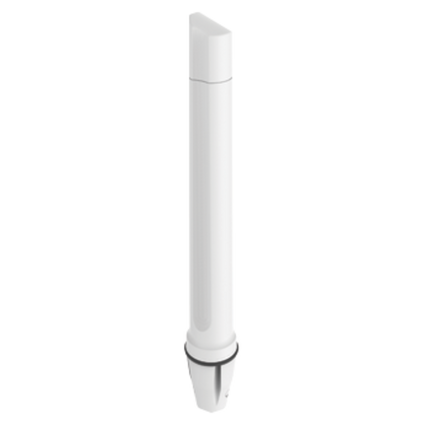

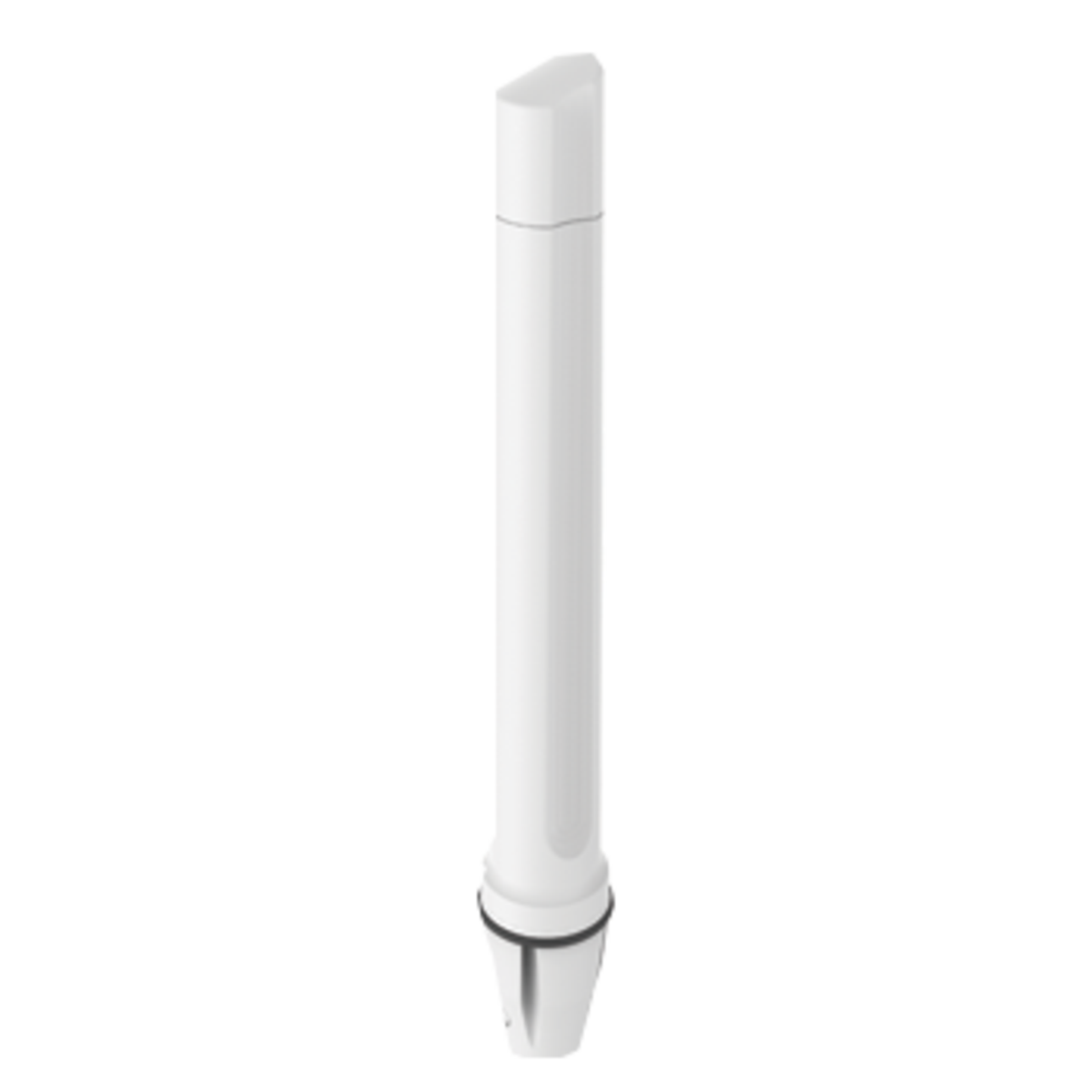

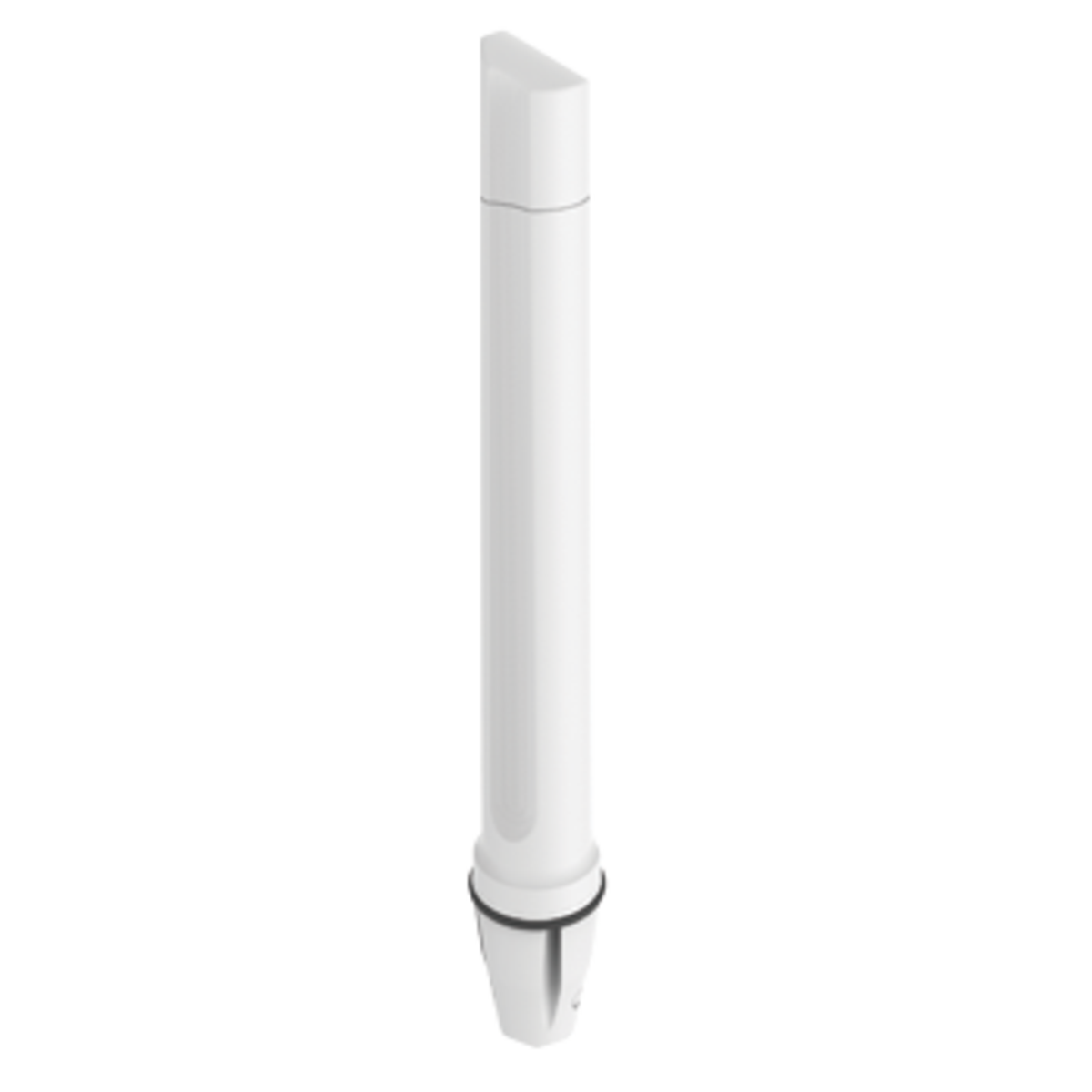

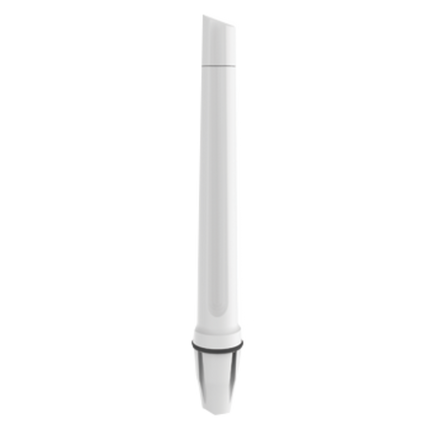

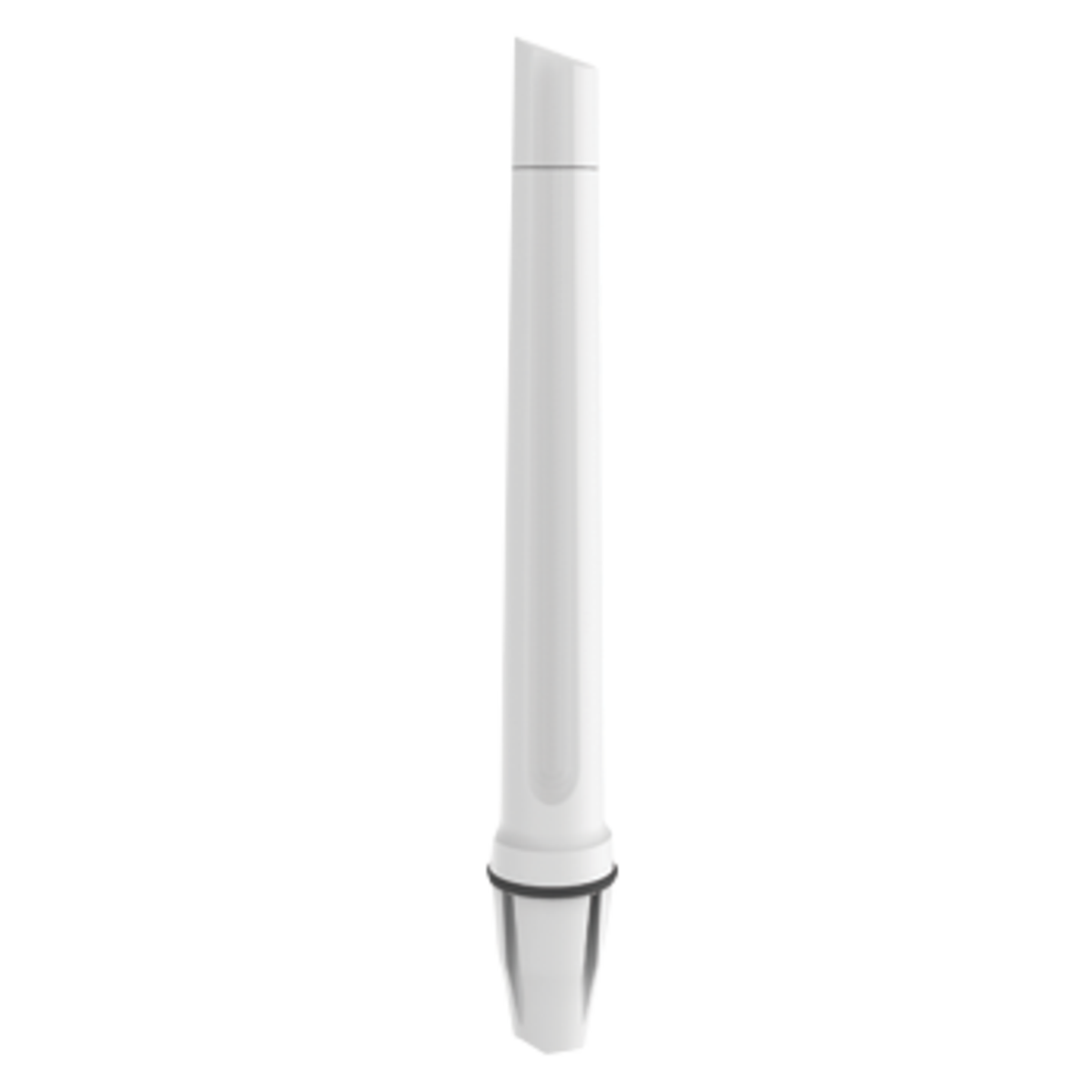

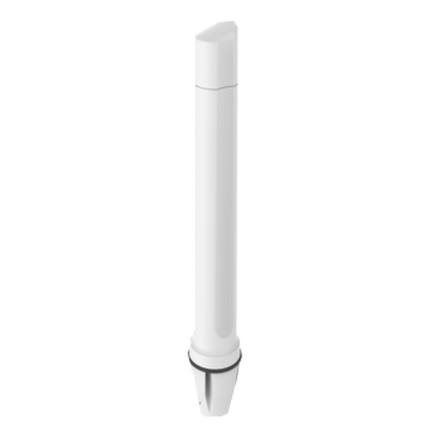

Poynting OMNI-291, is a high-performance antenna and designed for maritime applications. Poynting Omni Directional LTE Marine & Coastal Antenna (450 - 2700 MHz); 7 dBi (White) is featuring a standard 1-inch (14 TPI) marine mount for easy installation. This antenna covers a wide frequency band, including LTE and CDMA 450 MHz bands, ensuring balanced gain across all frequencies. Its innovative design, utilizing multiple dipoles and a patented feed network, provides superior pattern control for true omni-directional performance. The OMNI-291 ensures reception almost everywhere along the coast, allowing it to be usable in all parts of the world. The antenna is future proof as it covers the 450 MHz LTE frequency getting more and more popular in various regions and countries!
Product Features:
- The antenna provides medium-gain, omni-directional coverage to ensure reliable reception along coastlines.
- It is purpose-built for marine and coastal applications, meeting the rigorous demands of maritime environments.
- The UV- and saltwater-resistant enclosure protects against corrosion and prolonged exposure to harsh sea conditions.
- Its robust, weather-resistant design ensures dependable performance even in challenging weather.
- The antenna operates in the 2.4-2.5 GHz Wi-Fi band to deliver enhanced wireless connectivity for onboard systems.
Application Areas:
- It is ideal for marine vessels, including yachts, boats, and ferries, that require stable connectivity at sea.
- The antenna enhances LTE reception to improve maritime broadband performance.
- It supports IoT and M2M deployments in marine environments for telemetry and remote monitoring.
- It improves data reception in areas of poor signal strength, ensuring consistent communications at sea.
- It increases the reliability and stability of data transmissions for critical maritime operations.
- It provides onboard Wi-Fi connectivity for passengers and crew on ships and boats.
In the Box:
- Poynting A-OMNI-0291-V2 Antenna - White
Documents:
Poynting OMNI-291 Antenna - Datasheet
Videos:
Poynting OMNI-291 Antenna - Product Overview
Poynting OMNI-291 Antenna - Radiation Pattern
