The Pulse 330-K Professional Coaxial Cable Preparation and Termination Kit is a comprehensive toolset designed for efficient crimping, cutting, and stripping of coaxial cables. It includes multiple interchangeable die sets to accommodate a variety of connector types. Packaged in a durable plastic case, the 330-K kit allowing technicians to perform professional-grade terminations with precision and ease.

Product Features:

• This complete crimping solution includes a ratchet crimping tool equipped with multiple interchangeable die sets.
• Designed for broad cable compatibility, it supports RG58, RG59, RG213, RG223, RG214, RG400, and more.
• For professional-grade cable preparation, the set features a 2-blade coaxial cable stripper.
• The durable cable cutter efficiently handles cables with an outer diameter of up to 10.5mm (0.041�).
• The tools include ergonomic grip handles that minimize hand fatigue during extended use.
• To enhance convenience, the entire set is housed in a robust plastic storage case.
• Cable Stripper HT-332 (2-blade model) for RG58, RG59, RG62, RG6, RG6QS, 3C, 4C, 5C cables.
• Cable Cutter HT-206, suitable for cable O.D. up to 10.5mm (0.041").

Application Areas:

• RF and coaxial cable installation and maintenance.
• Telecommunications and networking applications.
• Broadcast and satellite communication setups.
• Industrial and commercial cable termination.

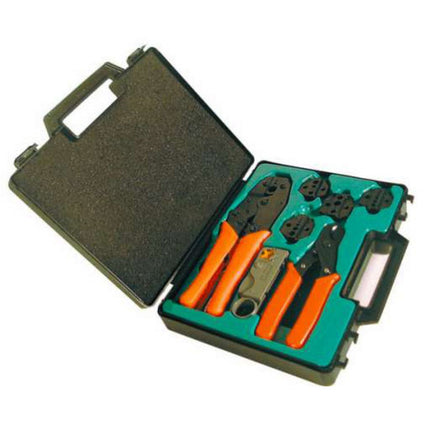

In the Box:

• 1 x HT-336A4 Ratchet Crimping Tool with HT-3A4 Die Set.
• 4 x Extra Die Sets (HT-3C, HT-3G, HT-3J, HT-3K).
• 1 x HT-332 Coaxial Cable Stripper.
• 1 x HT-206 Cable Cutter.
• 1 x Screwdriver.
• 1 x Heavy-Duty Plastic Storage Case.

Crimp Tool Dimensions:

Crimp Set		Hex Dimensions (Outer Conductor)			Hex/Square Dimensions (Centre Conductor)			Typical Cable Sizes Using Crimp Set
A		5.41			1.69			RG58, 9001, 9006, RG142, RG223, RG400
B		6.48			1.69			RG59, RG62
C		10.54			2.54			RG213
D		10.9			2.54			RG214, RG63
E		3.25			0.72			RG174, RG63, RG179

Cross Reference to Crimp Dies:

Cable Type	ERMA Crimp Code	Hex mm	Hex inch	Centre Crimp mm	Centre Crimp inch	Length mm	RCT-330K
RG58C/U	HFD	5.41	0.213	1.69	0.067	8	A or G
RG59C/U	XH	6.48	0.255	1.69	0.067	8	A or G
RG62A/U	XH	6.48	0.255	1.69	0.067	8	A or G
RG63B/U	HIA	10.9	0.429	2.54	0.100	10	K
RG142B/U	HFD	5.41	0.213	1.69	0.067	8	A or G
RG174A/U	XCF	3.25	0.128	0.72	0.028	8	J outer only
RG178B/U	XB	2.67	0.105	0.72	0.028	8	J outer only
RG179B/U	XCF	3.25	0.128	0.72	0.028	8	J outer only
RG213/U	HIA	10.54	0.415	2.54	0.100	10	K
RG214/U	HIA	10.9	0.429	2.54	0.100	10	K
RG223/U	HFD	5.41	0.213	1.69	0.067	8	A or G
RG316/U	XCF	3.25	0.128	0.72	0.028	8	J outer only
RG400/U	HFD	5.41	0.213	1.69	0.067	8	A or G
