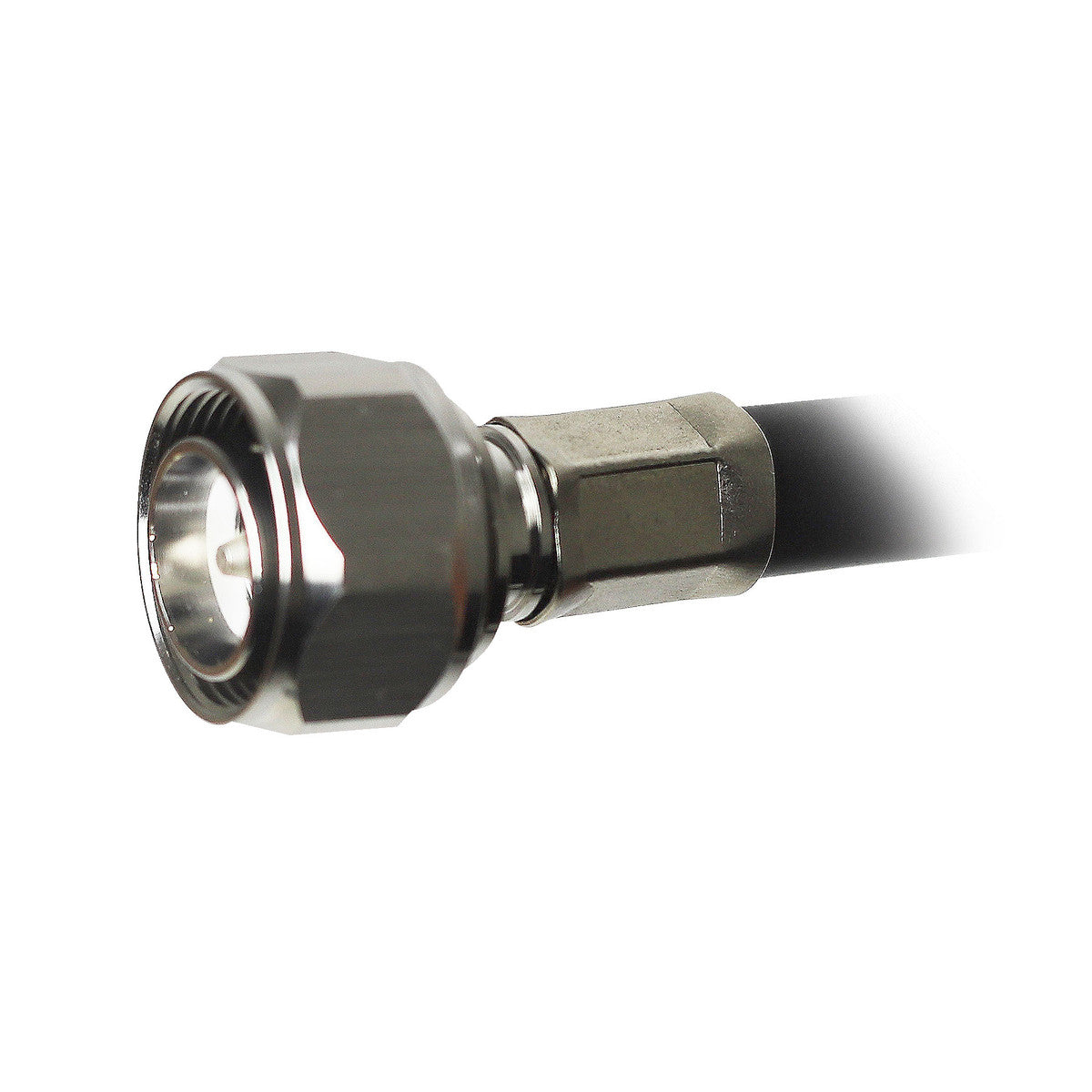

The Pulse D43-111 4.3-10-Male Connector is designed for versatile RF applications, providing a reliable connection for CNT400 cables. This connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

• This connector features a solder/crimp connection for CNT400 cables.
• The inner conductor pin is made of brass with silver plating.
• The outer contact and body are made of brass with trimetal plating.
• The insulator/dielectric is made of PTFE.
• The gasket is made of silicone rubber.
• The nut is made of brass with nickel plating.
• It has an impedance of 50 ohms.
• The frequency range is DC to 6 GHz.
• The dielectric withstanding voltage is 2500V rms (DC).
• The operating voltage is 900V rms.
• The model number is D43-111.
• The durability is rated at ≥ 500 matings.
• Suitable cables include LMR400, CNT400, and RG8.

Application Areas:

• This connector is ideal for use in RF communication systems.
• It is suitable for broadcast, telecom, and networking applications.
• The connector can be used in instrumentation and testing environments.
• It is perfect for applications requiring secure and stable connections for CNT400 cables.

In the Box:

• 1 x D43-111 4.3-10-Male Connector, Solder/Crimp.

Documents:

Pulse D43-111 Connector - Datasheet
