The Pulse 2x2 Hybrid Coupler is a broadband RF component. It provides low insertion loss, high isolation, and low Passive Intermodulation (PIM) performance. The 2x2 and 4x4 Pulse Hybrid Couplers cover cellular bands from 698 to 2700MHz and offering a low-cost solution with low loss Passive Inter Modulation and high isolation. Typically used to combine either in-band carriers or carriers across multiple bands to be fed into antenna feeders or in building Distributed Antenna Systems.

Product Features:

• Supports 698-2700 MHz, covering all major cellular bands.
• 4-Port Hybrid Coupler enables efficient signal combination and distribution.
• Low Insertion Loss maintains high signal efficiency.
• Good isolation (Ports 1 & 2) across full bandwidth >23 dB.
• Manufactured to a low PIM -150 dBc (3rd Order 2x43 dBm carriers) rating.
• Rated at 100W per port.
• Also available in a 4x4 hybrid coupler version.

Application Areas:

• Cellular base stations and network infrastructure.
• In-building Distributed Antenna Systems (DAS).
• Carrier aggregation and multi-band signal distribution.
• Antenna feeder system integration.

In the Box:

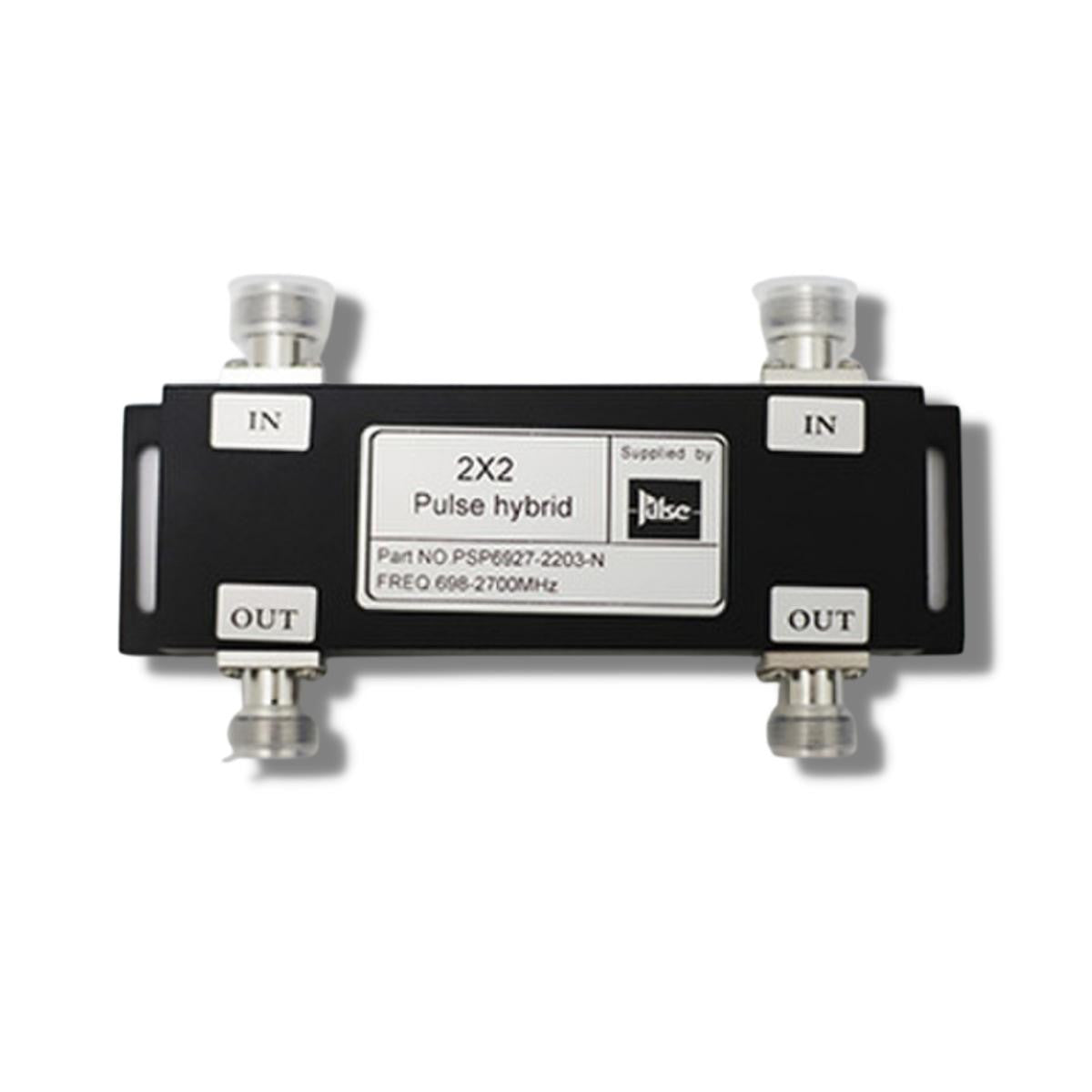

• Pulse PSP6927-2203-N 2x2 Hybrid Coupler, 3 dB, 698-2700 MHz, N-Female

Documents:

Pulse PSP6927-220x-N Hybrid Couplers - Datasheet
