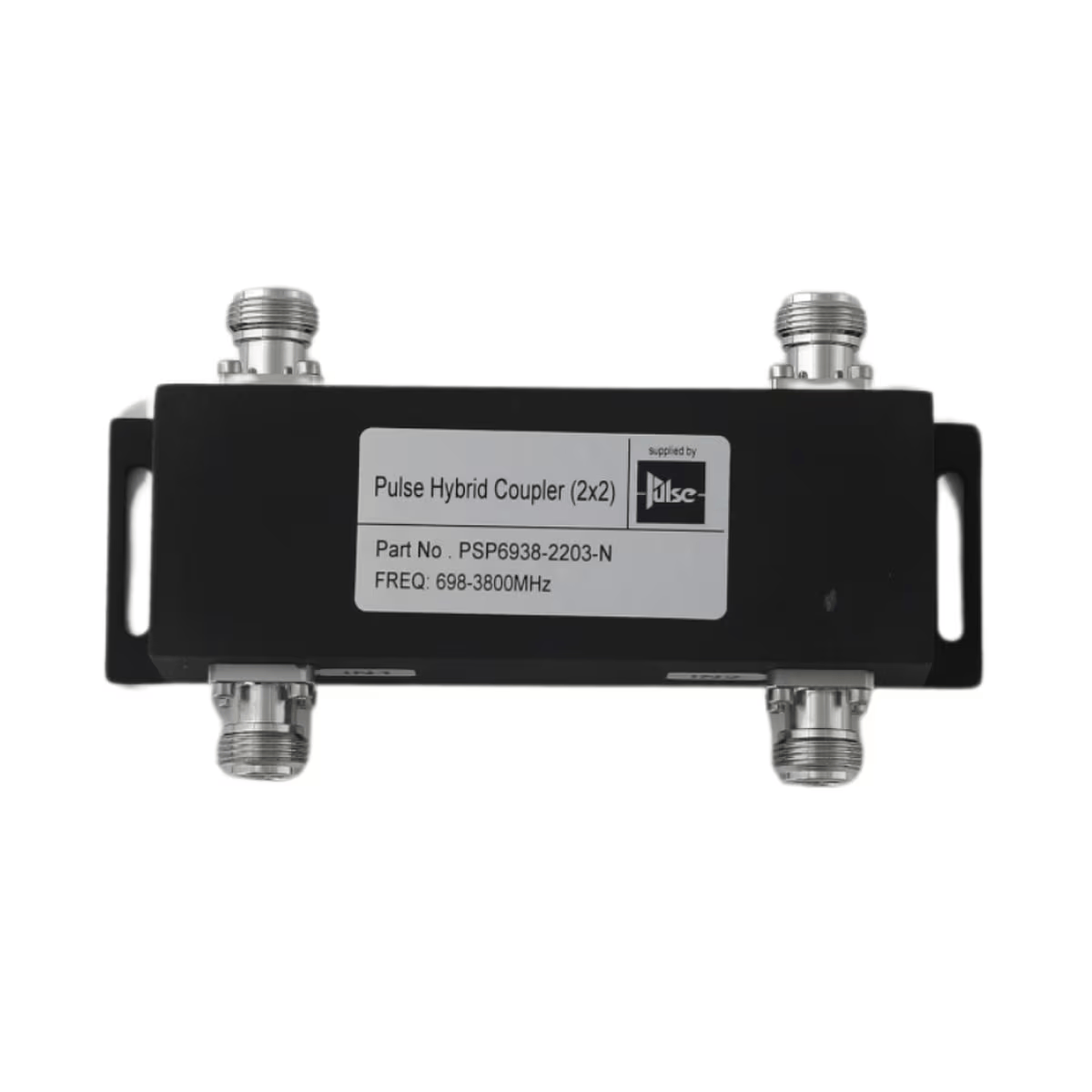

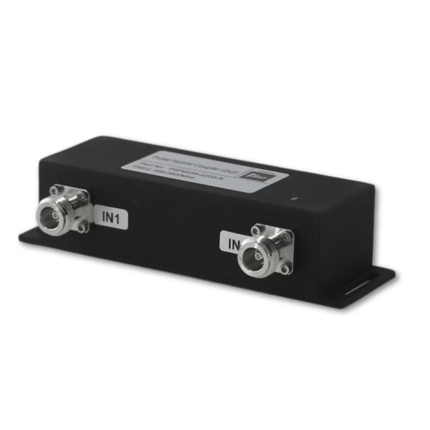

The Pulse PSP6938-2203-N is a wideband 4-port 2x2 hybrid combiner, designed for the 698-3800 MHz frequency range with N-female connectors. This device efficiently combines or splits RF signals while maintaining phase balance, making it ideal for multi-carrier, MIMO, and DAS applications.
Product Features:
- 4-port 2x2 hybrid combiner for balanced signal distribution.
- Wideband frequency range (698-3800 MHz) for versatile use.
- N-female connectors for secure and reliable connections.
- High isolation between ports to minimize interference.
- Low insertion loss and excellent return loss characteristics.
- Passive design with high power handling capability.
Application Areas:
- Multi-carrier and MIMO wireless networks.
- Distributed Antenna Systems (DAS) for in-building coverage.
- Public safety and emergency communication systems.
- RF signal distribution and power combining.
- 5G, LTE, and Wi-Fi network infrastructure.
In the Box:
- 1 x Pulse PSP6938-2203-N Wideband 4-Port 2x2 Hybrid Combiner.
Documents:
Pulse PSP6938-2203-N Combiner - Datasheet
