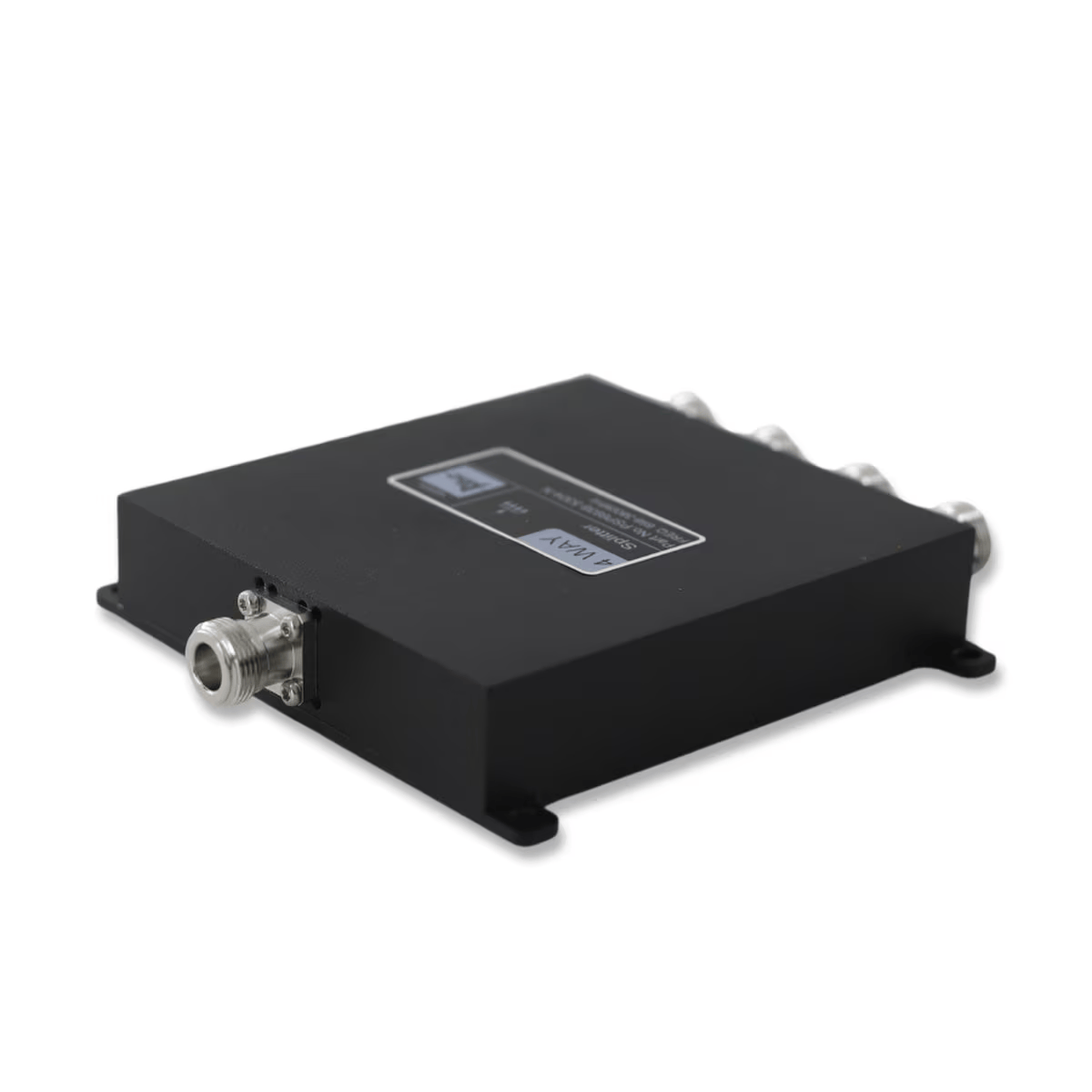

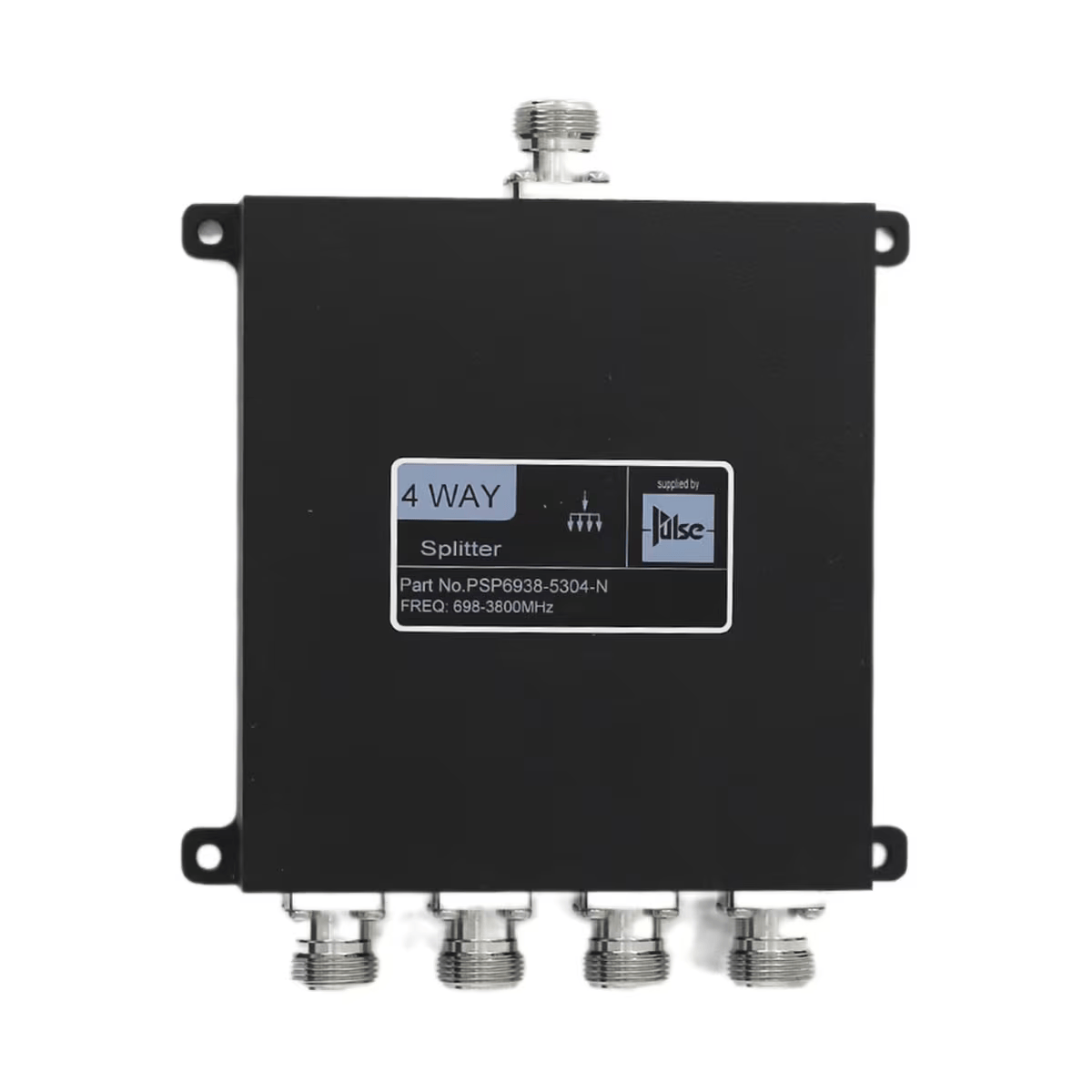

Pulse PSP6938-5304-N Wideband 4-Way Wilkinson Splitter/Combiner is a versatile device that evenly splits RF input signals into four output ports while maintaining high isolation between the output ports. It covers the frequency range of 698-3800 MHz and is equipped with N (F) connectors. This splitter/combiner is suitable for both dividing and combining signals, offering flexibility in communication and RF systems. All ports need to be connected to 50 Ohms. Any unused ports should terminate with a dummy resistive coaxial load or cable load.

Product Features:

• It is suitable for a variety of RF applications with wide frequency range 698-3800 MHz.
• N (F) connectors for secure and reliable RF connections.
• Four output ports for even signal distribution.
• High output port-to-port isolation for minimizing signal interference.
• Can be used for both signal splitting and combining with proper power management.
• Ideal for RF signal distribution and communication systems where isolation is critical.

Application Areas:

• Used in applications that require both signal splitting and combining.
• Suitable for RF communication systems, testing, and research environments.
• Ideal for systems where high isolation and efficient signal division are necessary.

In the Box:

• 1 x Pulse PSP6938-5304-N Wideband 4-Way Wilkinson Splitter/Combiner.

Documents:

Pulse PSP6938-5304-N 4-way Splitter - Datasheet
