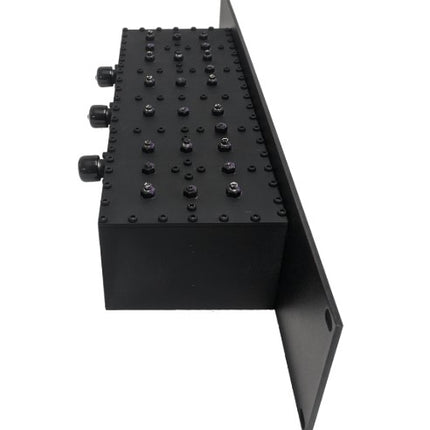

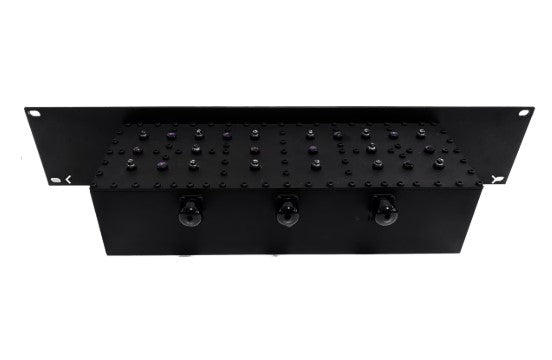

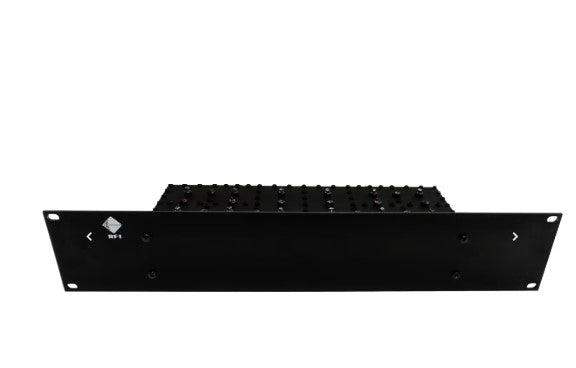

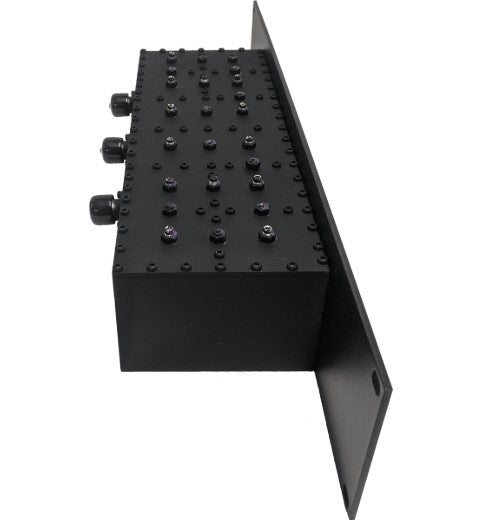

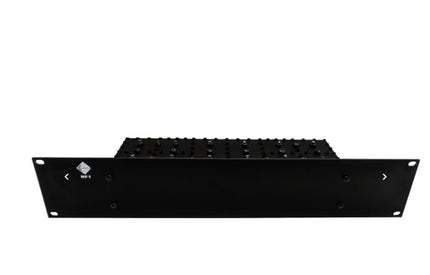

The RFI DP3840-0806-32 Band Pass Duplexer operates in the 380-400 MHz frequency range, with a 5 MHz passband, 4 MHz transmit/receive bandwidth, and supports up to 100W of power. It is housed in a 2RU chassis and features N(F) connectors. RFI's range of compact multi-resonator milled aluminium band pass duplexers are ideal for use where space is restricted or at a premium. The broad pass band characteristic, good duplex port to port isolation, high power and multi carrier capability make these ideal duplexers for either single carrier or combined multicarrier systems. The temperature stable resonators provide a wide operational temperature range ensuring important electrical specifications such as insertion loss and Tx port to Rx port isolation are maintained.

Product Features:

• Compact temperature stable design
• 5MHz Pass band Low & High ports
• 100W (CW) Power rating
• Low insertion loss ripple
• 2RU 19"Rack mount front panel
• Minimum 4MHz Tx to Rx Duplex split
• PIM and PIP rated

Application Areas:

• Public safety and emergency communication networks.
• Trunked radio systems requiring high isolation and low insertion loss.
• Multi-carrier transmission systems in commercial and industrial settings.
• Military and critical infrastructure radio communications.

In the Box:

• 1 x RFI DP3840-0806-32 Band Pass Duplexer

Documents:

RFI DP3840-0806-32 Band Pass Duplexer - Datasheet
