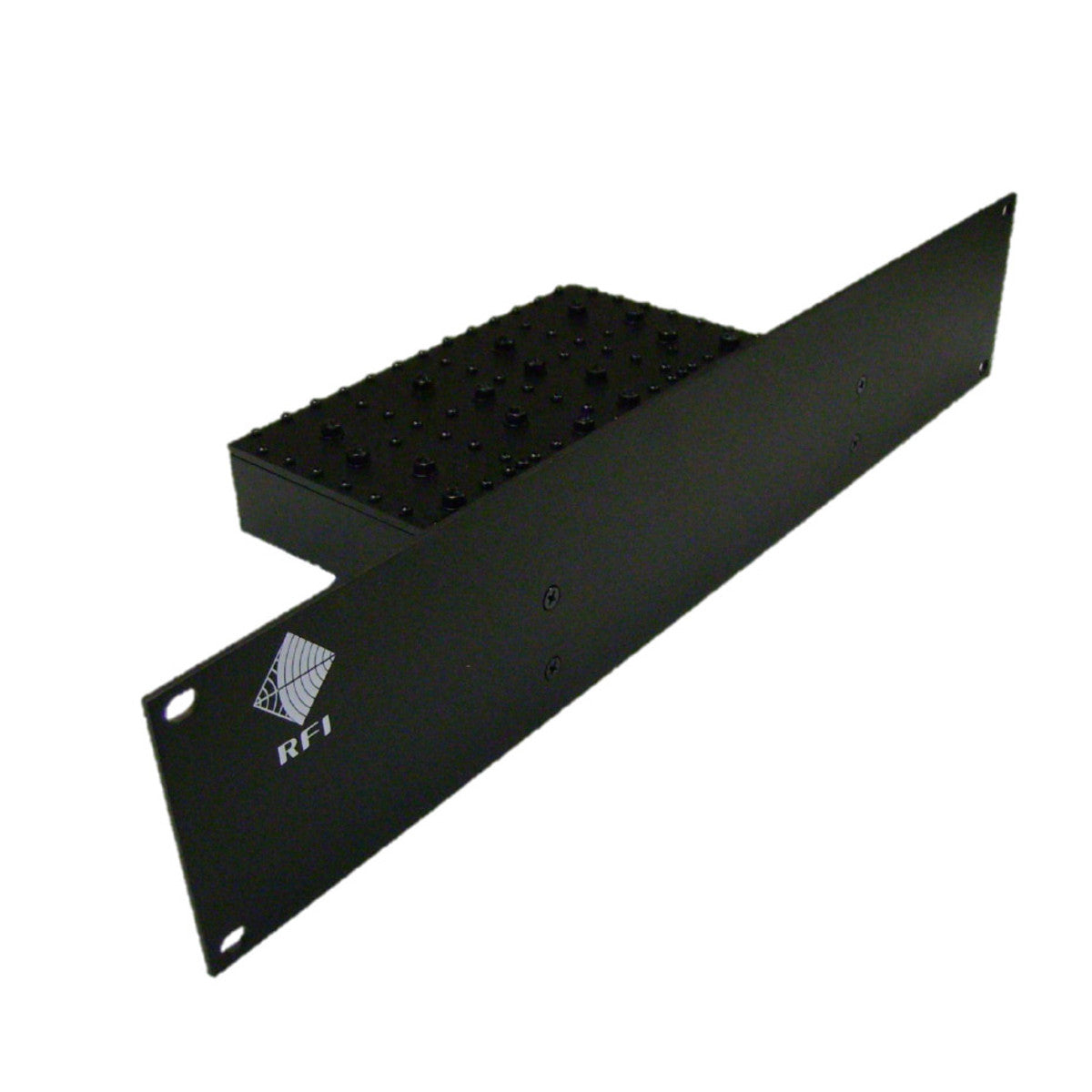

RFI's range of compact multi-resonator milled aluminium band pass duplexers are ideal for use where space is restricted or at a premium. The relatively broad pass band characteristic, good duplex port to port isolation, high power and multi-carrier capability make these ideal duplexers for either single carrier or combined multicarrier systems. The temperature stable resonators provide a wide operational temperature range ensuring important electrical specifications such as insertion loss and Tx port to Rx port isolation are maintained.

Features:

• Compact temperature stable design
• 2 MHz Pass band Low & High ports
• 200W (CW) Power rating
• Low insertion loss ripple
• 2RU 19'' Rack mount front panel
• 5-10 MHz Tx to Rx Duplex split

Documents:

RFI DP4042-0805-32 Duplexer - Datasheet
