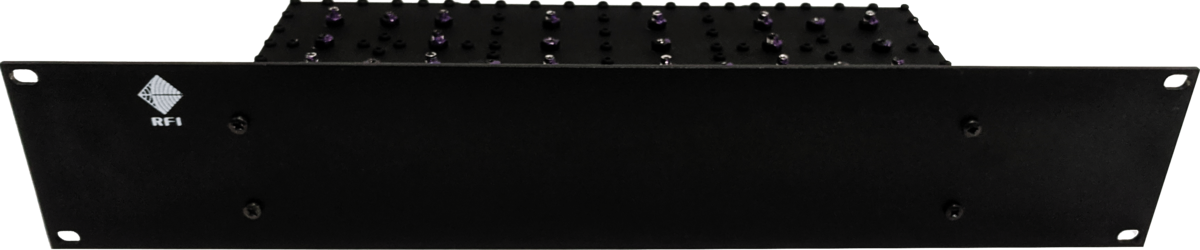

RFI DP4750-0811-32 Duplexer, Band Pass, 470-500 MHz, 1.5 MHz PB, 4 MHz T/R, 100W, 2RU, N-Female

    RFI DP4750-0811-32 Duplexer, Band Pass, 470-500 MHz, 1.5 MHz PB, 4 MHz T/R, 100W, 2RU, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      168028978
      MPN:
      DP4750-0811-32
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI Duplexer Bandpass 470-500 MHz; 1.5 MHz Pass Bandwidth; 4 MHz T/R; 100W; 2RU; N(F) - ideal for use where space is restricted or at a premium.

      $1,759.39

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      RFI Duplexer Bandpass 470-500 MHz; 1.5 MHz Pass Bandwidth; 4 MHz T/R; 100W; 2RU; N(F)

      RFI's range of compact multi-resonator milled aluminium band pass duplexers are ideal for use where space is restricted or at a premium. The broad pass band characteristic, good duplex port to port isolation, high power and multi carrier capability make these ideal duplexers for either single carrier or combined multicarrier systems. The temperature stable resonators provide a wide operational temperature range ensuring important electrical specifications such as insertion loss and Tx port to Rx port isolation are maintained.

      Features:

      • Compact temperature stable design
      • 1.5 MHz Pass band Low & High ports
      • 100W (CW) Power rating
      • Low insertion loss ripple
      • 2RU 19"Rack mount front panel
      • 4 to 5 MHz Tx to Rx Duplex split
      • PIM and PIP rated

      Documents:

      RFI DP4750-0811-32 Duplexer - Datasheet

      Product Specifications

      Brand RFI
      Length 10.7
      Width 48.3
      Height 8.89
      Component Type Duplexer
      Connector N(F)
      Duplexer Type Bandpass
      Frequency Band UHF
      Frequency Range [MHz] 470 - 500
      Insertion Loss dB 1.7(max)
      Return Loss [dB] 20(min)
      Temperature Range -30 to +60 C / -22 to +140 F
