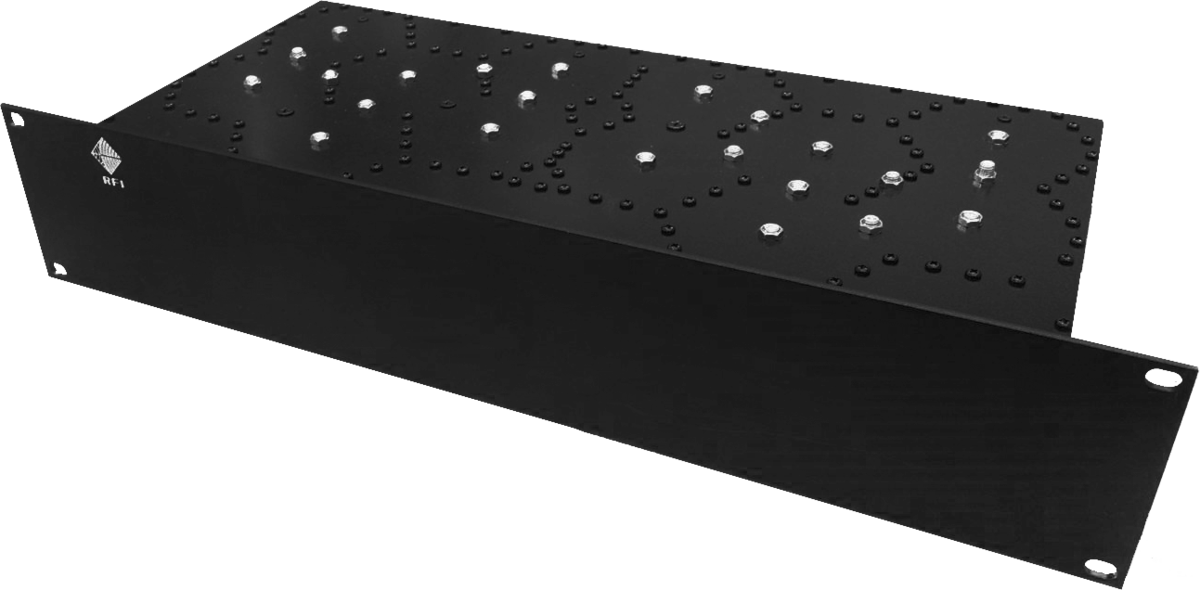

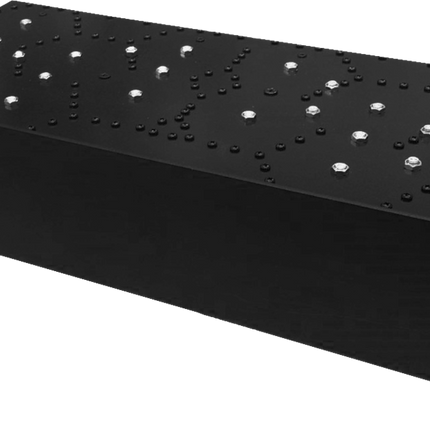

RFI DP4750-0800-32 Duplexer, Band Pass, 470-500 MHz, 3 MHz PB, 3 MHz T/R, 250W, 2RU, N-Female

    RFI DP4750-0800-32 Duplexer, Band Pass, 470-500 MHz, 3 MHz PB, 3 MHz T/R, 250W, 2RU, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      167028971
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      DP4750-0800-32
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI Duplexer Bandpass 470-500 MHz; 3 MHz Pass Bandwidth; 3 MHz T/R ;250W ;2RU; N(F) - are ideal for use where space is restricted or at a premium.

      Price on Application

      Product Description

      RFI Duplexer Bandpass 470-500 MHz; 3 MHz Pass Bandwidth; 3 MHz T/R ;250W ;2RU; N(F)

      Features:

      • Compact temperature stable design
      • 3 MHz Pass band Low & High ports
      • 250W (CW) Power rating
      • Low insertion loss ripple
      • 2RU 19'' Rack mount front panel
      • Minimum 3 MHz Tx to Rx Duplex split
      • PIM rated
      • Suitable for Multi-Carrier Operations*

      Documents:

      RFI DP4750-0800-32 Duplexer - Datasheet

      Product Specifications

      MPN DP4750-0800-32
      Brands RFI
      Component type Duplexer
      Connector N(F)
      Duplexer type Bandpass
      Frequency band UHF
      Frequency range mhz 470 - 500
      Height 8.89
      Insertion loss db 1.5(max)
      Length 48.3
      Minimum separation mhz 3
      Pass bandwidth 3
      Return loss db 18(min)
      Temperature range -30 to +60 C / -22 to +140 F
      Width 19.1
