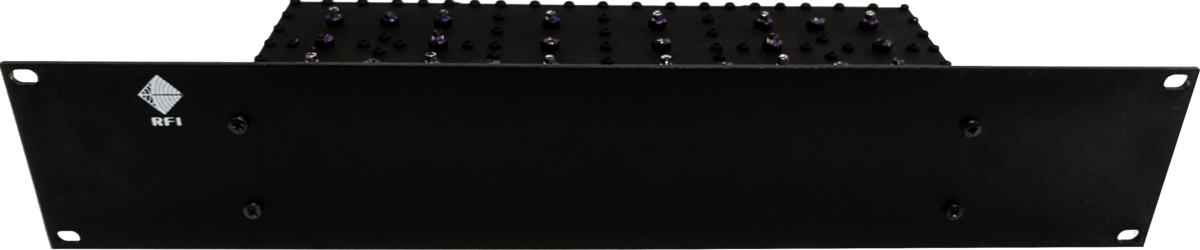

RFI DP5052-0811-32 Duplexer, Band Pass, 500-520 MHz, 1.5 MHz PB, 4 MHz T/R, 100W, 2RU, N-Female

Name: RFI DP5052-0811-32 Duplexer, Band Pass, 500-520 MHz, 1.5 MHz PB, 4 MHz T/R, 100W, 2RU, N-Female
Brand: RFI
SKU: 168028986
Price: 1700.0 AUD

Product form

Brand:

RFI

Item ID:

168028986

Export:

Accepted

Shipping:

Please contact us for lead time

Warranty:

Standard Warranty

Product Liability:

Global Insurance Except USA & Canada

Options/MPN:

DP5052-0811-32

Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy

RFI Duplexer Bandpass 500-520 MHz; 1.5 MHz Pass Bandwidth; 4 MHz T/R ;100W ;2RU; N(F) - ideal for use where space is restricted or at a premium.

$1,700.00

Taxes included. Shipping rate calculated at checkout.

Purchase Order & instructions box available at Cart page

Pay securely! All major cards accepted.

Product Description

RFI Duplexer Bandpass 500-520 MHz; 1.5 MHz Pass Bandwidth; 4 MHz T/R ;100W ;2RU; N(F)

RFI's range of compact multi-resonator milled aluminium band pass duplexers are ideal for use where space is restricted or at a premium. The broad pass band characteristic, good duplex port to port isolation, high power and multi carrier capability make these ideal duplexers for either single carrier or combined multicarrier systems. The temperature stable resonators provide a wide operational temperature range ensuring important electrical specifications such as insertion loss and Tx port to Rx port isolation are maintained.

Features:

Compact temperature stable design
1.5 MHz Pass band Low & High ports
100W (CW) Power rating
Low insertion loss ripple
2RU 19'' Rack mount front panel
4 to 5 MHz Tx to Rx Duplex split
PIM and PIP rated

Documents:

RFI DP5052-0811-32 Duplexer - Datasheet

Product Specifications

MPN	DP5052-0811-32
Brands	RFI
Component type	Duplexer
Connector	N(F)
Duplexer type	Bandpass
Frequency band	UHF
Frequency range mhz	520 - 520
Height	8.89
Insertion loss db	1.7(max)
Length	10.7
Minimum separation mhz	4
Pass bandwidth	1.5
Return loss db	20(min)
Temperature range	-30 to +60 C / -22 to +140 F
Width	48.3
