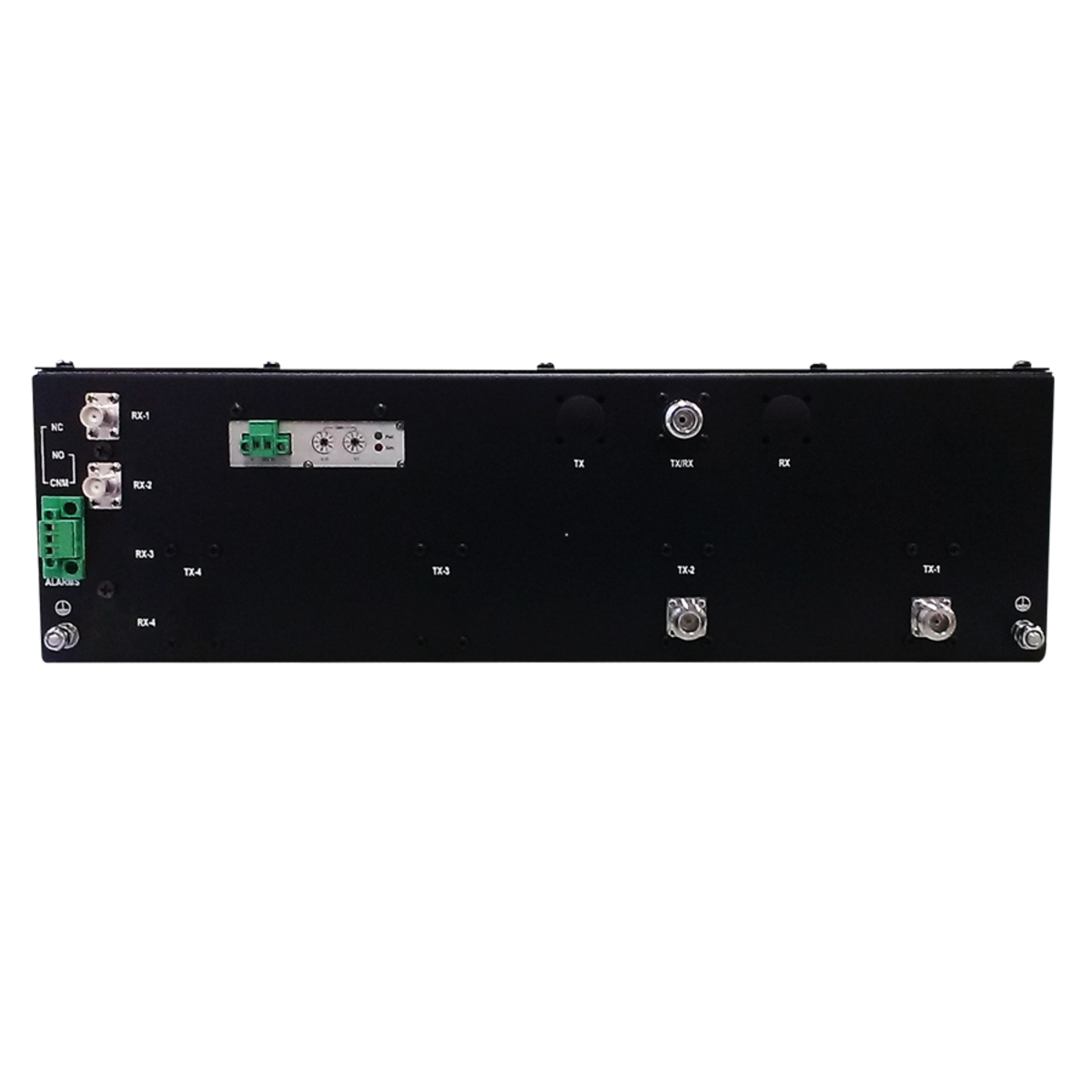

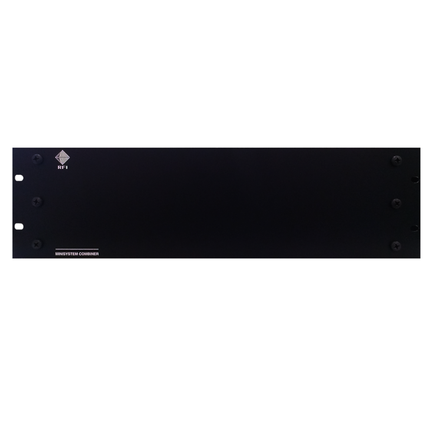

RFI MiniSystem 2 CH 800-870 MHz; 50W; Single Antenna Port

Features:

The MiniSystem Combiner (MSC) comprises a transmitter combiner using dual-stage isolators and innovative hybrid combining techniques to provide excellent Tx-Tx isolation and to minimise intermodulation (IM). An integral receive multicoupler uses a low-noise preamplifier featuring user-selectable gain and excellent 3OIP performance to ensure optimum system receive sensitivity is available. High quality bandpass filtering provides Rx preselectivity and Tx-Rx system isolation performance. Form-C relay alarm outputs provide alarm notification of DC power or Rx LNA amplifier failure.

• 2 channel capacity
• 50W Tx input power (per channel)
• 100% Tx Duty Cycle
• Open-circuit antenna port VSWR protection
• Low-noise receiver preamplifier (LNA)
• User-selectable Rx gain
• DC power and Rx LNA Fail alarm monitoring
• Compact 19in rack mounting

Documents:

RFI MiniSystem Combiner - Datasheet
RFI MiniSystem Combiner - Product Overview
RFI MiniSystem Combiner - Quick Start Guide
RFI MiniSystem Combiner - User Manual
RFI MiniSystem Combiner - Application Note
