RFI Receive Systems Module (Option For ASM) - 48 VDC
The Receive Systems Module (RSM) is an optional module that may be used with the Antenna System Monitor (ASM) to monitor two receive paths i.e. a dual diversity, dual Rx antennas, or hot/standby Rx antenna system. An isolated external off-air Rx path may also be monitored to facilitate additional ASM network monitoring functionality. Peak RF input levels are independently detected, monitored and alarmed for all RF inputs, allowing high RF signal levels that may be impacting Rx system performance to be detected, measured, reported and alarmed - assisting in fault-finding activities.

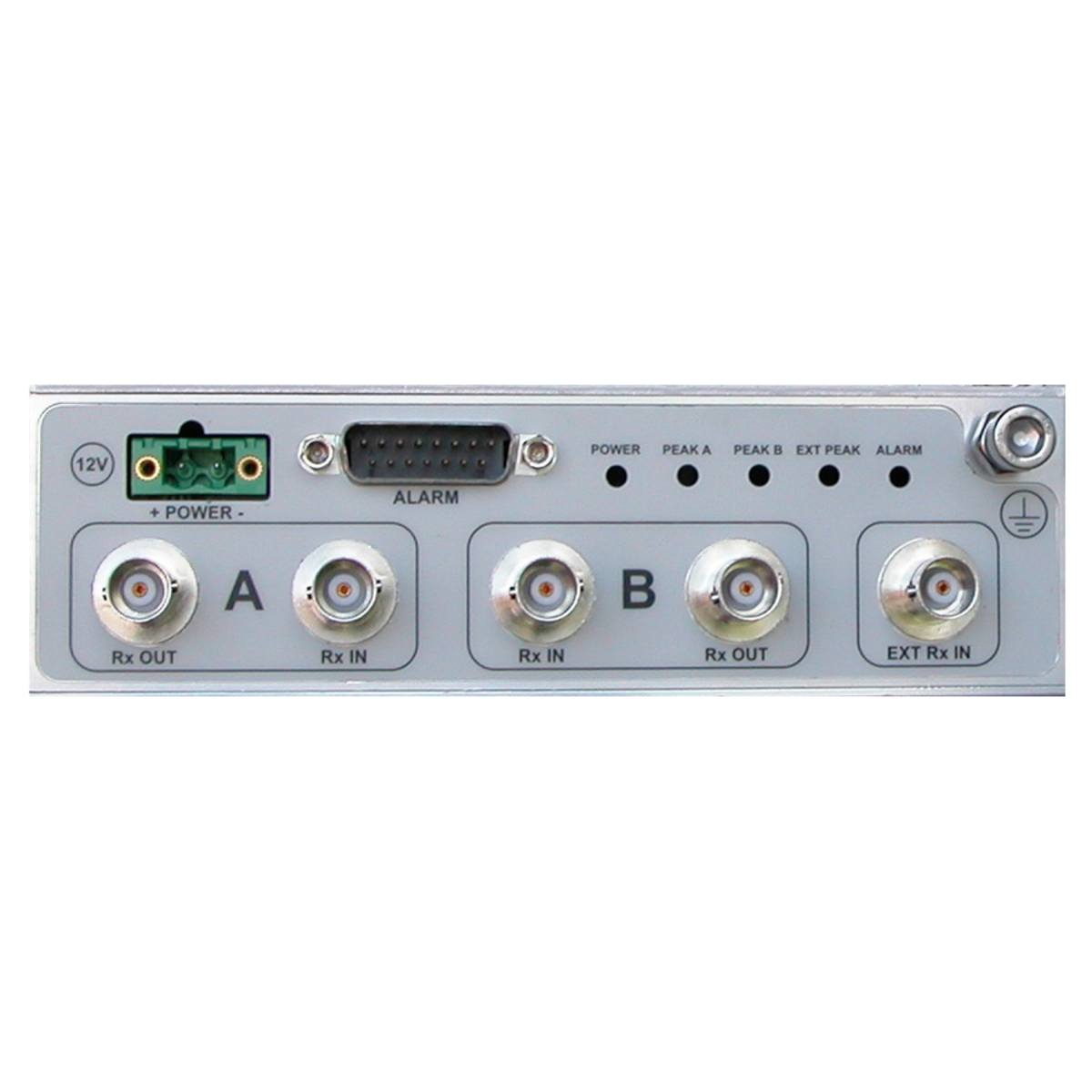

The RSM can be easily added to an ASM at any time, providing a network migration path from non-diversity to diversity technologies. When a RSM is connected to the ASM, the ASM will auto-detect its presence, displaying the respective RSM configuration pages via the ASM GUI (Graphical User Interface). Rear LED's provide a visual indication of the status of the Power, Rx Inputs levels and alarms.
- Dual Diversity Rx Antenna monitoring
- Two Rx Antennas (or Hot/Standby Rx Antennas) monitoring
- Isolated External ''Off-Air'' Rx Path monitoring
- Peak RF Input Levels detection, measurement and alarming
- Auto-detected by ASM

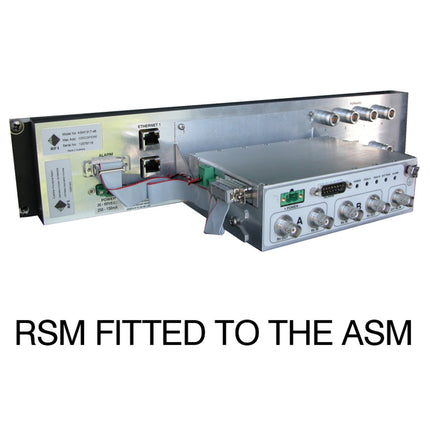

- Mounts on the rear of the ASM.
Documents:
RFI Receive System Module - Datasheet
RFI Receive System Module - Quick Start Guide
RFI Receive System Module - Application Note
