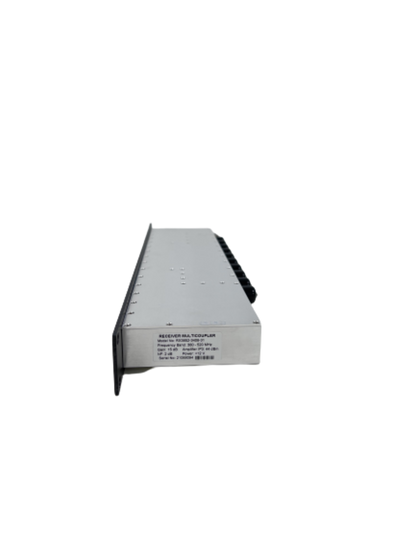

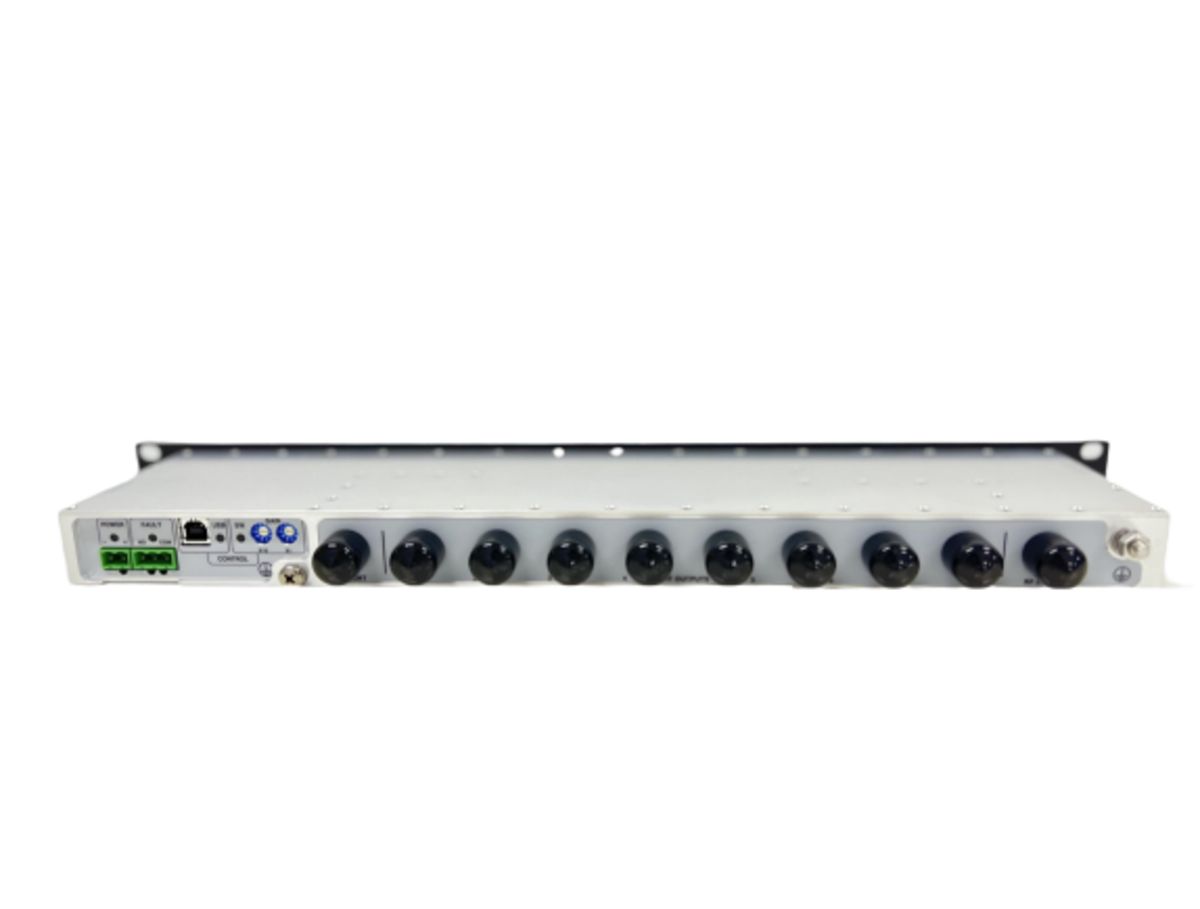

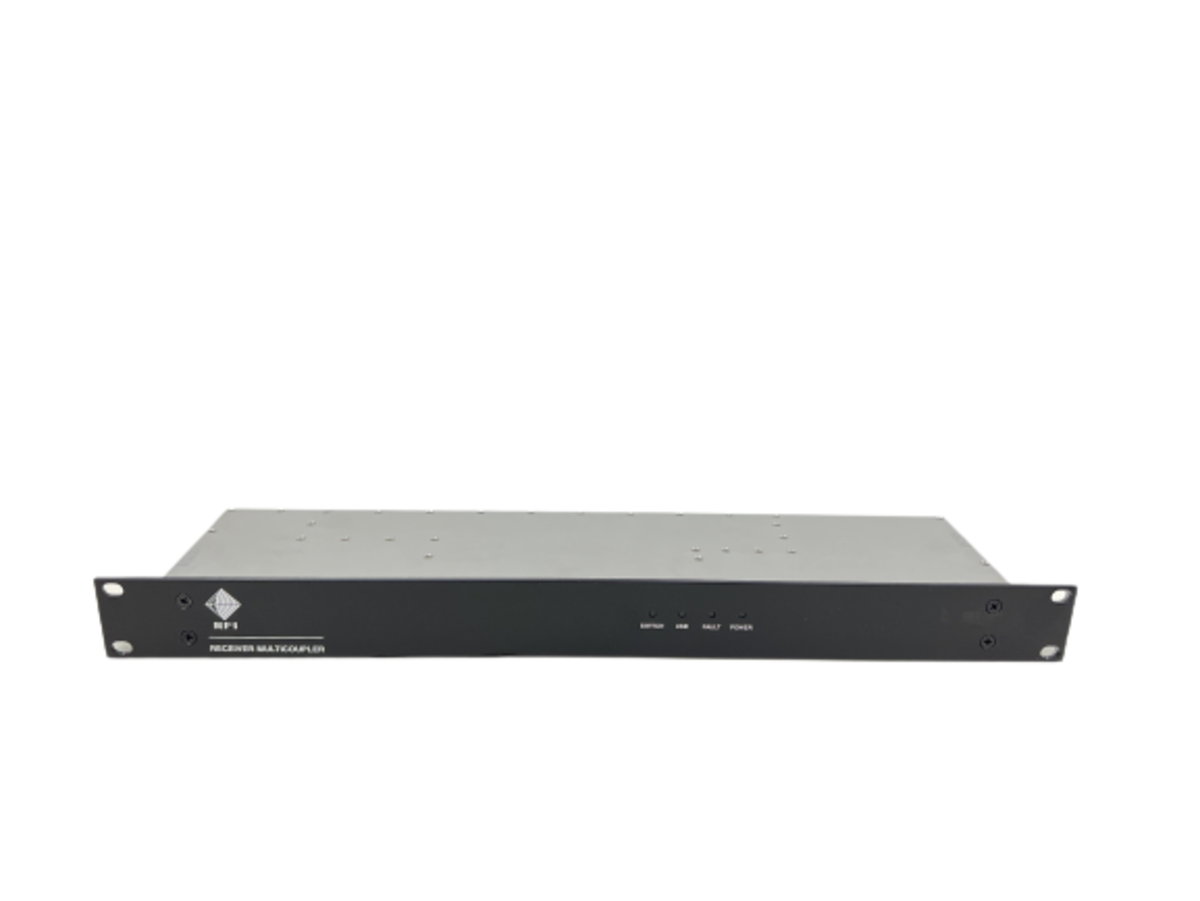

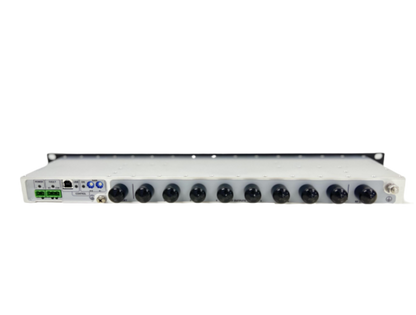

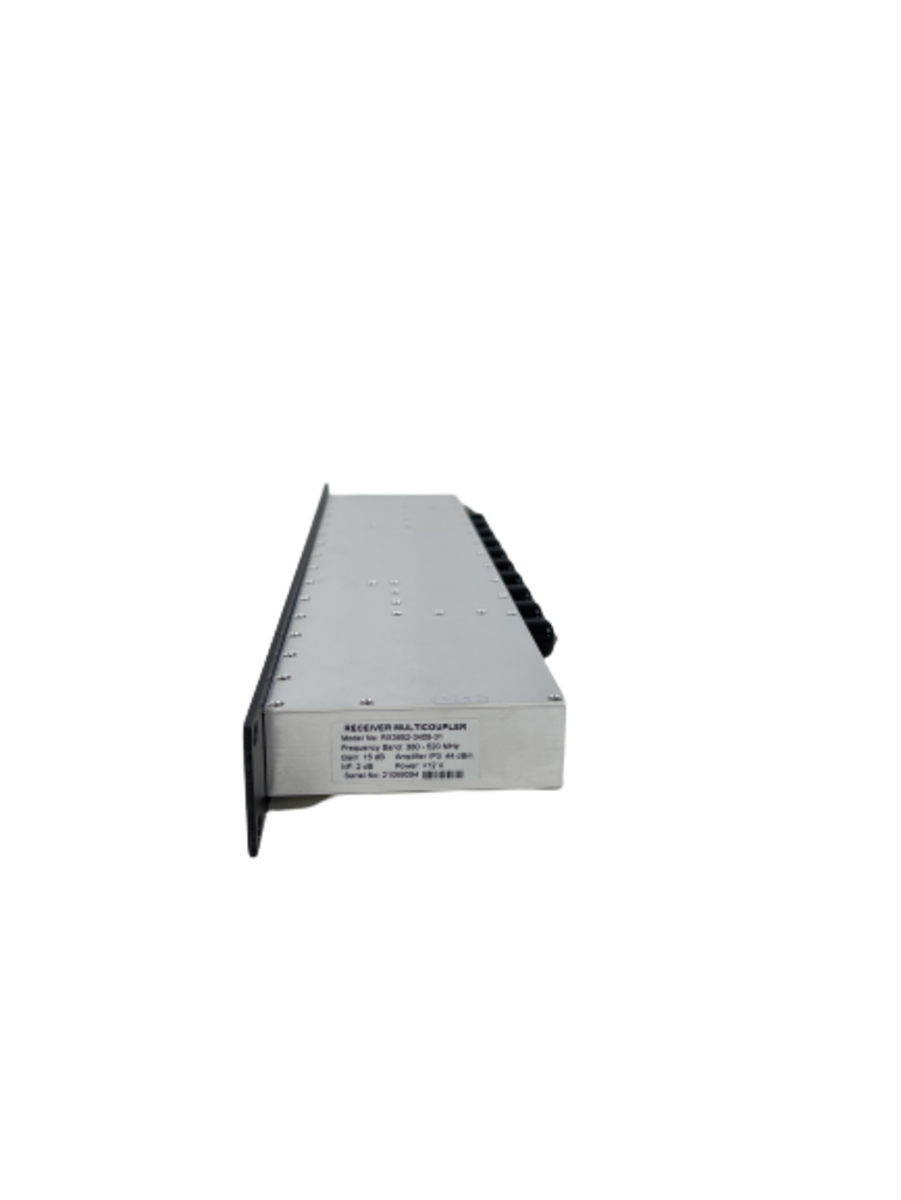

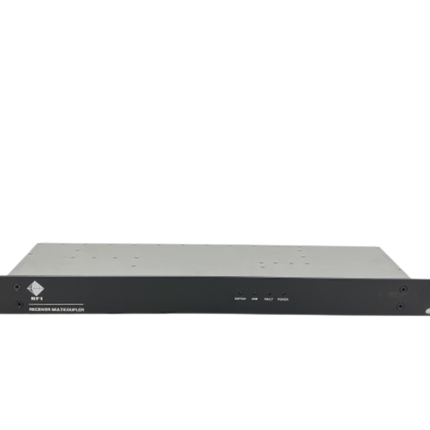

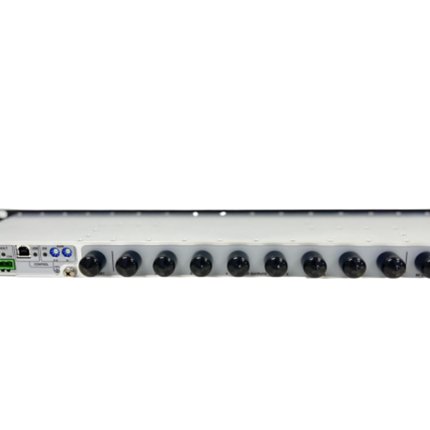

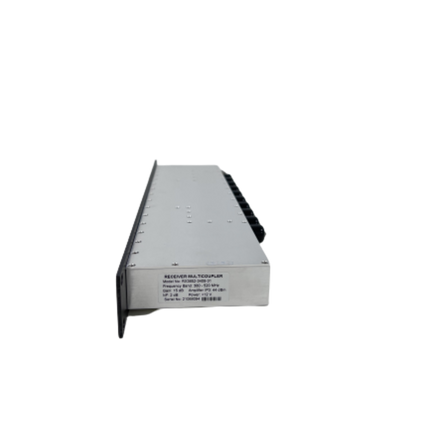

RFI RX3852-3408-31-24 Receiver Multicoupler, 220-550 MHz, 8-128 Way, 24 VDC, N-Female, 1RU

RFI RX3852-3408-31-24 Receiver Multicoupler, 220-550 MHz, 8-128 Way, 24 VDC, N-Female, 1RU

On backorder

Brand:
Item ID:
168030486
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
RX3852-3408-31-24
RFI Receiver Multicoupler 380-520 MHz (220-550 MHz) 8-128 Way; 24 VDC; N(F); 1RU is a broadband and expandable high performance receiver multicoupler.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

RFI Receiver Multicoupler 380-520 MHz (220-550 MHz) 8-128 Way; 24 VDC; N(F); 1RU

Used in both analogue and digital radio systems the receiver multicoupler utilises a low-noise, high 3OIP, redundant quadrature amplifier (LNA) design to enhance base station receiver performance. Outputs are provided for up to eight (8) receivers and an optional output to feed an expansion multicoupler. Expansion configurations are detailed in our Receiver Multicoupler Application

Features:

  • Low Noise Figure LNA offering excellent 3OIP performance
  • Auto-gain feature automatically restoring net system gain during partial amplifier failure
  • Compatible with both analogue and digital technologies
  • Manual or programmable gain setting
  • Integral status monitoring and alarm outputs
  • Broadband 380-520 MHz (220-550 MHz) operation
  • Facilitates easy expansion up to 128 output ports
Note. A user-enabled ''Auto-Gain'' feature compensates net system gain to maintain optimum system performance during a partial LNA failure. The operating gain can be manually programmed via rotary switches or configured via the communications port.

Documents:

RFI RX3852-3408-31-24 Receiver Multicoupler - Datasheet
RFI Receiver Multicoupler - Quick Start Guide
RFI RX3852-3408-31-24 Receiver Multicoupler - User Manual
RFI Receiver Multicoupler - Application Note

Product Specifications

MPN RX3852-3408-31-24
Brands RFI
Connector N(F)
Frequency band UHF
Frequency range mhz 380 - 520, 220 - 550
Height 4.4
Length 12
Power supply 18 to 36VDC
Receiver preselector freq VHF
Temperature range -30?C to +60?C / 22?F to 140?F
Width 48.3
