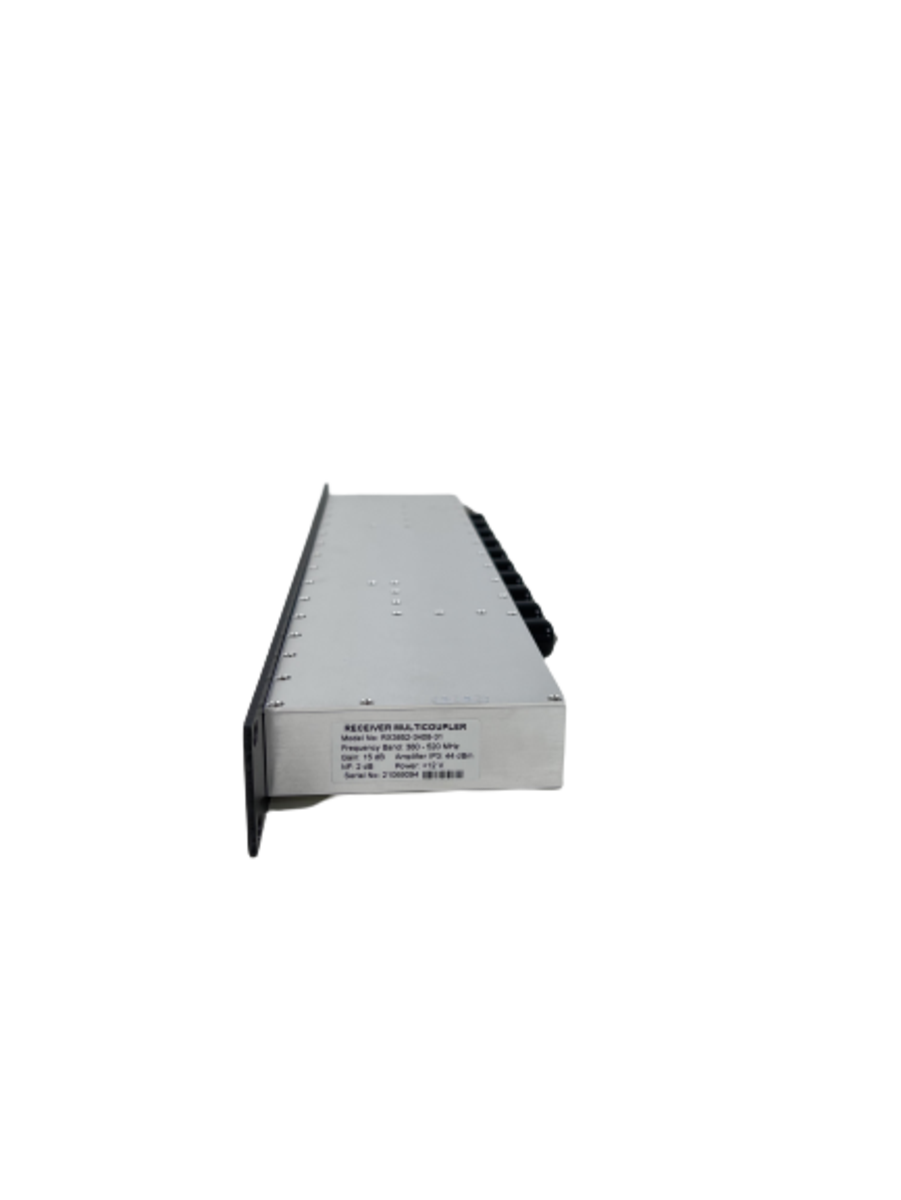

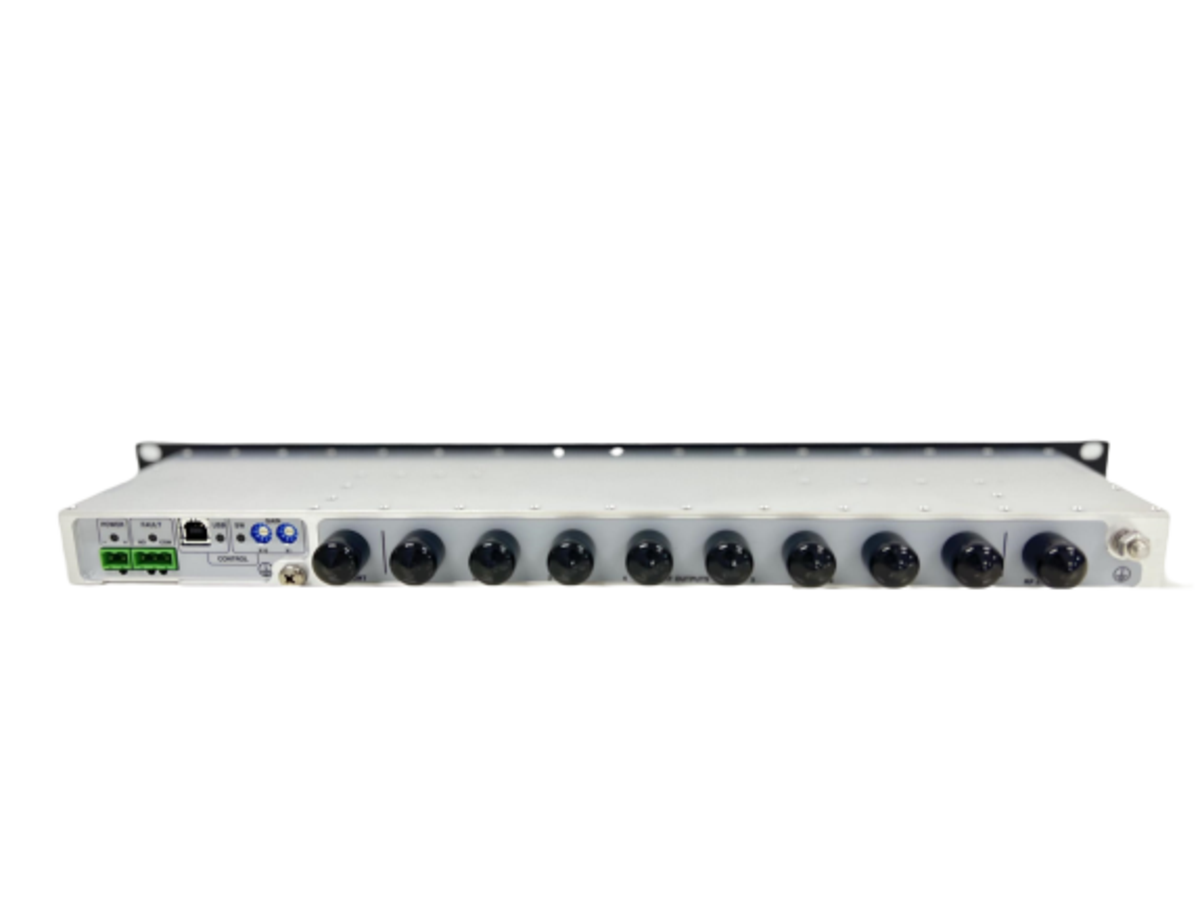

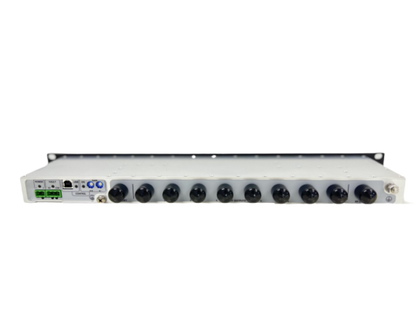

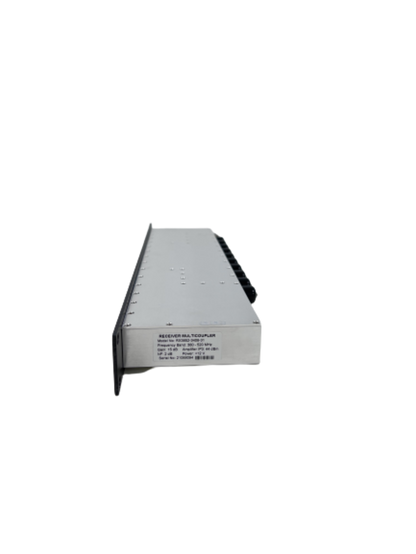

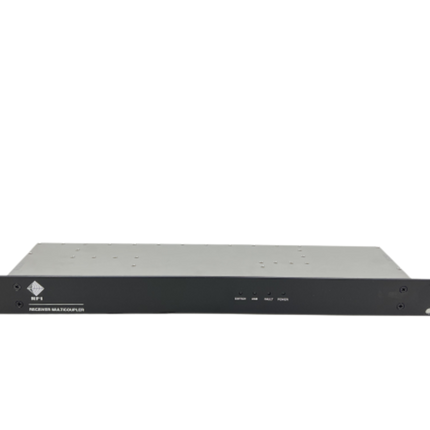

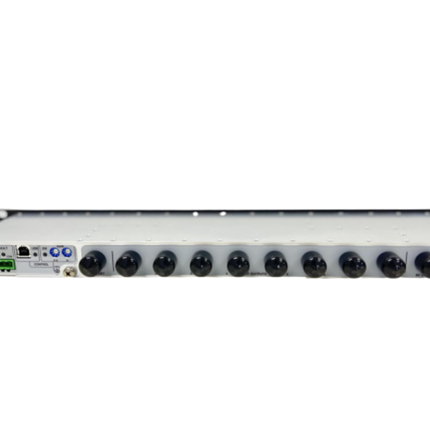

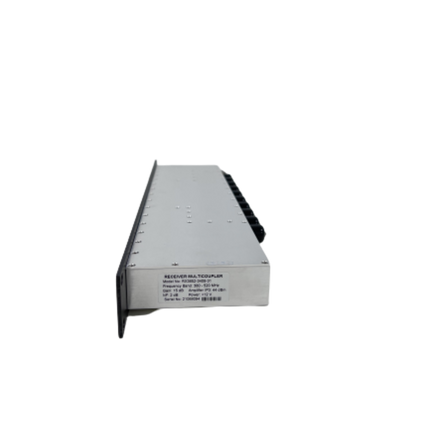

RFI Receiver Multicoupler 380-520 MHz (220-550 MHz) 8-128 Way 48 VDC N(F) 1RU
Used in both analogue and digital radio systems the receiver multicoupler utilises a low-noise, high 3OIP, redundant quadrature amplifier (LNA) design to enhance base station receiver performance. Outputs are provided for up to eight (8) receivers and an optional output to feed an expansion multicoupler. Expansion configurations are detailed in our Receiver Multicoupler Application
Features:
- Low Noise Figure LNA offering excellent 3OIP performance
- Auto-gain feature automatically restoring net system gain during partial amplifier failure
- Compatible with both analogue and digital technologies
- Manual or programmable gain setting
- Integral status monitoring and alarm outputs
- Broadband 380-520 MHz (220-550 MHz) operation
- Facilitates easy expansion up to 128 output ports
Note. A user-enabled ''Auto-Gain'' feature compensates net system gain to maintain optimum system performance during a partial LNA failure. The operating gain can be manually programmed via rotary switches or configured via the communications port.
Documents:
RFI RX3852-3408-31-48 Receiver Multicoupler - Datasheet
RFI Receiver Multicoupler - Quick Start Guide
RFI RX3852-3408-31-48 Receiver Multicoupler - User Manual
RFI Receiver Multicoupler - Application Note
