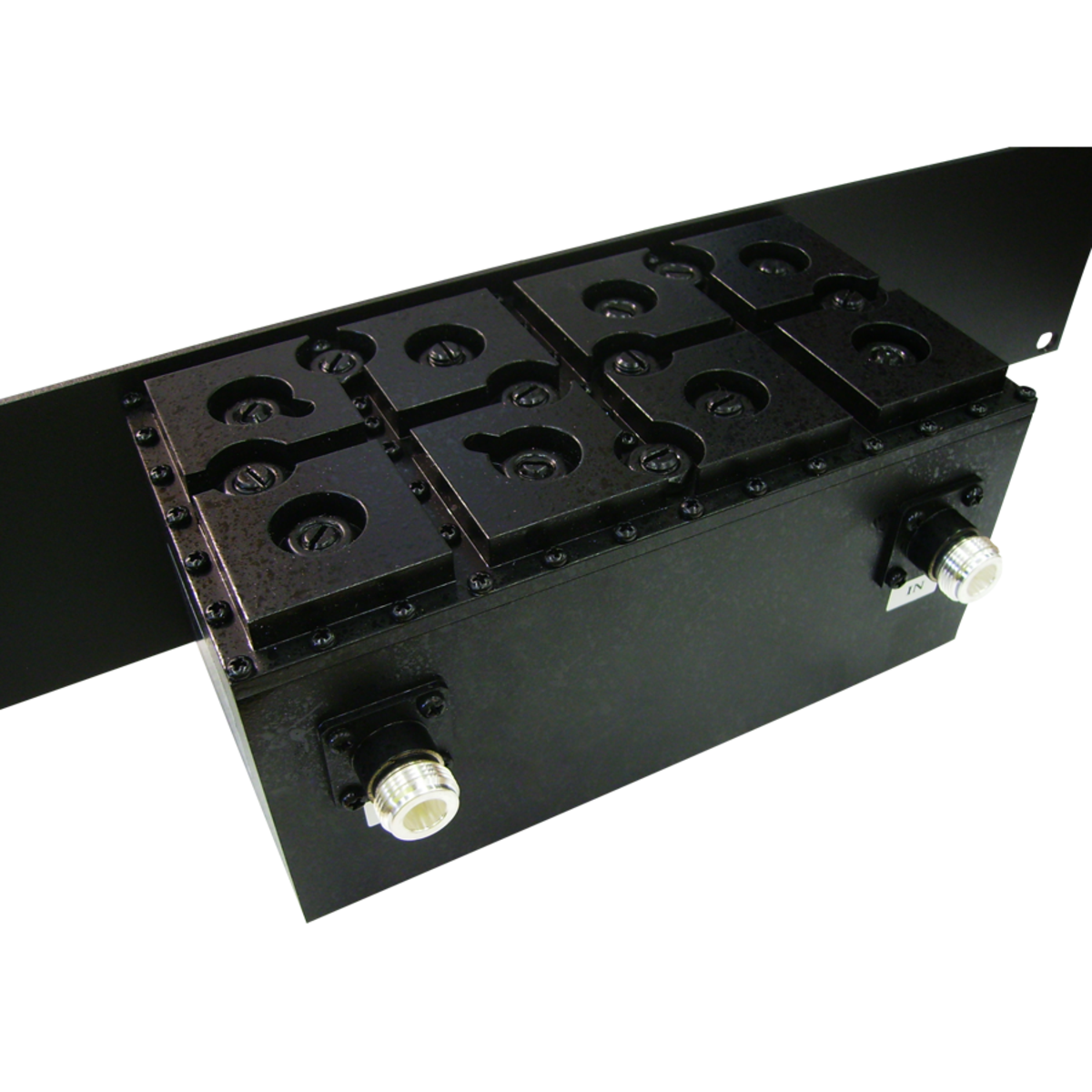

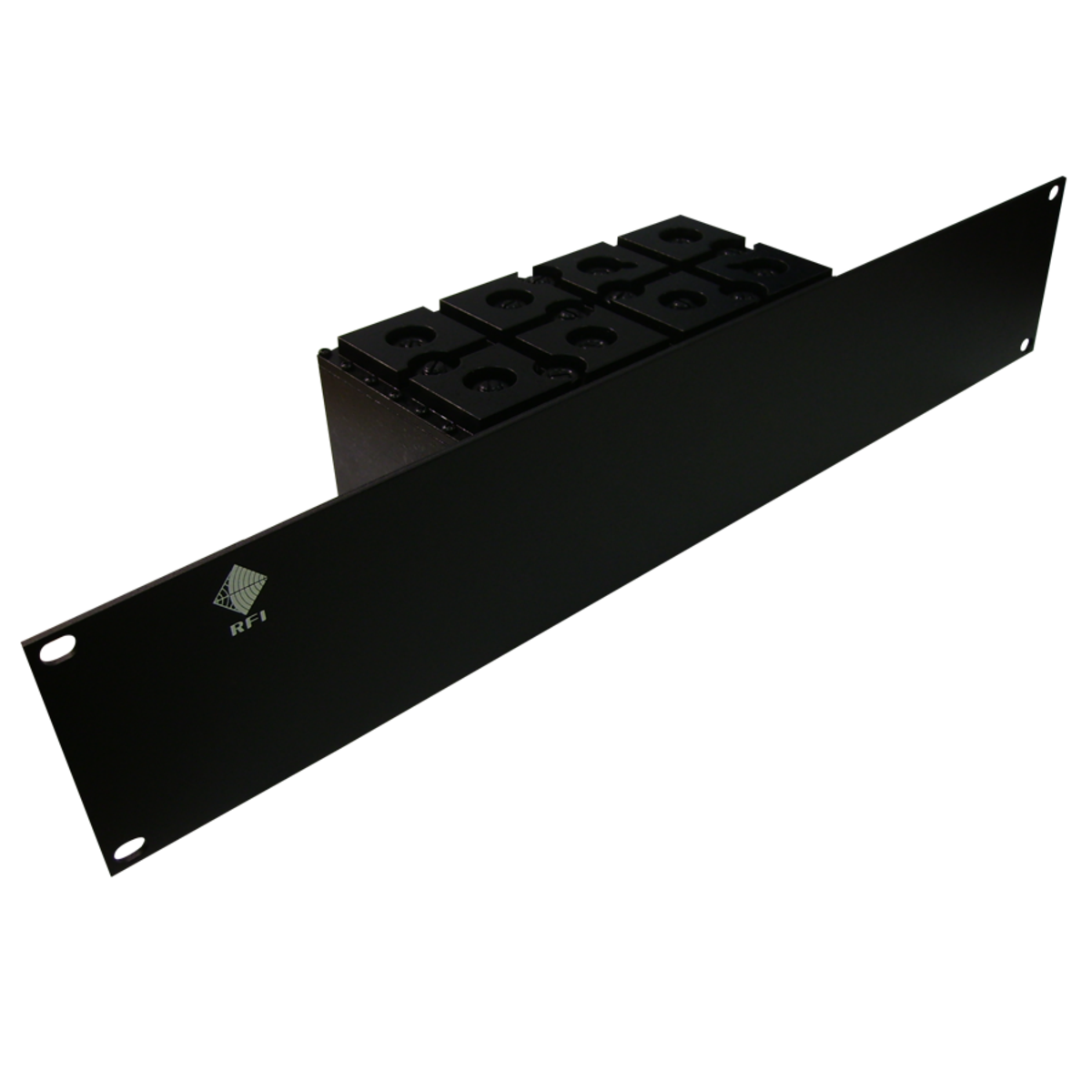

RFI RX4547-1803-32 Preselector Filter, Band-pass 4.5 MHz, 450-470 MHz, N-Female

    RFI RX4547-1803-32 Preselector Filter, Band-pass 4.5 MHz, 450-470 MHz, N-Female

      Product form
      Brand:
      Item ID:
      168072359
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      RX4547-1803-32

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI RX4547-1803-32 Preselector Band Pass Filter supporting 450-470 MHz frequency. Note: This product has been discontinued. Please consider alternative product with same specs: RFI RX4547-1801-32 Preselector Filter

      $1,617.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.
      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      RFI's range of compact multi-resonator milled aluminium band pass filters are ideal for use where space is restricted or at a premium and where a 19"rack mounting facility is available. DC grounding in the input/output ports provide natural voltage surge protection. The temperature stable resonators provide a wide operational temperature range ensuring important electrical specifications are maintained in extreme temperature conditions

      Product Features:

      • Typically Pass Band: 4.5 MHz
      • Low insertion loss and ripple
      • Sharp symmetrical skirt selectivity response
      • Compact milled aluminium filter block
      • 2RU 19"Rack mount front panel (detachable)
      • Wide operational temperature range

      Application Areas:

      • Receiver preselector filter to minimize interference.
      • Post-filtering for transmitter carriers and sub-bands (power rating dependent).
      • Mission-critical RF systems requiring precision filtering.
      • High-density RF sites where space is a constraint.

      In the Box:

      • 1 x RFI RX4547-1803-32 Preselector Filter, Band-pass 4.5 MHz, 450-470 MHz, N(F)

      Product Specifications

      MPN RX4547-1803-32
      Brands RFI
      Cavity filter type Band Pass
      Component type Milled Filter
      Finish Painted Black
      Frequency band UHF
      Frequency range mhz 450 - 470
      Height 8.89
      Insertion loss db 1.8dB (max)
      Length 48.3
      Mounting 2RU 19inch Rack mount front panel
      Temperature range -30o to +60o C / -22o to +140o F
      Width 9.7
