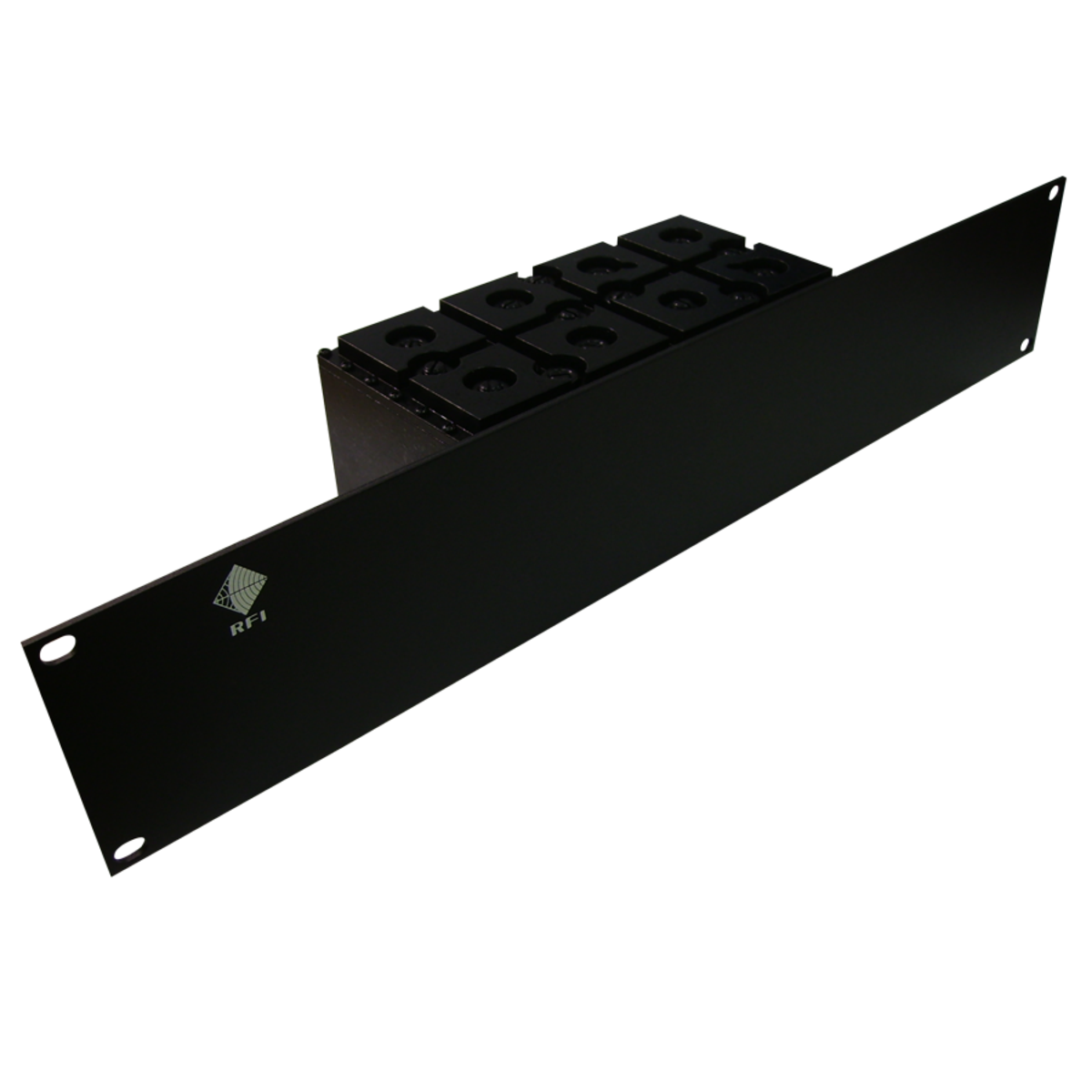

RFI UHF Preselector Filter, Band Pass, 470-500 MHz, 4.5 MHz BW, 2RU, N-Female

RFI UHF Preselector Filter, Band Pass, 470-500 MHz, 4.5 MHz BW, 2RU, N-Female

On backorder

Brand:
Item ID:
168030511
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
RX4750-1801-32
Send Request for Quote (RFQ) Discount Offers
RFI UHF Preselector Bandpass Filter is a high-performance RF filter designed for UHF applications within the 470-500 MHz range. This compact milled aluminium filter block ensures low insertion loss, sharp skirt selectivity, and excellent frequency stability. Its 2RU 19” rack-mountable front panel provides easy integration into existing RF infrastructure.
Regular price $1,616.00
Regular price $0.00 Sale price $1,616.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

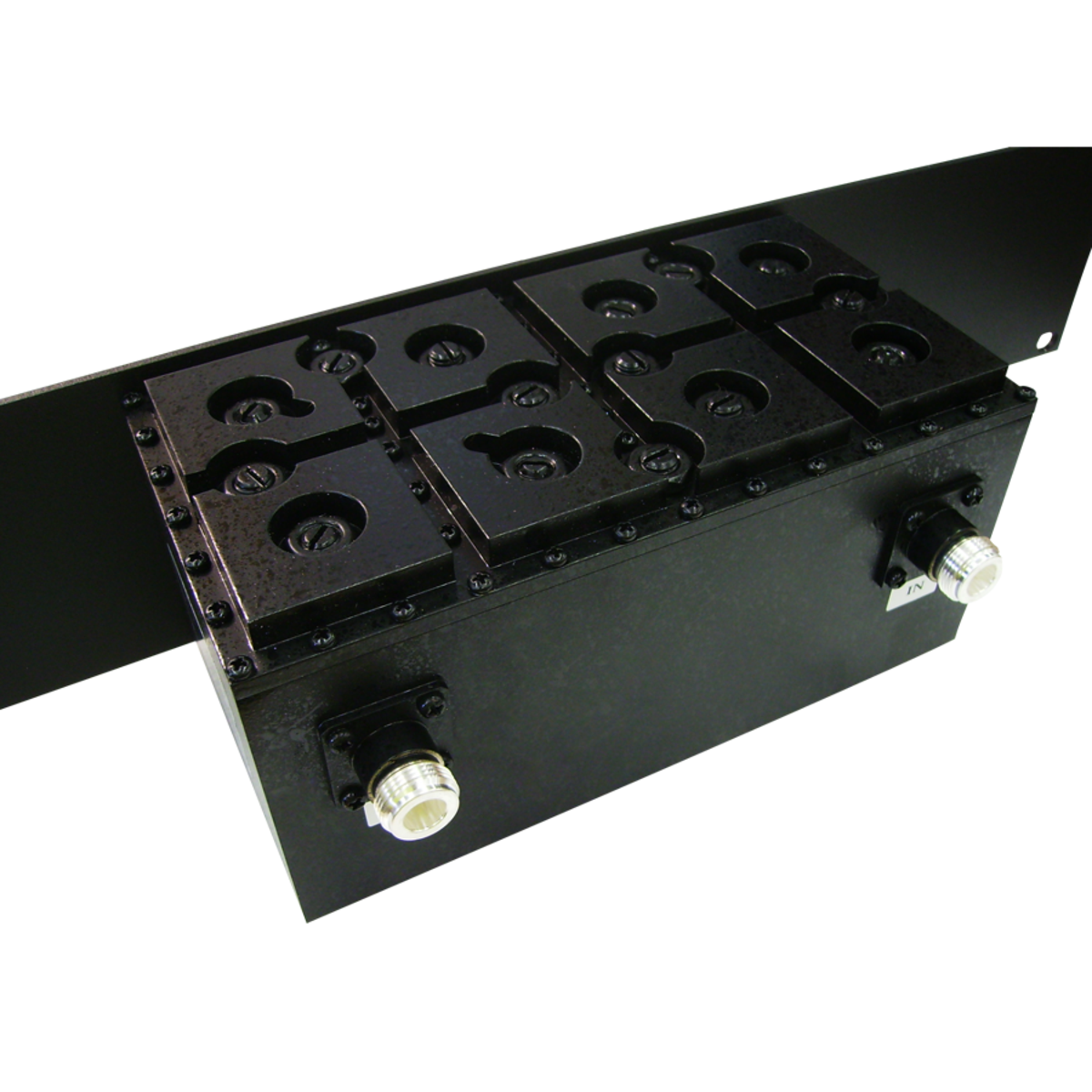

The RFI UHF Preselector Bandpass Filter is a high-performance RF filter designed for UHF applications within the 470-500 MHz range. Its compact, multi-resonator milled aluminum construction makes it ideal for space-constrained environments or installations requiring a 19” rack mount. With a symmetrically sharp skirt response and low passband insertion loss, this filter is well-suited as a preselector in receiver systems or as a post-filter for cleaning up transmitter carriers or Tx sub-bands (power rating dependent). DC grounding at the input and output ports provides natural voltage surge protection, while temperature-stable resonators ensure consistent performance across a wide operational temperature range, even in extreme conditions.

Product Features:

  • This filter is optimized for the 470-500 MHz UHF band, providing high-quality signal filtering with a 4.5 MHz passband.
  • It features sharp symmetrical skirt selectivity.
  • With low insertion loss and ripple, it maintains signal integrity with minimal degradation.
  • It has a compact milled aluminum construction that ensures long-lasting performance.
  • The 2RU 19” rack-mount front panel is detachable, allowing for easy installation.
  • It operates reliably in a wide temperature range from -30ËšC to +60ËšC (-22ËšF to +140ËšF).

Application Areas:

  • Public safety and emergency communication systems.
  • Two-way radio and UHF repeater networks.
  • Broadcast and telecommunication infrastructure.
  • RF interference reduction in critical communication systems.

In the Box:

  • RFI RX4750-1801-32 UHF Preselector Bandpass Filter, 470-500 MHz, 4.5 MHz BW, N-Female.

Documents:

RFI RX4750-1801-32 Preselector Filter - Datasheet

Product Specifications

MPN RX4750-1801-32
Attenuation value 60 @ F0±7.25 MHz
Brands RFI
Cavity filter type Band Pass
Compliance RoHS
Finish Painted Black
Frequency band UHF
Frequency range mhz 470 - 500
Height 8.89
Impedance ohm 50
In band ripple db 1
Input power cw max 100W
Insertion loss db 1.8dB (max)
Length 9.7
Mounting 2RU 19inch Rack mount front panel
Pass bandwidth 4.5 MHz
Return loss vswr 18 dB (min) / 1.29:1 (max)
Temperature range c -30 to +60
Width 48.3
