Enhance connectivity on the move with vehicle antennas for cellular, Wi-Fi, GPS, and VHF/UHF. Techwave provides rugged, low-profile mounts for cars, trucks, RVs and fleet vehicles.
CD93 Series are high performance elevated feed mobile antennas which can be used in virtually any mounting position. When gutter or roof bar mounted high above a vehicle, it delivers a full 6.5 dB of gain over a 1/4 wave whip. This model CD93-70-70 operates over frequency range 450 MHz to 470 MHz and does not include any cable or connector.
The RFI CD93 Antenna is a UHF Elevated Feed Mopole with a 6.5 dB gain, designed for the 400 MHz to 420 MHz frequency range. The model CD93-65-73 is fitted with a 5m RG58 cable with no connector attached.
The RFI CD93 Antenna is a UHF Elevated Feed Mopole with a 6.5 dB gain, designed for the 400 MHz to 420 MHz frequency range. The model CD93-65-70 is not fitted with any cable or connector. If you need a cable version, please consider model CD93-65-73.
CD91-72-73 is a UHF antenna with 4 dB gain supporting 490-520 MHz frequency range, specifically designed for use on emergency service vehicles to elevate a 1/4 wave antenna above lights and sirens. Comes with a 5m RG58 cable. Compatible with any 50 Ohm connector suitable for RG58 cables.
RFI CD91-72-70 is a UHF antenna with 4 dB gain supporting 490-520 MHz frequency range, specifically designed for use on emergency service vehicles to elevate a 1/4 wave antenna above lights and sirens. CD91-72-70Â antenna comes without any cable and connector.
(Available pre-terminated with 5m RG58 (8058) cable. Use -73 to replace -70 suffix for RG58 cables.)
RFI CD91-71-70 is a UHF antenna with 4 dB gain supporting 470-490 MHz frequency range, specifically designed for use on emergency service vehicles to elevate a 1/4 wave antenna above lights and sirens. CD91-71-70Â antenna comes without any cable and connector.
(Available pre-terminated with 5m RG58 (8058) cable. Use -73 to replace -70 suffix for RG58 cables.)
CD91-70-73 is a UHF antenna with 4 dB gain supporting 450-470 MHz frequency range, specifically designed for use on emergency service vehicles to elevate a 1/4 wave antenna above lights and sirens. Comes with a 5m RG58 cable. Compatible with any 50 Ohm connector suitable for RG58 cables.
RFI CD91-70-70 is a UHF antenna with 4 dB gain supporting 450-470 MHz frequency range, specifically designed for use on emergency service vehicles to elevate a 1/4 wave antenna above lights and sirens. CD91-70-70 Â antenna comes without any cable and connector.
(Available pre-terminated with 5m RG58 (8058) cable. Use -73 to replace -70 suffix for RG58 cables.)
CD91-65-73 is a UHF antenna with 4 dB gain supporting 400-420 MHz frequency range, specifically designed for use on emergency service vehicles to elevate a 1/4 wave antenna above lights and sirens. Comes with a 5m RG58 cable. Compatible with any 50 Ohm connector suitable for RG58 cables.
RFI CD91-65-70 is a UHF antenna with 4 dB gain supporting 400-420 MHz frequency range, specifically designed for use on emergency service vehicles to elevate a 1/4 wave antenna above lights and sirens. CD91-65-70Â antenna comes without any cable and connector.
(Available pre-terminated with 5m RG58 (8058) cable. Use -73 to replace -70 suffix for RG58 cables.)

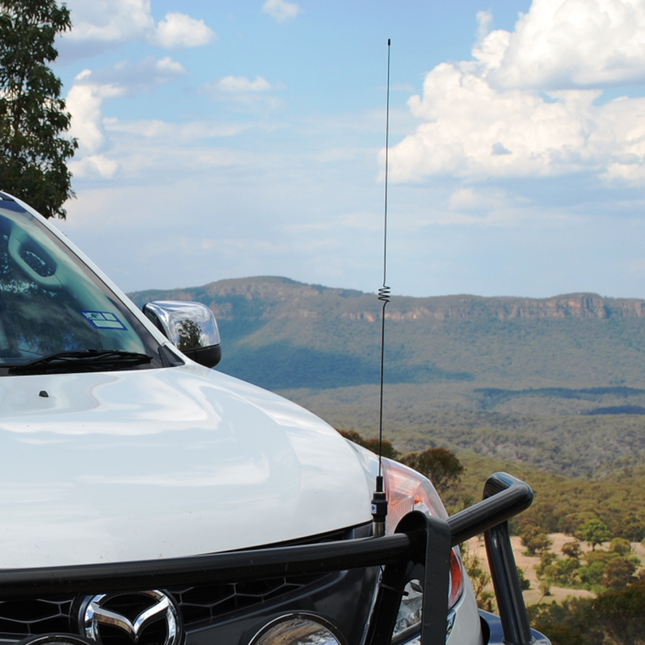

The RFI CD63 UHF CB Mopole Antenna (477 MHz) with MBC 5m (no connector) offers versatile mounting options, allowing installation in various positions such as vehicle mirrors, gutters, or roof bar mounts.

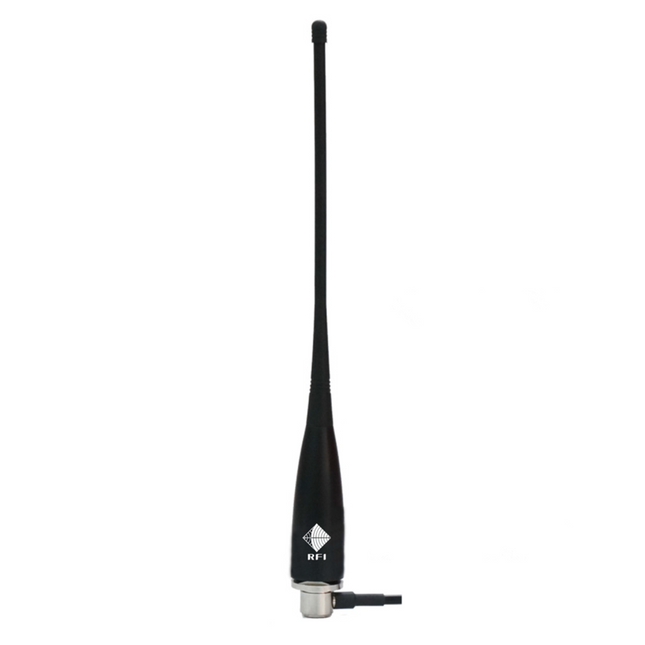

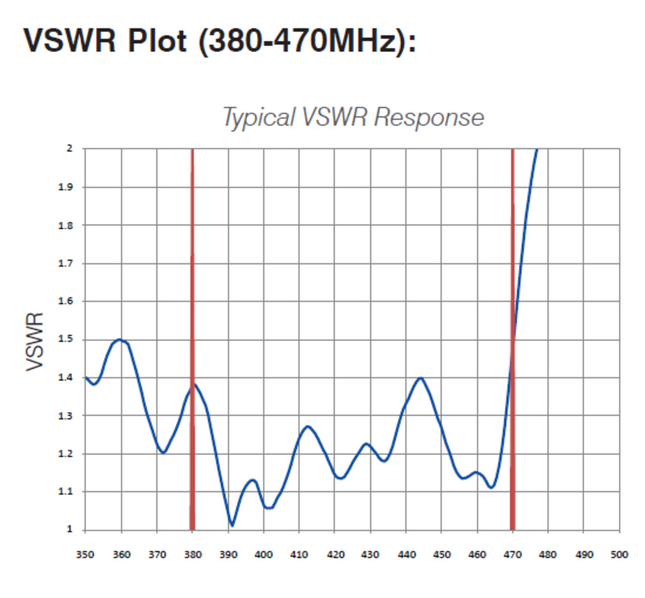

The RFI CD61 Antenna is a UHF Broadband Mopole Antenna with a 4 dB gain, designed for the 380-470 MHz frequency range. It features an MBC Base and comes with a 5m cable without a connector, offering versatile and reliable performance for UHF applications
RFI CD61-3847-00 UHF Broadband Mopole Antenna Whip delivers 4 dB of gain across the 380–470 MHz frequency range, offering outstanding performance for emergency services, fleet vehicles, and commercial UHF systems.
The RFI CD51-68-73 UHF 4 dB Mopole Antenna is a versatile, high-performance antenna designed for UHF communication in the 450–520 MHz range. Built with a stud-mount design and supplied with a 5-meter cable (no connector).
The RFI CD51-68-70 UHF 4 dB Mopole Antenna is a high-performance, low-profile solution for UHF communication in the 450–520 MHz range. Designed without a cable and with a stud-mount configuration, it delivers excellent omnidirectional performance through its low angle radiation pattern.
The RFI CD51-68-53 UHF 4 dB Mopole Antenna is a high-performance, versatile solution designed for UHF applications within the 450–520 MHz range. Supplied with a 5-meter cable and MBC base (no connector), this antenna delivers reliable omnidirectional signal coverage and enhanced communication performance.
The RFI CD51-68-50 UHF 4 dB Mopole Antenna is a versatile, high-performance antenna designed for UHF applications operating between 450 and 520 MHz. With its MBC base and no included cable, it provides a convenient and rugged solution for installations requiring flexible coaxial configurations. When mounted on a vehicle gutter or similar elevated surface, it delivers a strong omnidirectional signal due to its low-angle dipole radiation pattern resulting in superior coverage compared to standard â…-wave whips.
The RFI CD51-65-70 UHF 4 dB Mopole Antenna is a high-performance solution for UHF communications within the 380–440 MHz range. The CD51 series uses a flexible nylon whip, making it suitable for applications requiring durability and field-serviceable design.
RFI CD51-65-53 UHF Mopole Antenna is a high-performance, 4 dB gain antenna designed for reliable communication across the 380–440 MHz frequency range with a versatile end-fed design and patented feed assembly.
Note: This model does not include a connector. For field tuning, use the supplied tuning chart to achieve optimal VSWR within a 13 MHz bandwidth.
RFI CD51-65-50 UHF Mopole Antenna is a high-performance, 4 dB gain antenna designed for reliable communication across the 380–440 MHz frequency range with a versatile end-fed design and patented feed assembly.
Note: This model does not include a cable. For field tuning, use the supplied tuning chart to achieve optimal VSWR within a 13 MHz bandwidth.
RFI CD50-68-73 UHF Mopole Antenna is a high-performance, 4 dB gain antenna designed for reliable communication across the 450-520 MHz frequency range with a versatile end-fed design and patented feed assembly.
Note: This model does not include a connector. For field tuning, use the supplied tuning chart to achieve optimal VSWR within a 13 MHz bandwidth.
RFI CD50-68-70 UHF Mopole Antenna is a high-performance, 4 dB gain antenna designed for reliable communication across the 450-520 MHz frequency range with a versatile end-fed design and patented feed assembly.
Note: This model does not include a cable. For field tuning, use the supplied tuning chart to achieve optimal VSWR within a 13 MHz bandwidth.
RFI CD50-68-53 UHF Mopole Antenna is a high-performance, 4 dB gain antenna designed for reliable communication across the 450-520 MHz frequency range with a versatile end-fed design and patented feed assembly.
Note: This model does not include a connector. For field tuning, use the supplied tuning chart to achieve optimal VSWR within a 13 MHz bandwidth.
RFI CD50-65-70 UHF Mopole Antenna is a high-performance, 4 dB gain antenna designed for reliable communication across the 380–440 MHz frequency range with a versatile end-fed design and patented feed assembly.
Note: This model does not include a cable. For field tuning, use the supplied tuning chart to achieve optimal VSWR within a 13 MHz bandwidth.
